Shielded RJ45 Vertical Mount Blue Housing Customized PIN Length For IP Camera

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ522488-U011-BPF1
Minimum Order Quantity: 2000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Overview: Vertical RJ45 Jack THT Solder Positions / Loaded Contacts: 8P8C
Orientation: Vertical ( Top Entry ) Color-Resin: Blue
LED Option: None PCB Locator: Yes
PCB Retaining Post: T Post PCB Recommended Thickness: 1.6mm
High Light:

vertical rj45 connector

,

rj45 vertical connector

,

Shielded RJ45 Vertical Mount


Product Description

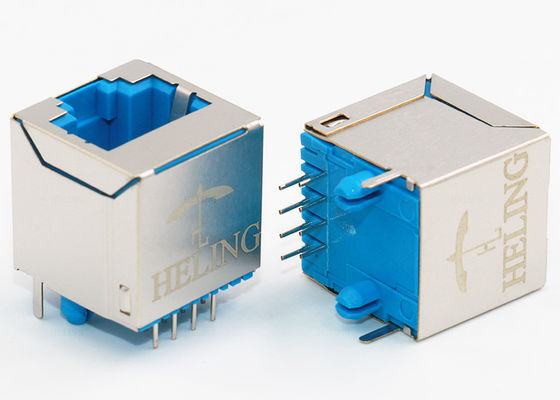

Shielded Vertical RJ45 Jack Blue Housing Through Hole Mounting For IP Camera



  • HELING Vertical RJ45 Jack Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.
  • Our vertical RJ45 Jacks are widely used for networking products, such as NIC, HUB, SWITCH, ROUTER, and Work station like PC system, printer, server etc.
  • Free Samples
  • Providing customized services as below and all technical supports you may need:
  •      1, Customized orientation
  •      2, Customized PIN length

  •      3, Customized structure, says tab-up or tab down, different size, different color

  •      4, Customized LED indicator

  •      5, Customized logo printing on your RJ45



Description:

  •     Model number:  MJ522488-U011-BPF1
  •     Connector Type: Vertical RJ45 Jack
  •     Positions/ loads of contacts : 8P8C ( RJ45 , Ethernet )
  •     Numbers of Ports : 1 x 1
  •     PCB mounting type : Through Hole solder
  •     Latch Orientation: Vertical (Top Entry)



Specfication:



Part Number:  MJ522488-U011-BPF1
Product Family: Vertical RJ45 Jack
Overview: RJ45 1x1 8P8C Vertical RJ45 Jack
Description: 8 core 1x1 ports Vertical RJ45 Jack connector, Shielded
  Vertical, Operating temprature range: -40℃-70℃

General
Series: Vertical RJ45 Jack
Numbers of ports: 1x1
Orientation: Vertical (top entry)
Pin type: THT solder
Positions/ Loaded contacts 8P8C
Latch: Tab up
LEDs: None
Shielded: YES
Jack Height: 13.4mm
Magnetic: Yes
Performance category:

Cat 5

Power over Ethernet(PoE): Non-PoE
Physical
Color-Resin: Blue
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 6u"/15u"/30u" optional
Net Weight: TBA
PCB: FR4
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
Turns Ratio RX: 1CT:1CT
Turns Ratio TX: 1CT:1CT
Configuration RX: T,C
Configuration TX: T,C
RoHS compliant YES, RoHS AND Halogen-Free
Electrical
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES
