EMI Gasket Right Angle RJ45 Connector , PCB 8P8C Right Angle RJ45 Coupler

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ88-U111-RVS1
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 2 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Series: Right Angle RJ45 Connector Keywords: RJ45 Female Connector
Application: PCB Orientation: Right Angle
Shielded: Yes Position / Loaded Contacts: 8p8c
Performance Catagory: Cat 5 Usage: For Networking And Datacom Equipment
High Light:

rj45 right angle adapter

,

90 degree rj45 connector


Product Description

EMI Gasket Right Angle RJ45 Connector Blue Housing 8P8C PCB Jack Socket

Description:

  •     Model number:  MJ88-U111-RVS1
  •     Series: Right Angle RJ45 Jack
  •     Gender:  RJ45 Female Connector
  •     Positions/ loads of contacts : 8P8C ( RJ45 , Ethernet )
  •     Mounting type : Through hole
  •     Latch Orientation: Right Angle (Side Entry)
  •     LED indicator : None

Specfication:


Part Number: MJ88-U111-RVS1
Product Family:Right Angle RJ45 Connector
Overview:RJ45 1x1 8P8C Right Angle RJ45 Connector Blue Housing
Description:8 core 1x1 ports Right Angle RJ45 Jack connector, Shielded with EMI Finger
 Operating temprature range: -40℃-70℃

General
Series:Right Angle RJ45 Connector Jack
Numbers of ports:1x1
Orientation:Right Angle ( Side entry)
Pin type:THT solder
Positions/ Loaded contacts8P8C
Latch:Tab up
LEDs:None
Shielded:Shielded
Jack Height:13.4mm
Magnetic:None
Performance category:

Cat 5

Power over Ethernet(PoE):Non-PoE
Physical
Color-Resin:Blue
Durability(mating cycles max):750
MaterialMetal:Phosphor bronze
Resin:Liquid crystal polymer
Plating termination:Gold Flash
Plating min- mating:6u"/15u"/30u" optional
Net Weight:TBA
PCB:FR4
PCB locator:Yes
PCB retention:None
PCB retaining post:T-post
PCB Thickness- Recommended1.6mm
Packaging type:Tray
Temperature range:-40℃-70℃
RoHS compliantYES, RoHS AND Halogen-Free
Electrical
Current rating:1.5AMPS
Voltage rating:125V AC
Insulation Resistance:500MΩ mini
Withstand voltage:1000V RMS 60Hz
Contact Resistance:50mΩ Max
Grounding to PCB:YES
Grounding to Panel:YES

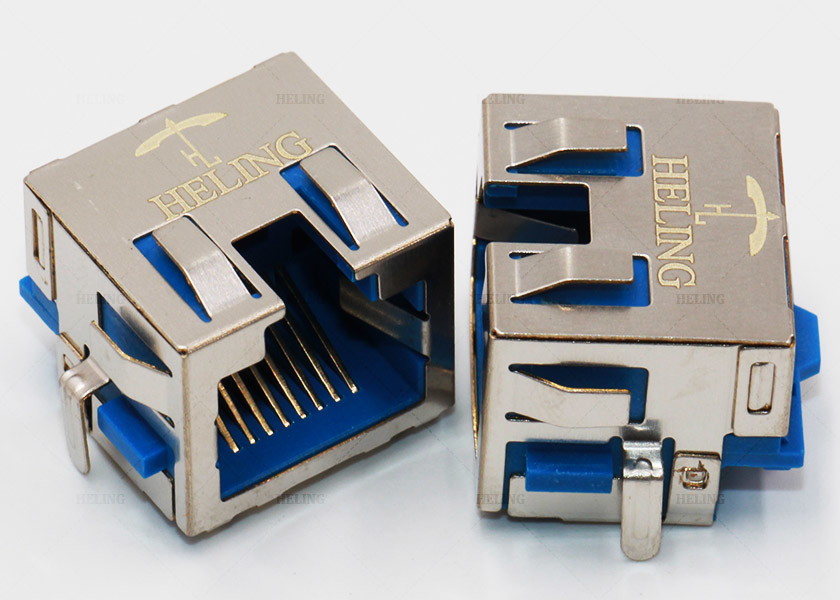

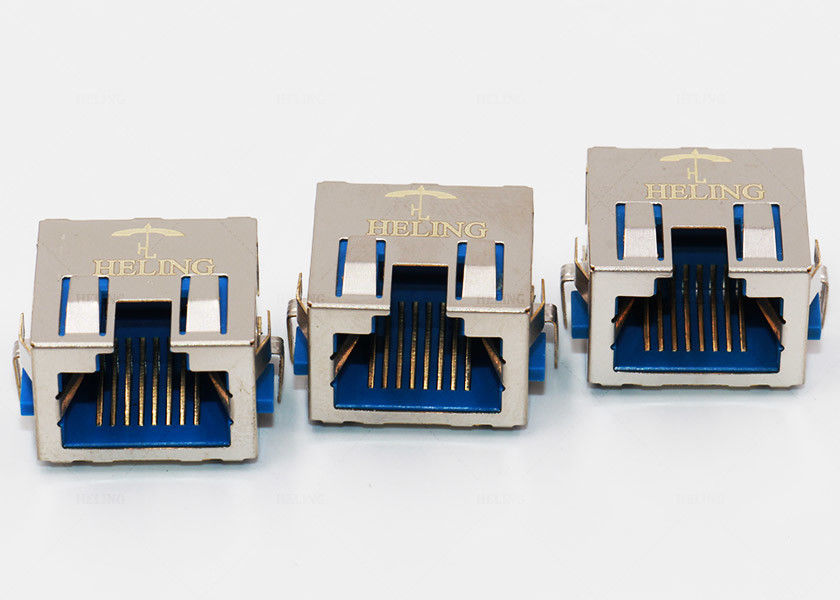

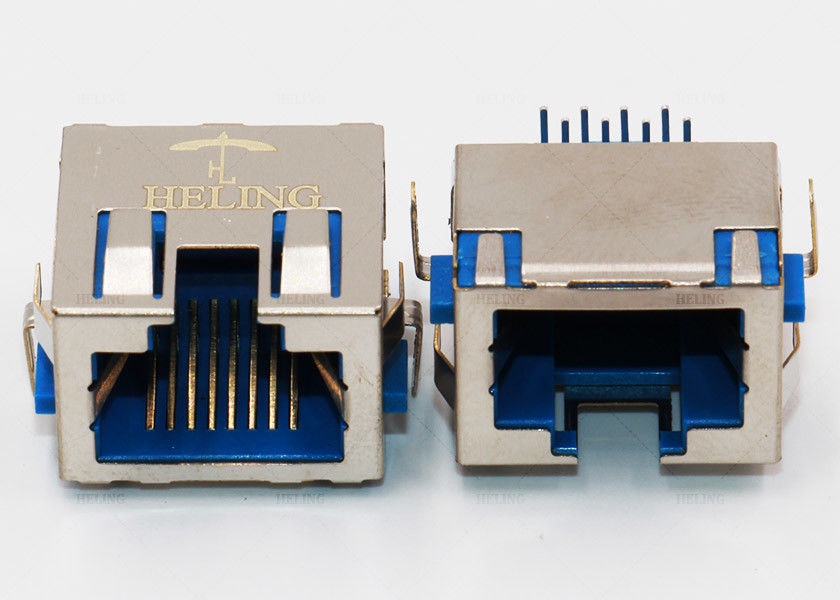

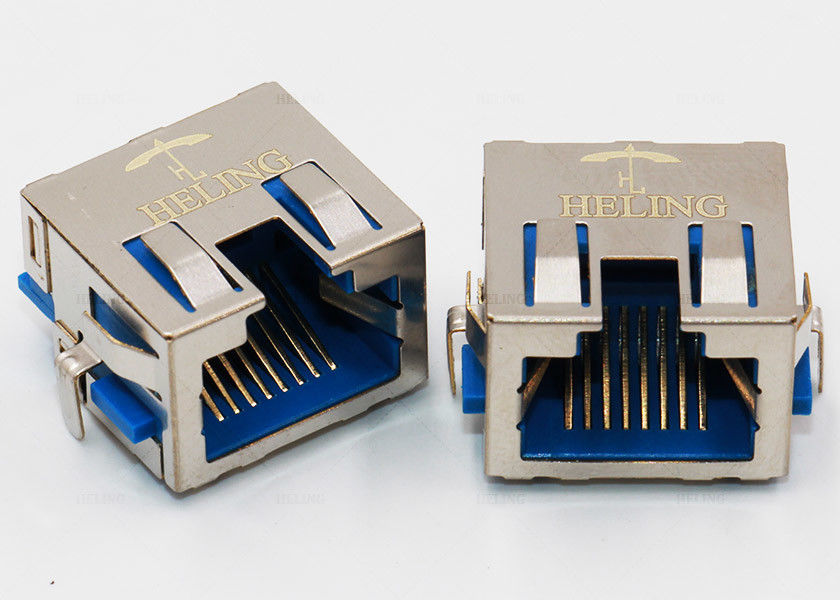

EMI Gasket Right Angle RJ45 Connector , PCB 8P8C Right Angle RJ45 Coupler 0EMI Gasket Right Angle RJ45 Connector , PCB 8P8C Right Angle RJ45 Coupler 1EMI Gasket Right Angle RJ45 Connector , PCB 8P8C Right Angle RJ45 Coupler 2EMI Gasket Right Angle RJ45 Connector , PCB 8P8C Right Angle RJ45 Coupler 3


Documents:

*** CLICK HERE TO DOWNLOAD THE DRAWING


HELING Right Angle RJ45 Connector Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.
Our Right Angle RJ45 Connector are widely used in:

  • Internet Data Center
  • Web Servers
  • Switches Hubs
  • Work Station
  • Network Information Center
  • Mother board
  • Unmanaged Switches
  • Consumer devices


Product Images :

EMI Gasket Right Angle RJ45 Connector , PCB 8P8C Right Angle RJ45 Coupler 4
EMI Gasket Right Angle RJ45 Connector , PCB 8P8C Right Angle RJ45 Coupler 5
