1 x 8 Ports Harmonica Ganged Modular Jack Connector RJ45 For Ethernet Switches

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ5904-B018-RN1
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 2 weeks
Payment Terms: T / T, Paypal
Supply Ability: 3000 K Pieces Per Month
Detail Information
Series: 1 X 8 Ports RJ45 Modular Jacks Numbers Of Ports: 8
Port Matrix Configuration: 1 X 8 Orientation: Right Anlge(Side Entry)
Positions/Loaded Contacts: 8P8C Latch: Tab Down
Pin Type: THT Solder RoHS Compliant: Yes, RoHS And Halogen-Free
High Light:

rj45 female coupler

,

rj45 female jack


Product Description

1 x 8 Ports Harmonica Ganged RJ45 Modular Jacks Connector for Ethernet Switches

Our 1 x 8 Ports Harmonica Ganged RJ45 Modular Jacks are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded, with EMI Finger/LED options.

Heling operates and specializes in the provision of 1 x 8 Ports Harmonica Ganged RJ45 Modular Jacks networking connectivity alongside solutions in the field of telecom and datacom; Heling offers a broad range of 1 x 8 Ports Harmonica Ganged RJ45 Modular Jacks for your data and signal transmissions.

Our 1 x 8 Ports Harmonica Ganged RJ45 Modular Jacks are widely used in Communication equipment, Telephone, Network Equipment, Hub, Switch, Router, Modem, PC mainboard etc.

1 x 8 Ports Harmonica Ganged RJ45 Modular Jacks Connector for Ethernet Switches
Part Number: MJ5904-B018-RN1
Product Family:1*N Multi-Port RJ45 Connector
Overview:RJ45 1 x 8 ports 8P8C lan Jacks
Description:


1 x 8 ports RJ45 connector, Side Entry,Unshielded
Operating temprature range: -40℃-70℃

General
Series:1*N Multi-Port RJ45 lan jack
Numbers of ports:1 x 8
Orientation:Right Angle
Pin type:THT solder
Positions/ Loaded contacts:8P8C
Latch:Tab Up
LEDs:None
Shielded:None
Jack Height:/
Magnetic:None
Performance category:/
Power over Ethernet(PoE):Non-PoE
Physical
Color-Resin:Black
Durability(mating cycles max):750
MaterialMetal:Phosphor bronze
Resin:Liquid crystal polymer
Plating mating:Gold over Nickel
Plating termination:Gold Flash
Plating min- mating:1u"/3u"/6u"/15u"/30u"/50u"  optional
Net Weight:TBA
PCB:FR4
PCB locator:Yes
PCB retention:None
PCB retaining post:T-post
PCB Thickness- Recommended1.6mm
Packaging type:Tray
Temperature range:-40℃-70℃
Turns Ratio RX:1CT:1CT
Turns Ratio TX:1CT:1CT
Configuration RX:T,C
Configuration TX:T,C
RoHS compliant:YES, RoHS AND Halogen-Free
Electrical
Current rating:1.5AMPS
Voltage rating:125V AC
Insulation Resistance:500MΩ mini
Withstand voltage:1000V RMS 60Hz
Contact Resistance:50mΩ Max
Grounding to PCB:YES
Grounding to Panel:YES

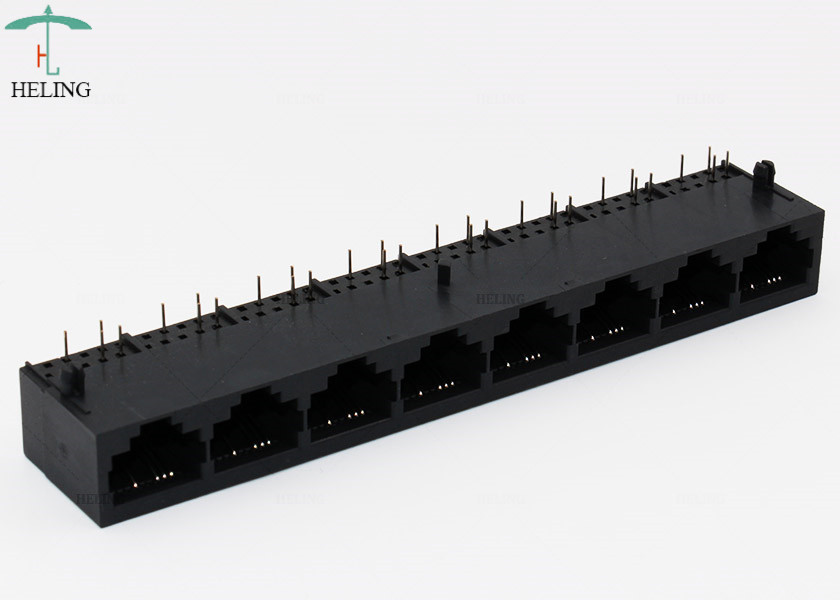

1 x 8 Ports Harmonica Ganged Modular Jack Connector RJ45 For Ethernet Switches 0
1 x 8 Ports Harmonica Ganged Modular Jack Connector RJ45 For Ethernet Switches 1
