Hub Obsolete RJ45 Female Connector Through Hole 1 x 2 Ports

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ5688-B012-RS1
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray as your request
Delivery Time: Stock or 2 weeks
Payment Terms: T / T, Paypal
Supply Ability: 5000 K Pieces Per Month
Detail Information
Keywords: Modular Jacks Shielded Shell Material: Brass
Brand Name: HELING / OEM Gender: Female
Port Configuration: 1 X 2 Entry Location: Side Entry
Latch Orientation: Tab Up Packaging Method: Tray
High Light:

rj45 female coupler

,

rj45 female jack


Product Description

Through Hole Network Modular Jack 1 x 2 Ports RJ45 Connector for Hub Obsolete​

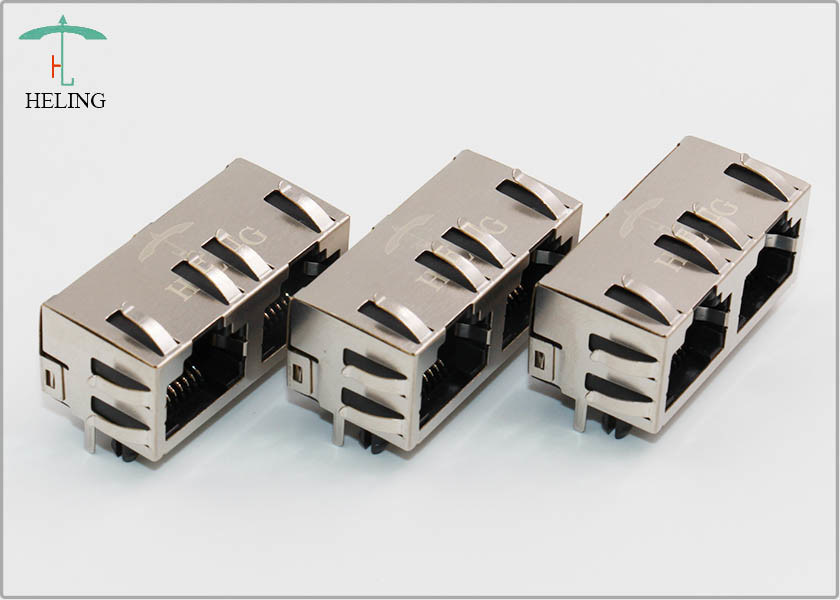

Hub Obsolete RJ45 Female Connector Through Hole 1 x 2 Ports 0

Hub Obsolete RJ45 Female Connector Through Hole 1 x 2 Ports 1



Description:

  •     Model number:  MJ5688-B012-RS1
  •     Series: RJ45 Multiple Port Connectors
  •     Gender:  RJ45 Female Jack
  •     Positions/ loads of contacts : 8P8C ( RJ45 , Ethernet )
  •     Mounting type : Through hole
  •     Latch Orientation: Right Angle (Side Entry)
  •     LED indicator : Yes

Specfication:



Part Number:  MJ5688-B012-RS1
Product Family: RJ45 Multiple Port Connectors
Overview: RJ45 1 x 2 8P8C Right Angle RJ45 Connector Black Housing
Description: 8 core 1x2 ports Right Angle RJ45 Jack connector, Shielded
  Operating temprature range: -40℃-70℃

General
Series: RJ45 Multiple Port Connectors
Numbers of ports: 1x2
Orientation: Right Angle ( Side entry)
Pin type: THT solder
Positions/ Loaded contacts 8P8C
Latch: Tab up
LEDs: Yes
Shielded: Shielded
Jack Height: 13.4mm
Magnetic: None
Performance category:

Cat 5

Power over Ethernet(PoE): Non-PoE
Physical
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating termination: Gold Flash
Plating min- mating: 6u"/15u"/30u" optional
Net Weight: TBA
PCB: FR4
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
RoHS compliant YES, RoHS AND Halogen-Free
Electrical
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES





HELING Right Angle RJ45 Connector Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.
