| Place of Origin: | China |
|---|---|
| Brand Name: | DGHELING |
| Certification: | ISO9001 , RoHS , UL , CE , REACH |
| Model Number: | MJ3288-B011-HRL21 |
| Minimum Order Quantity: | 2000 |
| Price: | Preferential & Competitive |
| Packaging Details: | Tray / Tape & Reel as your request |
| Delivery Time: | Stock or 2 weeks |
| Payment Terms: | T / T， Paypal |
| Supply Ability: | 1,000K Pieces Per Month |
| Color: | Black | Connector Type: | RJ45 8P8C |
|---|---|---|---|
| Pin: | 8pin | Port: | 1 Port |
| Number Of Contacts: | 8 | Free Sample: | Available |
| Shield: | Yes | ||
| High Light: | rj45 female coupler,rj45 female jack |
||

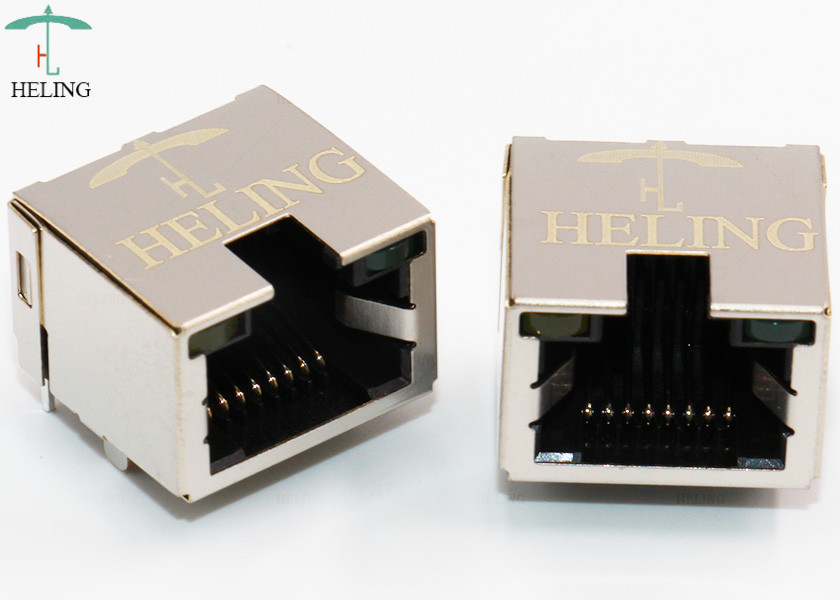

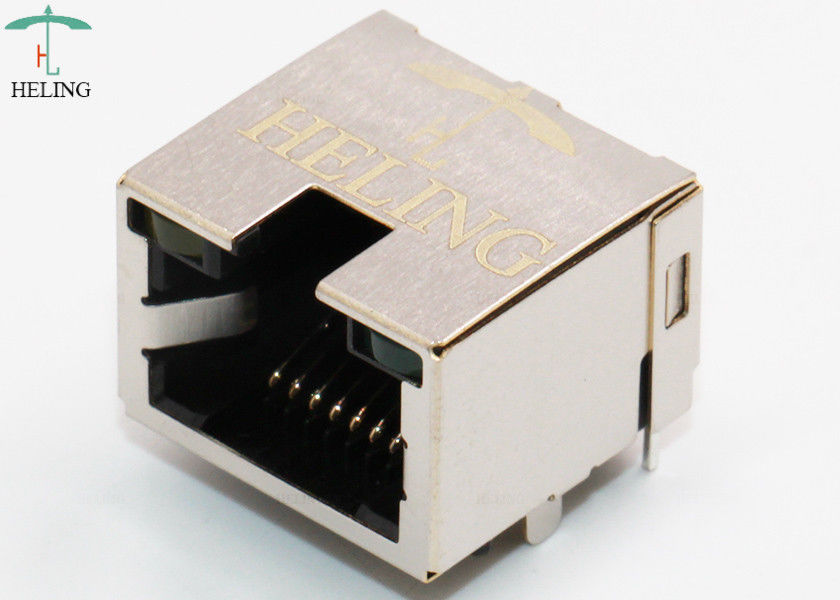

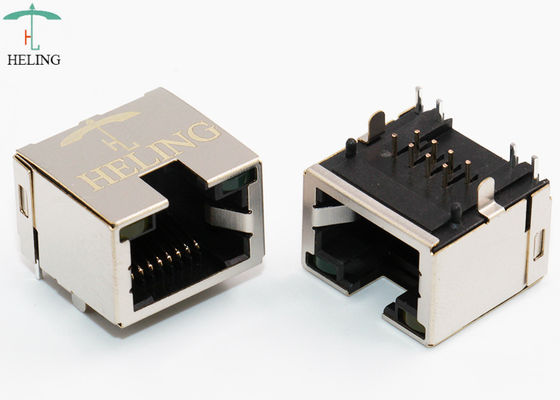

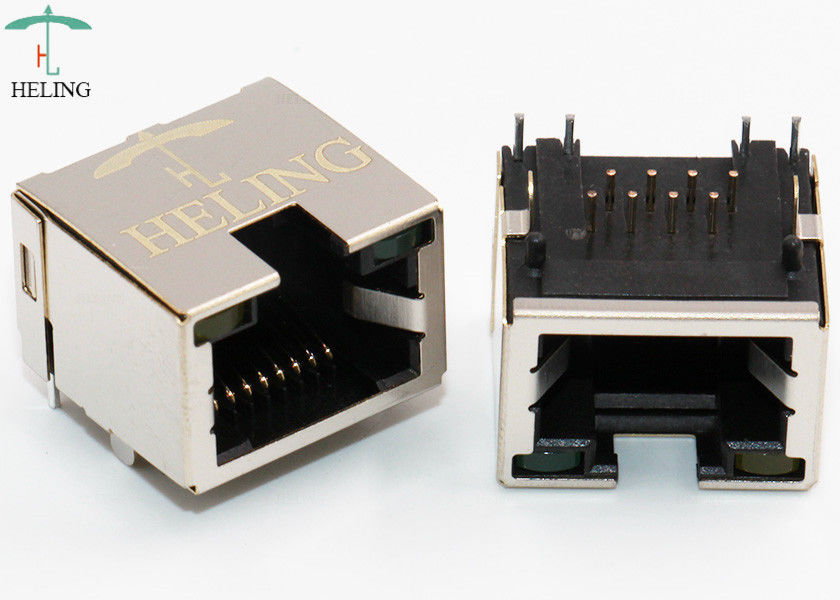

Shielded RJ45 Plug Connector Female Modular Jacks 8P8C with LED for VOIP Gateway Setup
Our RJ45 Plug Connector are widely used in Communication equipment, Telephone, Network Equipment, Hub, Switch, Router, Modem, PC mainboard etc.
Heling operates and specializes in the provision of RJ45 Plug Connector networking connectivity alongside solutions in the field of telecom and datacom; Heling offers a broad range of RJ45 Plug Connector for your data and signal transmissions.
Our RJ45 Plug Connector are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded, with EMI Finger/LED options.
| Single Port RJ45 Connector Jack CAT 5E CAT 6 for Lan Adapter MJ3288-B011-HRL21 | |||||||
| Part Number: | MJ3288-B011-HRL21 | ||||||
| Product Family: | Single Port RJ45 Connector | ||||||
| Overview: | RJ45 1x1 ports 8P8C Jacks | ||||||
| Description: | 1x1 ports RJ45 connector, Side Entry,Shielded,with LED | ||||||
| Operating temprature range: -40℃-70℃ | |||||||
| General | |||||||
| Series: | Right Angle RJ45 Jack | ||||||
| Numbers of ports: | 1x1 | ||||||
| Orientation: | Right Angle | ||||||
| Pin type: | THT solder | ||||||
| Positions/ Loaded contacts: | 8P8C | ||||||
| Latch: | Tab Up | ||||||
| LEDs: | Yes | ||||||
| Shielded: | YES | ||||||
| Jack Height: | 11.3mm | ||||||
| Magnetic: | None | ||||||
| Performance category: | / | ||||||
| Power over Ethernet(PoE): | Non-PoE | ||||||
| Physical | |||||||
| Color-Resin: | Black | ||||||
| Durability(mating cycles max): | 750 | ||||||
| Material | Metal: | Phosphor bronze | |||||
| Resin: | Liquid crystal polymer | ||||||
| Plating mating: | Gold over Nickel | ||||||
| Plating termination: | Gold Flash | ||||||
| Plating min- mating: | 1u"/3u"/6u"/15u"/30u"/50u" optional | ||||||
| Net Weight: | TBA | ||||||
| PCB: | FR4 | ||||||
| PCB locator: | Yes | ||||||
| PCB retention: | None | ||||||
| PCB retaining post: | T-post | ||||||
| PCB Thickness- Recommended | 1.6mm | ||||||
| Packaging type: | Tray | ||||||
| Temperature range: | -40℃-70℃ | ||||||
| Turns Ratio RX: | 1CT:1CT | ||||||
| Turns Ratio TX: | 1CT:1CT | ||||||
| Configuration RX: | T,C | ||||||
| Configuration TX: | T,C | ||||||
| RoHS compliant: | YES, RoHS AND Halogen-Free | ||||||
| Electrical | |||||||
| Current rating: | 1.5AMPS | ||||||
| Voltage rating: | 125V AC | ||||||
| Insulation Resistance: | 500MΩ mini | ||||||
| Withstand voltage: | 1000V RMS 60Hz | ||||||
| Contact Resistance: | 50mΩ Max | ||||||
| Grounding to PCB: | YES | ||||||
| Grounding to Panel: | YES | ||||||
