| Place of Origin: | China |
|---|---|
| Brand Name: | DGHELING |
| Certification: | ISO9001 , RoHS , UL , CE , REACH |
| Model Number: | MJ3288-B011-HRN1 |
| Minimum Order Quantity: | 3000 |
| Price: | Preferential & Competitive |
| Packaging Details: | Tray / Tape & Reel as your request |
| Delivery Time: | Stock or 4 weeks |
| Payment Terms: | T / T， Paypal |
| Supply Ability: | 1,000K Pieces Per Month |
| Business Type: | Manufacturer | Number Of Contacts: | 8 |
|---|---|---|---|
| Free Sample: | Available | Shielding: | Non-shielded Or Shielded |
| Operating Temperature: | -40℃-70℃ | Pin: | 8pin |
| High Light: | rj45 female coupler,rj45 female jack |
||
Unshielded Black 8P8C Modular RJ45 Connectors Ethernet Jacks for PC Card Without LED
Description:
Specfication:
| Part Number: | MJ3288-B011-HRN1 | ||||||
| Product Family: | Right Angle RJ45 Connector | ||||||
| Overview: | RJ45 1x1 8P8C Right Angle RJ45 Connector Black Color | ||||||
| Description: | 8 core 1x1 ports Right Angle RJ45 Jack connector, Unshielded | ||||||
| Operating temprature range: -40℃-70℃ | |||||||
| General | |||||||
| Series: | RJ45 Single color | ||||||
| Numbers of ports: | 1x1 | ||||||
| Orientation: | Right Angle ( Side entry) | ||||||
| Pin type: | THT solder | ||||||
| Positions/ Loaded contacts | 8P8C | ||||||
| Latch: | Tab up | ||||||
| LEDs: | Yes | ||||||
| Shielded: | None | ||||||
| Jack Height: | 13.4mm | ||||||
| Magnetic: | None | ||||||
| Performance category: |
Cat 5 |
||||||
| Power over Ethernet(PoE): | Non-PoE | ||||||
| Physical | |||||||
| Color-Resin: | Black | ||||||
| Durability(mating cycles max): | 750 | ||||||
| Material | Metal: | Phosphor bronze | |||||
| Resin: | Liquid crystal polymer | ||||||
| Plating termination: | Gold Flash | ||||||
| Plating min- mating: | 6u"/15u"/30u" optional | ||||||
| Net Weight: | TBA | ||||||
| PCB: | FR4 | ||||||
| PCB locator: | Yes | ||||||
| PCB retention: | None | ||||||
| PCB retaining post: | T-post | ||||||
| PCB Thickness- Recommended | 1.6mm | ||||||
| Packaging type: | Tray | ||||||
| Temperature range: | -40℃-70℃ | ||||||
| RoHS compliant | YES, RoHS AND Halogen-Free | ||||||
| Electrical | |||||||
| Current rating: | 1.5AMPS | ||||||
| Voltage rating: | 125V AC | ||||||
| Insulation Resistance: | 500MΩ mini | ||||||
| Withstand voltage: | 1000V RMS 60Hz | ||||||
| Contact Resistance: | 50mΩ Max | ||||||
| Grounding to PCB: | YES | ||||||
| Grounding to Panel: | YES | ||||||
HELING Right Angle RJ45 Connector Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.
Our Right Angle RJ45 Connector are widely used in:

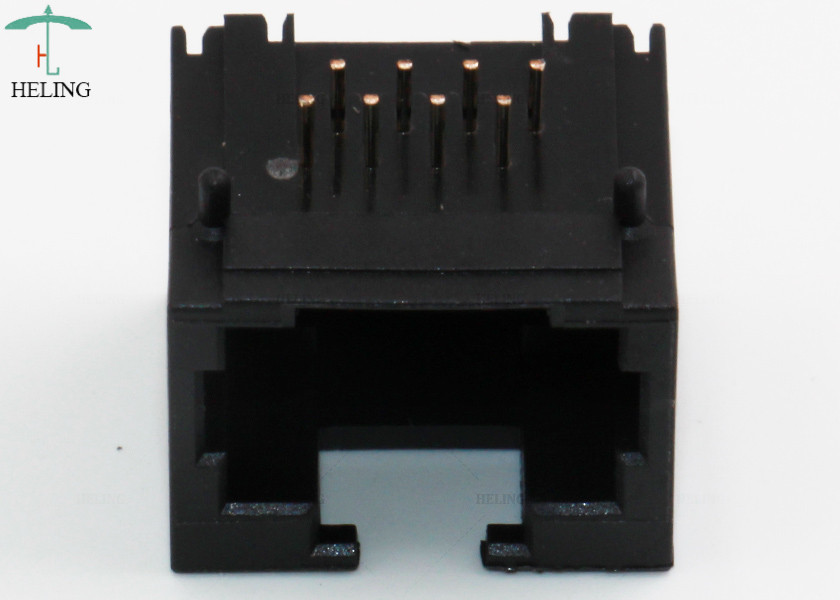

Product Images :
