| Place of Origin: | China |
|---|---|
| Brand Name: | DGHELING |
| Certification: | ISO9001 , RoHS , UL , CE , REACH |
| Model Number: | MJ5608-G014-HRN2 |
| Minimum Order Quantity: | 2000 |
| Price: | Preferential & Competitive |
| Packaging Details: | Tray / Tape & Reel as your request |
| Delivery Time: | Stock or 4 weeks |
| Payment Terms: | T / T， Paypal |
| Supply Ability: | 300 K Pieces Per Month |
| Numbers Of Ports: | 4 | Port Matrix Configuration: | 1x4 |
|---|---|---|---|
| RoHS Compliant: | Yes, RoHS And Halogen-Free | Type: | Cat5 Cat5e Cat6 Cat6e Rj45 Crystal Plug |
| Color: | Customized | Material: | ABS/PBT/PA66/PA46 |
| Port: | 1*1/1*2/1*3/1*4/1*5/1*6/1*8 | ||
| High Light: | rj45 female coupler,rj45 female jack |
||
Multi-port RJ45 Modular Plug 1 x 4 Right Angle Connector for Network xDSL Application
Our 1x4 Multi-port RJ45 Connector are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded, with EMI Finger/LED options.
Heling operates and specializes in the provision of 1x4 Multi-port RJ45 Connector networking connectivity alongside solutions in the field of telecom and datacom; Heling offers a broad range of 1x4 Multi-port RJ45 Connector for your data and signal transmissions.
Our 1xN Multi-port RJ45 Connector are widely used in Communication equipment, Telephone, Network Equipment, Hub, Switch, Router, Modem, PC mainboard etc.
| Multi-port RJ45 Modular Plug 1 x 4 Right Angle Connector for Network xDSL Application | |||||||
| Part Number: | MJ5608-G014-HRN2 | ||||||
| Product Family: | 1*4 Multi-Port RJ45 Connector | ||||||
| Overview: | RJ45 1x4 ports 8P8C Jacks | ||||||
| Description: | 1x4 ports RJ45 connector, Side Entry,Unshielded | ||||||
| Operating temprature range: -40℃-70℃ | |||||||
| General | |||||||
| Series: | 1*4 Multi-Port RJ45 Connector | ||||||
| Numbers of ports: | 1x4 | ||||||
| Orientation: | Right Angle | ||||||
| Pin type: | THT solder | ||||||
| Positions/ Loaded contacts: | 8P8C | ||||||
| Latch: | Tab Up | ||||||
| LEDs: | None | ||||||
| Shielded: | YES | ||||||
| Jack Height: | 13.2mm | ||||||
| Magnetic: | None | ||||||
| Performance category: | / | ||||||
| Power over Ethernet(PoE): | Non-PoE | ||||||
| Physical | |||||||
| Color-Resin: | Grey | ||||||
| Durability(mating cycles max): | 750 | ||||||
| Material | Metal: | Phosphor bronze | |||||
| Resin: | Liquid crystal polymer | ||||||
| Plating mating: | Gold over Nickel | ||||||
| Plating termination: | Gold Flash | ||||||
| Plating min- mating: | 1u"/3u"/6u"/15u"/30u"/50u" optional | ||||||
| Net Weight: | TBA | ||||||
| PCB: | FR4 | ||||||
| PCB locator: | Yes | ||||||
| PCB retention: | None | ||||||
| PCB retaining post: | T-post | ||||||
| PCB Thickness- Recommended | 1.6mm | ||||||
| Packaging type: | Tray | ||||||
| Temperature range: | -40℃-70℃ | ||||||
| Turns Ratio RX: | 1CT:1CT | ||||||
| Turns Ratio TX: | 1CT:1CT | ||||||
| Configuration RX: | T,C | ||||||
| Configuration TX: | T,C | ||||||
| RoHS compliant: | YES, RoHS AND Halogen-Free | ||||||
| Electrical | |||||||
| Current rating: | 1.5AMPS | ||||||
| Voltage rating: | 125V AC | ||||||
| Insulation Resistance: | 500MΩ mini | ||||||
| Withstand voltage: | 1000V RMS 60Hz | ||||||
| Contact Resistance: | 50mΩ Max | ||||||
| Grounding to PCB: | YES | ||||||
| Grounding to Panel: | YES | ||||||

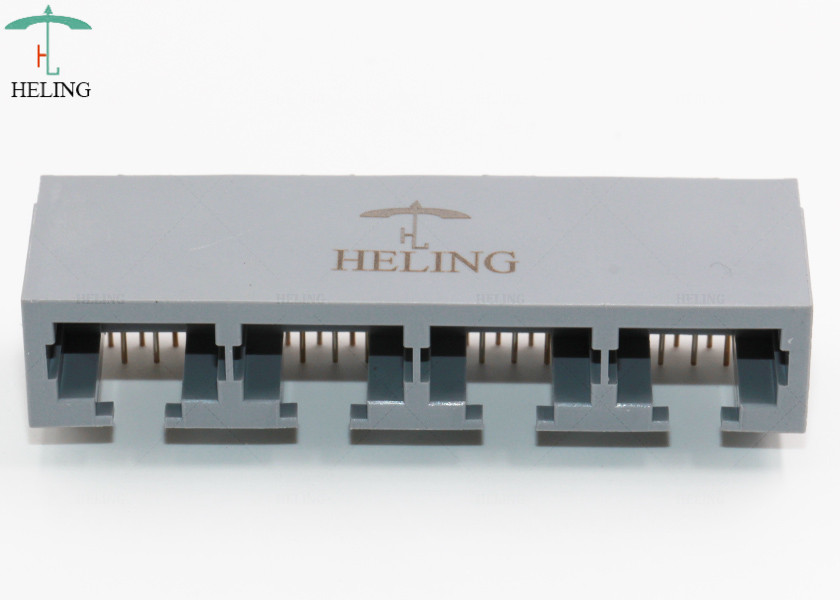

Product Picture:
