UL Modular 1x1 Port Shielded RJ45 Connector MJ522488-XX11-BPF1

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ522488-B011-BPF1
Minimum Order Quantity: 1000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 Weeks
Payment Terms: T/T Paypal
Supply Ability: 1000K Pieces Per Month
Detail Information
Name: Shielded RJ45 Connector Port: 1x1
High Light:

1x1 Port Shielded RJ45 Connector

,

Modular Shielded RJ45 Connector

,

1x1 Port RJ45 Modular Connector


Product Description

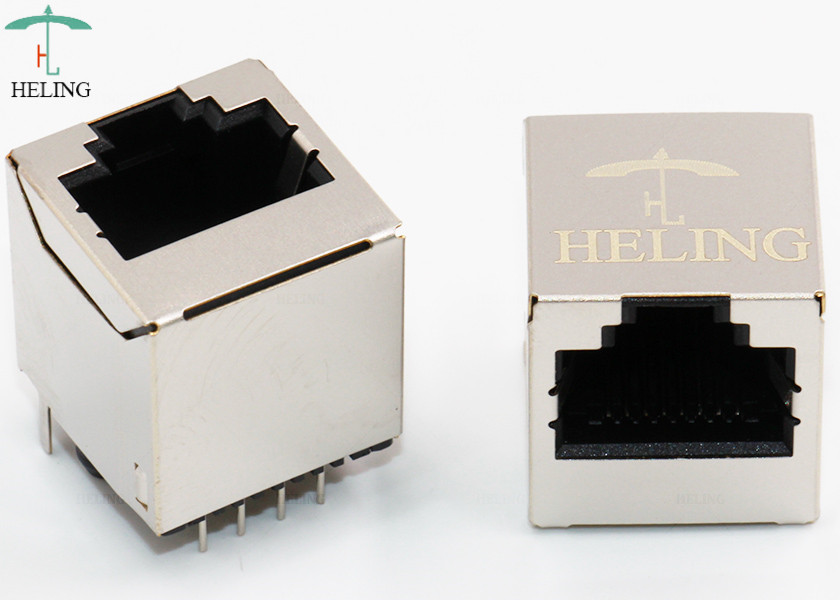

1x1 Port shielded RJ45 Jack 8p8c Connector  MJ522488-XX11-BPF1



HELING supply Modular Connector to Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi and so on.

Our Modular Connector are sold to more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of Modular Connector for our customers.

As a professional ISO 9001:2008 certified manufacturer, HELING is always engaged in R&D, production and marketing of Low profile / Mini / Waterproof Modular Connector alongside solutions, with emphasis on mass production and achieving the best price/quality ratio.


Standard modular jacks series
Available with or without LED
Single port, DIP type, Vertical, top-entry, shielded, H=16.28
8 or 10-pin signal pin versions are available
High performance for maximum EMI suppression

Material
Insulator: high-temp nylon flammability rating UL94V-0
Available in black, yellow, blue and red
Contacts: phosphor bronze with gold thickness options(6u”, 15u”, 30u”, 50u”) over 50u” minimum nickel on contact mating area

Electrical
Voltage rating: 125V AC(RMS)
Current rating: 1.5Amp
Contact resistance: 20mΩ max
Insulation resistance: 500MΩ min
Dielectric withstanding voltage: 1000V AC RMS 60Hz, 1 min

Mechanical
Durability: 750 mating & unmating cycles
Mated retention force: 7.7kg
Operating temperature: -40°C to +85°C


Our Advantage:

1 > Customer First , Superior Quality
Customer First , Superior Quality is our culture, we always believe that our own success is inextricably linked to our finest product quality and our customer's success.

2 > 6 Years Warranty
6 years warranty for all our Modular Connector

3 > 24-hour on-line service
All enquiries will be replied within 24 hours in working day.


Why choose us

1) Your inquiry related to our products or prices will be replied in 24hours.

2) Well-trained and experienced staffs to answer all your questions.
