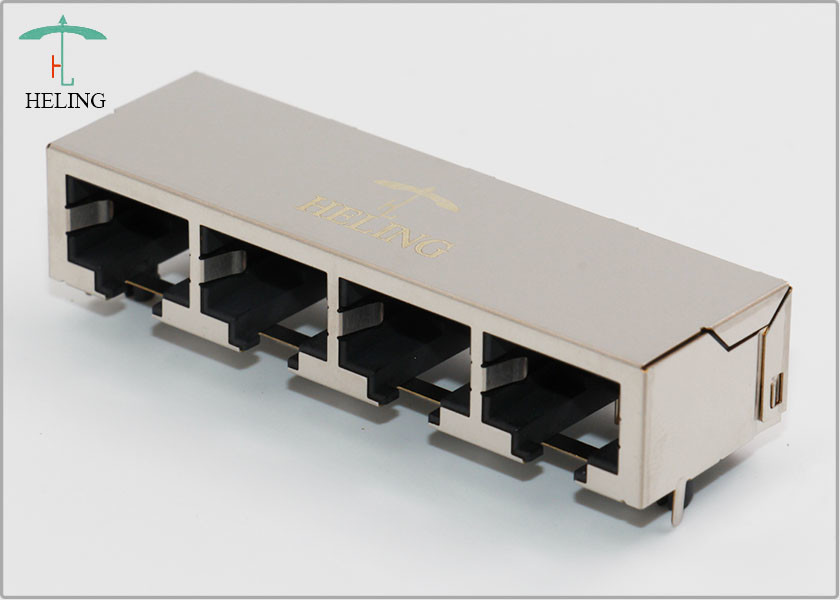

1 * 4 Multi - Port RJ45 Female Cat5 Connector Tab Down THT Terminal 12mm Jack Height

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ58B-B014-BPRD1
Minimum Order Quantity: 5000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Series: Cat5 PCB Connector Numbers Of Ports: 4
Port Matrix Configuration: 1x4 Orientation: Right Angle
Positions/Loaded Contacts: 8P8C Latch: Tab Down
Pin Type: THT Solder RoHS Compliant: Yes, RoHS And Halogen-Free
High Light:

rj45 female coupler

,

rj45 female socket


Product Description

Shielded 1*4 Multi-Port RJ45 Female Connector, Right Angle, Tab Down, THT Terminal, MJ58B-B014-BPRD1





Heling operates and specializes in the provision of RJ45 Female Connector networking connectivity alongside solutions in the field of telecom and datacom; Heling offers a broad range of RJ45 Female Connector for your data and signal transmissions.

Our RJ45 Female Connectors are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded, with transformers/EMI Finger/LED options.

Our RJ45 Female Connectors are widely used in Communication equipment, Telephone, Network Equipment, Hub, Switch, Router, Modem, PC mainboard etc.


Shielded 1*4 Multi-Port RJ45 Female Connector, Right Angle, Tab Down, THT Terminal, MJ58B-B014-BPRD1
Part Number:  MJ58B-B014-BPRD1
Product Family: RJ45 Female Connector
Overview: RJ45 1x4 ports 8P8C Jacks
Description:


1x4 ports RJ45 connector, Right Angle, Tab Down,Shielded
Operating temprature range: -40℃-70℃

General
Series: RJ45 Female Connector
Numbers of ports: 1x4
Orientation: Right angle(side entry)
Pin type: THT solder
Positions/ Loaded contacts: 8P8C
Latch: Tab Down
LEDs: None (Optional)
Shielded: YES
Jack Height: 12mm
Magnetic: None
Performance category: None
Power over Ethernet(PoE): Non-PoE
Physical
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 1u"/3u"/6u"/15u"/30u"/50u"  optional
Net Weight: TBA
PCB: FR4
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
Turns Ratio RX: /
Turns Ratio TX: /
Configuration RX: /
Configuration TX: /
RoHS compliant: YES, RoHS AND Halogen-Free
Electrical
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES
