Tab Up 1x1 8P8C RJ45 Connectors Low Profile Side Entry RoHS Compliant

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ88D-B011-KRVL206
Minimum Order Quantity: 5000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Series: Low Profile RJ45 Numbers Of Ports: 1
Port Matrix Configuration: 1x1 Orientation: Right Angle
Positions/Loaded Contacts: 8P8C Latch: Tab Up
Pin Type: THT Solder RoHS Compliant: Yes, RoHS And Halogen-Free
High Light:

low profile rj45 connector

,

low profile rj45 jack


Product Description

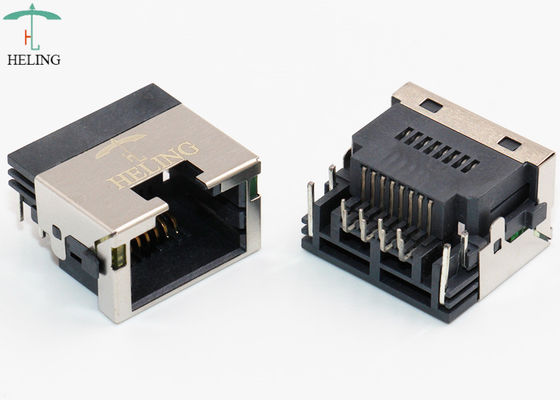

Low Profile RJ45 with LED, Offset, Right Angle, Tab Up, THT Solder, MJ88D-B011-KRVL206



Heling operates and specializes in the provision of Low Profile RJ45 networking connectivity alongside solutions in the field of telecom and datacom; Heling offers a broad range of Low Profile RJ45 for your data and signal transmissions.

Our Low Profile RJ45 are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded, with EMI Finger/LED options.

Our Low Profile RJ45 are widely used in Communication equipment, Telephone, Network Equipment, Hub, Switch, Router, Modem, PC mainboard etc.

Low Profile RJ45 with LED, Offset, Right Angle, Tab Up, THT Solder, MJ88D-B011-KRVL206
Part Number:  MJ88D-B011-KRVL206
Product Family: Low profile RJ45
Overview: RJ45 1x1 ports 8P8C Jacks
Description:


1x1 ports RJ45 connector, Right Angle, Tab Up,Shielded,Offset
Operating temprature range: -40℃-70℃

General
Series: Low profile RJ45
Numbers of ports: 1x1
Orientation: Right angle(side entry)
Pin type: THT solder
Positions/ Loaded contacts: 8P8C
Latch: Tab Up
LEDs: Yellow/Green (Optional)
Shielded: YES
Jack Height(Over PCB): 5.8mm
Magnetic: None
Performance category: /
Power over Ethernet(PoE): Non-PoE
Physical
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 1u"/3u"/6u"/15u"/30u"/50u"  optional
Net Weight: TBA
PCB: FR4
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
Turns Ratio RX: 1CT:1CT
Turns Ratio TX: 1CT:1CT
Configuration RX: T,C
Configuration TX: T,C
RoHS compliant: YES, RoHS AND Halogen-Free
Electrical
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES
