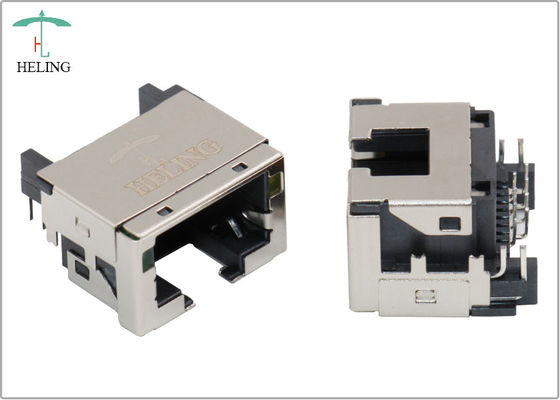

Single Port RJ45 Plug PCB Mount Tab Down RoHS Compliant With Yellow / Green LED

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ88B-B011-HRVL1
Minimum Order Quantity: 5000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Series: Cat5 PCB Connector Numbers Of Ports: 1
Port Matrix Configuration: 1x1 Orientation: Right Angle
Positions/Loaded Contacts: 8P8C Latch: Tab Down
Pin Type: THT Solder RoHS Compliant: Yes, RoHS And Halogen-Free
High Light:

pcb mount rj45 connector

,

rj45 board mount connector


Product Description

Offset/Overhangs PCB RJ45 Jack, Single Port, Tab Down, THT Terminal, MJ88B-B011-HRVL1

Heling operates and specializes in the provision of Offset/Overhangs PCB RJ45 Jack networking connectivity alongside solutions in the field of telecom and datacom; Heling offers a broad range of Offset/Overhangs PCB RJ45 Jack for your data and signal transmissions.

Our Offset/Overhangs PCB RJ45 Jack are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded, with transformers/EMI Finger/LED options.

Our Offset/Overhangs PCB RJ45 Jack are widely used in Communication equipment, Telephone, Network Equipment, Hub, Switch, Router, Modem, PC mainboard etc.


Offset/Overhangs PCB RJ45 Jack, Single Port, Tab Down, THT Terminal, MJ88B-B011-HRVL1
Part Number: MJ88B-B011-HRVL1
Product Family:Offset/Overhangs PCB RJ45 Jack
Overview:Offset/Overhangs PCB RJ45 1x1 ports 8P8C Jacks
Description:


1x1 ports RJ45 connector, Right Angle, Tab Down,Shielded
Operating temprature range: -40℃-70℃

General
Series:Offset/Overhangs PCB RJ45 Jack
Numbers of ports:1x1
Orientation:Right angle(side entry)
Pin type:THT solder
Positions/ Loaded contacts:8P8C
Latch:Tab Down
LEDs:Yellow/Green (Optional)
Shielded:YES
Jack Height:12mm
Magnetic:None
Performance category:None
Power over Ethernet(PoE):Non-PoE
Physical
Color-Resin:Black
Durability(mating cycles max):750
MaterialMetal:Phosphor bronze
Resin:Liquid crystal polymer
Plating mating:Gold over Nickel
Plating termination:Gold Flash
Plating min- mating:1u"/3u"/6u"/15u"/30u"/50u"  optional
Net Weight:TBA
PCB:FR4
PCB locator:Yes
PCB retention:None
PCB retaining post:T-post
PCB Thickness- Recommended1.6mm
Packaging type:Tray
Temperature range:-40℃-70℃
Turns Ratio RX:/
Turns Ratio TX:/
Configuration RX:/
Configuration TX:/
RoHS compliant:YES, RoHS AND Halogen-Free
Electrical
Current rating:1.5AMPS
Voltage rating:125V AC
Insulation Resistance:500MΩ mini
Withstand voltage:1000V RMS 60Hz
Contact Resistance:50mΩ Max
Grounding to PCB:YES
Grounding to Panel:YES
