PCB Mount Cat5 Multi Port 1 x 2 Shielded R / A 8P8C With Yellow / Green LED

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ5688-B012-RSL2
Minimum Order Quantity: 5000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 300 K Pieces Per Month
Detail Information
Product FamRj45 Multiple Port Connectorsily: Rj45 Multiple Port Connectors Color Resin: Black
Numbers Of Ports: 2 Port Matrix Configuration: 1 X 2
EMI Finger: Yes Performance Category: Cat 5
PIN Type: THT Solder Component Type: PCB Jack
High Light:

rj45 multi connector

,

rj45 multi port jack


Product Description

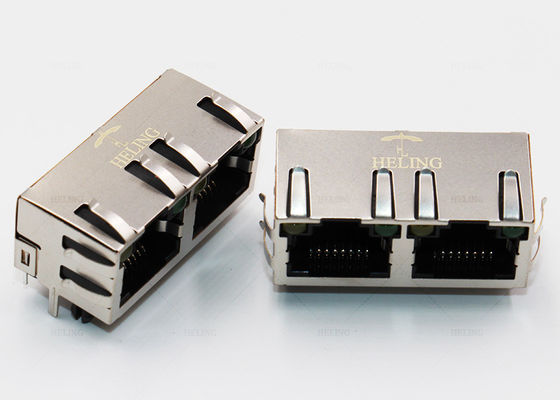

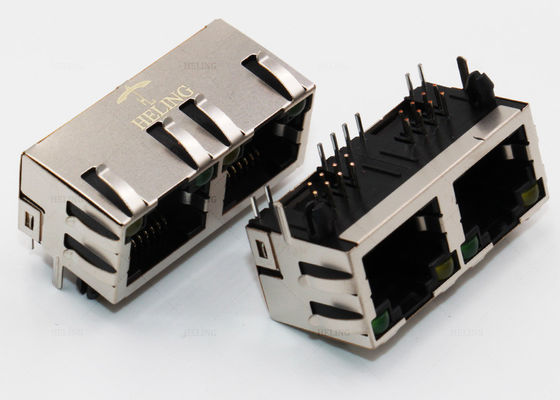

1 x 2 Shielded RJ45 Multiple Port Connectors R / A with Yellow Green LED



Quick details:

  • Model Number : MJ5688-B012-RSL2
  • RJ45 Multiple port Connector 1 x 2 Port
  • 8P8C
  • Tab up
  • LED : Green Yellow Indicator, can be changed as your request.
  • Performance Catagory : 1000 Mb
  • Thru-hole Mounting



Documents:

*** CLICK HERE TO DOWNLOAD THE DRAWING



Product Parameter :

Part Number:  MJ5688-B012-RSL2
Product Family: RJ45 Multiple port Connector
Overview: THT RJ45 Multiple port Connector 1x2 8P8C Modular Jack
Description: 8 core 1x2 ports RJ45 Multiple port Connector, with Shielded tabs
  Right Angle / Side Entry, THT , Operating temprature range: -40℃-70℃

General
Series: RJ45 Multiple port Connector
Numbers of ports: 1x2
Orientation: Right Angle (Side entry)
Pin type: THT solder
Positions/ Loaded contacts 8P8C
Latch: Tab up
LEDs: Yes
Shielded: YES
Jack Height: 9.75mm
Magnetic: None
Performance category: Cat 5
Power over Ethernet(PoE): Non-PoE
Physical
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 3u" / 6u"/15u"/30u" optional
Net Weight: TBA
PCB: FR4
PCB locator: Yes
PCB retention: None
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
RoHS compliant YES, RoHS AND Halogen-Free
Electrical
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES
