Black Housing Right Angle RJ45 Through Hole Connector Vertical Top Entry



Quick Details

  •     Model number:   MJ522288E-B011-PN1-L
  •     Series: RJ45 Through Hole Connector
  •     Gender:  RJ45 Female Connector
  •     Positions/ loads of contacts : 8P8C ( RJ45 , Ethernet )
  •     Mounting type : Through hole
  •     Latch Orientation: Vertical (Top Entry)
  •     LED indicator : None

Specfication:



Part Number:  MJ522288E-B011-PN1-L
Product Family: RJ45 Through Hole Connector
Overview: RJ45 1x1 8P8C Vertical RJ45 Connector Black Housing
Description: 8 core 1x1 ports Vertical RJ45 Jack connector, Unshielded, Through Hole
  Operating temprature range: -40℃-70℃

General
Series: RJ45 Through Hole Connector
Numbers of ports: 1x1
Orientation: Vertical ( Top entry)
Pin type: THT solder
Positions/ Loaded contacts 8P8C
Latch: Tab down
LEDs: None
Shielded: Unshielded
Jack Height: 13.4mm
Magnetic: None
Performance category:

Cat 5

Power over Ethernet(PoE): Non-PoE
Physical
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating termination: Gold Flash
Plating min- mating: 6u"/15u"/30u" optional
Net Weight: TBA
PCB: FR4
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
RoHS compliant YES, RoHS AND Halogen-Free
Electrical
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES





Documents:



*** CLICK HERE TO DOWNLOAD THE DRAWING





HELING Right Angle RJ45 Connector Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.

Our Right Angle RJ45 Connector are widely used in:

  • Internet Data Center
  • Web Servers
  • Switches Hubs
  • Work Station
  • Network Information Center
  • Mother board
  • Unmanaged Switches
  • Consumer devices



Product Images :

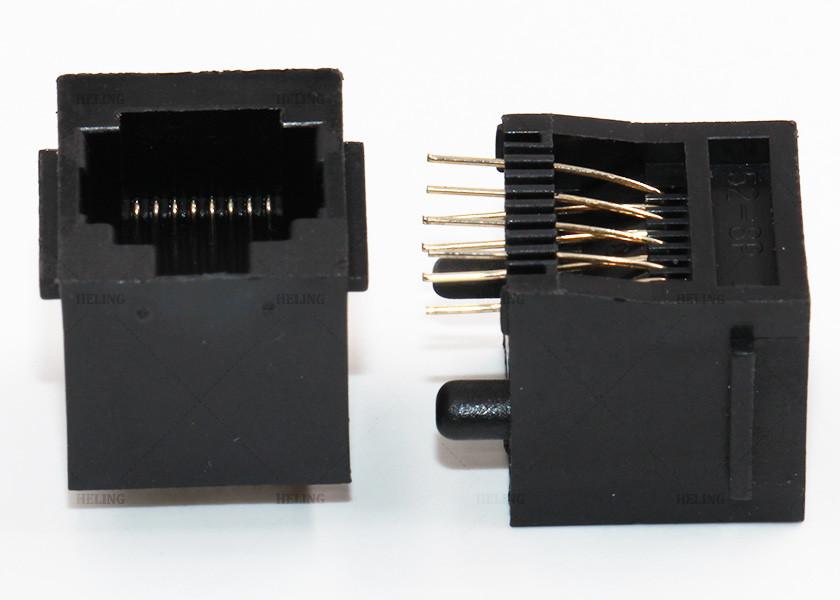

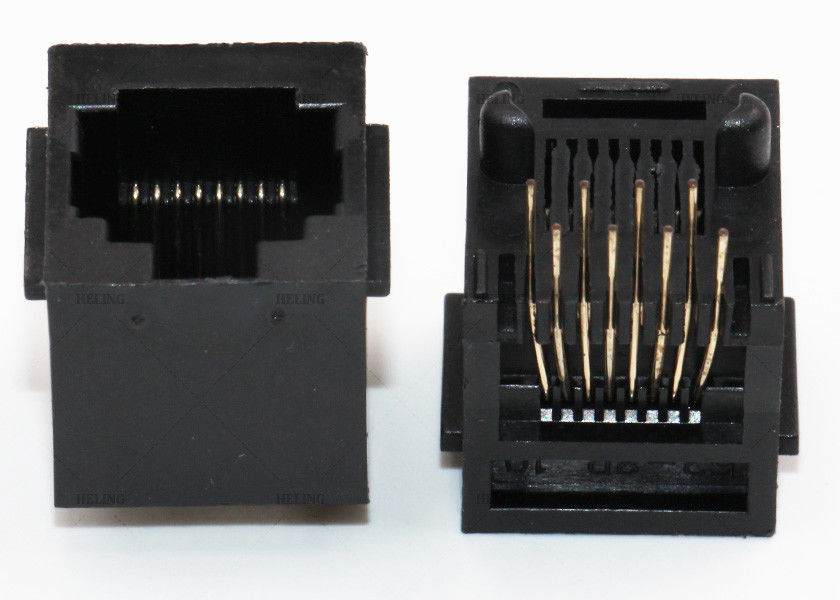

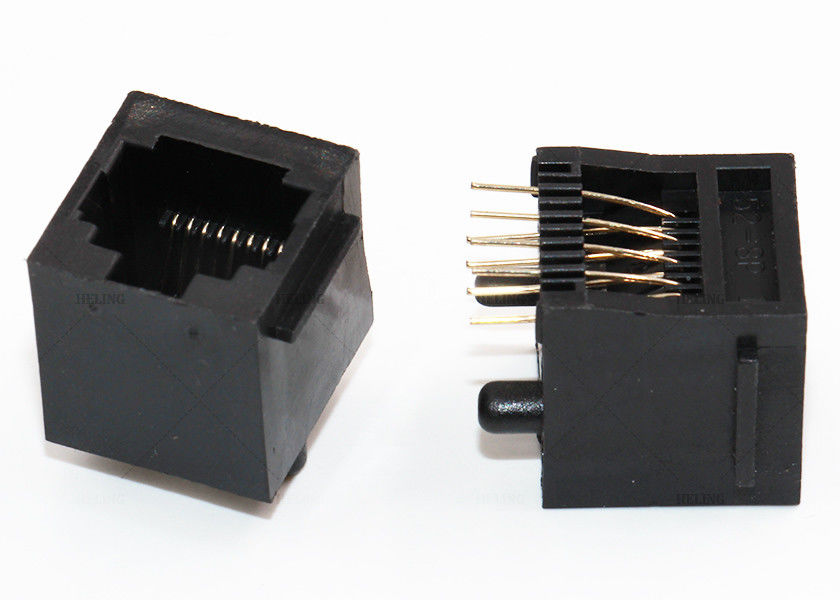

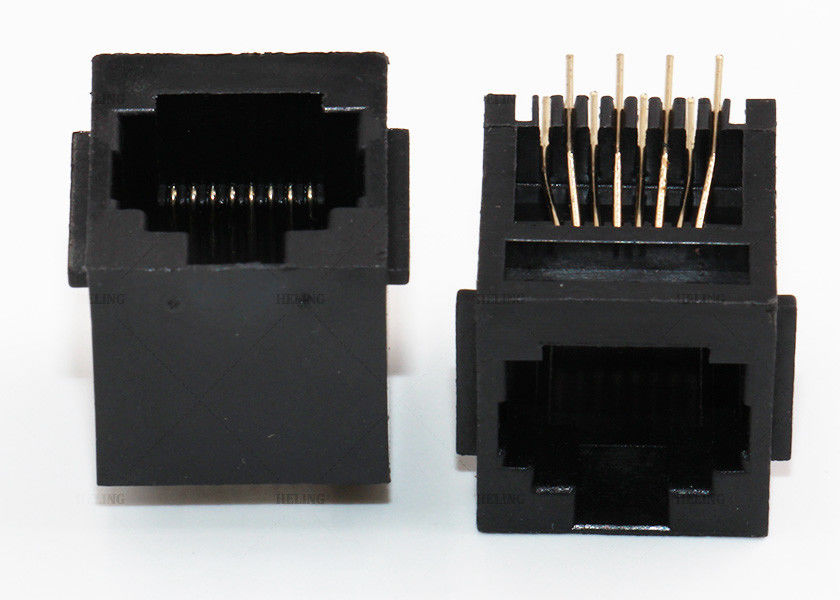

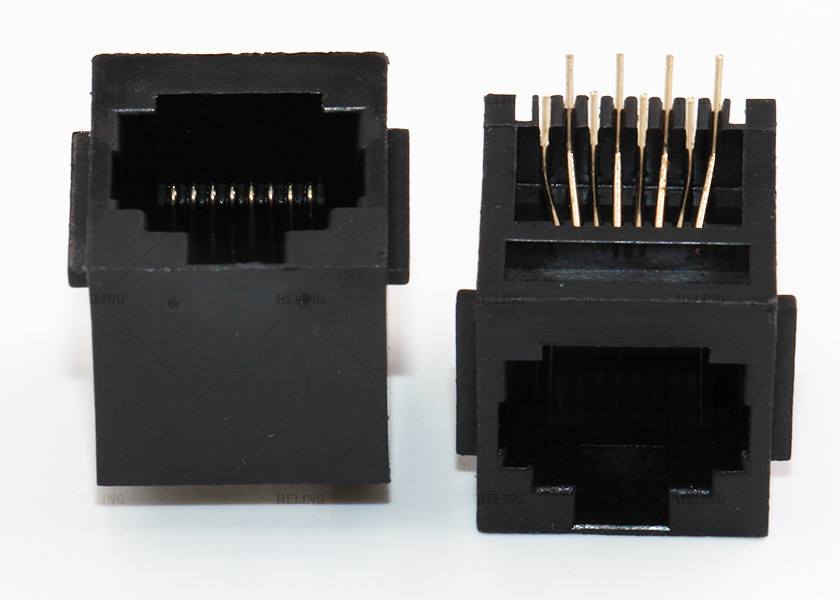

 Black Housing RJ45 Through Hole Connector Right Angle Vertical Top Entry 0
