Stainless Steel USB3 0 Connector 90 Degree Right Angle Female Ports

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: UB9SF-SU011-ZRK001
Minimum Order Quantity: 5000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Series: USB 3.0 Brand: HELING
Operate Force: 5N Cage Type: Single Port
Port Matrix Configuration: 1x1 Application: PCB
Packing: Normal OEM / ODM: Welcome
High Light:

type a connector

,

type b connector


Product Description

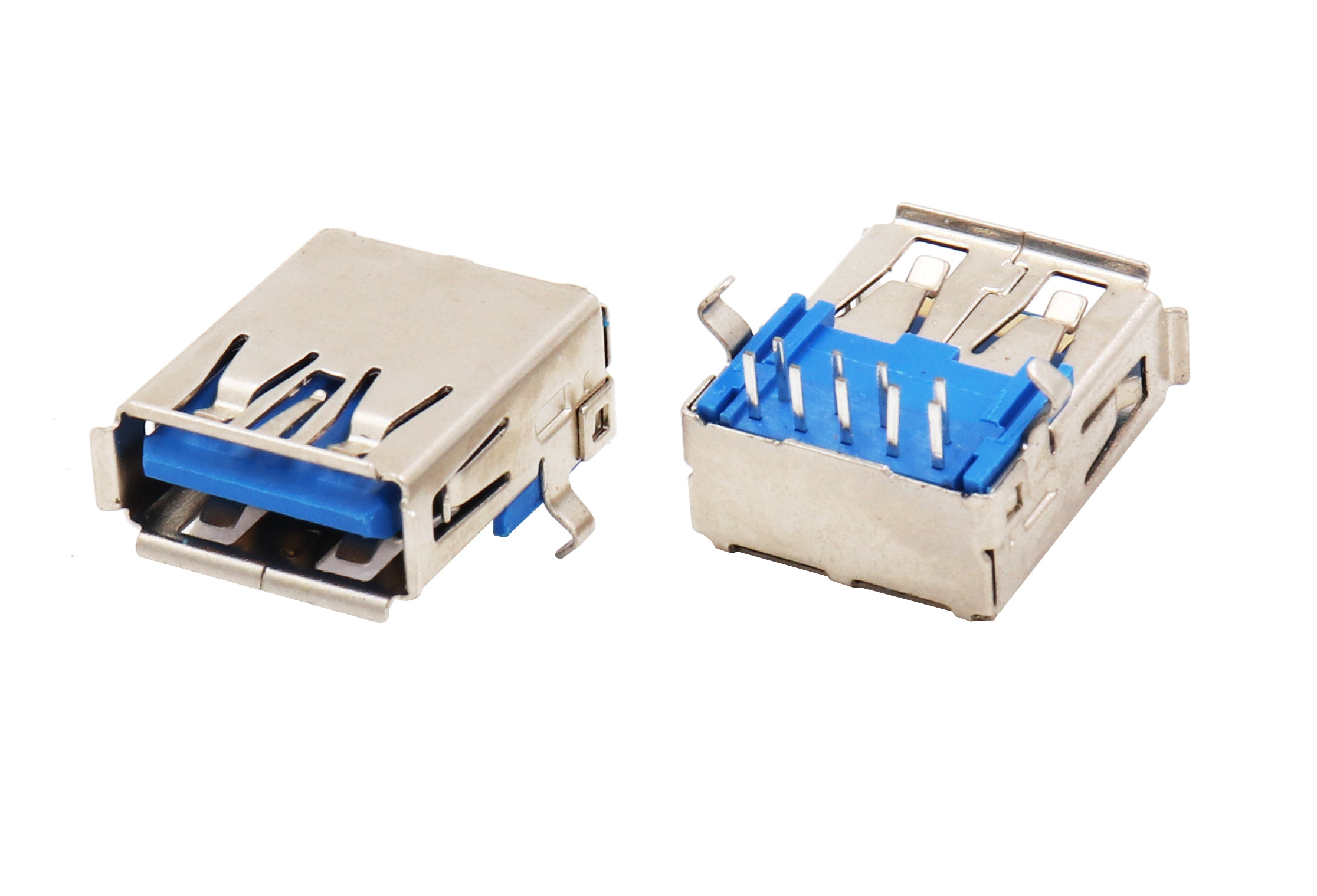

Stainless Steel Type A USB3.0 Connector 90 Degree Right Angle Female Ports





HELING USB 3.0 Connector meets all USB3.0 specifications, providing a reliable and faster data rates white supporting high temperature and IR-reflow process.



USB3.0 Connector has a high durability of up to 5000 mating cycles.



Heling USB3.0 Connector series offer vertical and right angle orientation, top or reverse mount, also dual-stacked version is available for additional mating requirements.



Quick Details:

1, Contact Current Rating:

1.8 Amperes for PIN 1 and PIN 4

0.25 Amperes for other contacts



2, Dielectric Withstanding Voltage: AC 100V (RMS)



3, Insulation Resistance: 100Megohms Mininum



4, Contact Resistance:

30mΩ Max for PIN 1 & PIN 4

50mΩ Max for other contacts



5, Mechanical Characterists:

Mating Force: 35N Maximum

Unmating Force: 10N minimum

8N After Durability





Series USB3.0 Connector
Part Number UB9SF-SU011-ZRK001
Type USB3.0
Orientatioin : Right Angle / Side Entry
Positions / Loaded contacts 8P8C
Performance Catagory USB3.0
Place of Origin China





***Please Click Here To Download Our Drawings













Our Advantage:


1 > 10 years experience
More than 10 years experience on RJ45 Female connector developing, producing and marketing; and our products are sold to more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Female Connectors for our customers.



Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi are our customers


  2 > Quality guarantee
Rigorous production and quality check in each section, providing 6 years warranty for all our RJ45 Female Connectors.

  3 > Responded within 24-hour
All enquiries will be replied within 24 hours in working day.



FAQ

1, How long can I expect to get the sample and mass order.

Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.

2, Can you print our customized logo?

Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.

3, What is your payment terms?

Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.

4, How can I order?

Re :
1, Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.
2, Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3, Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4, Ship your goods by DHL/FedEx/UPS, as your request.
5, Follow-up client usage status regularly and after sales service

5, If quality issues happened, what should I do?

Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.
