1x4 Port RJ45 Female Connector Right Angle MJ5388-Y014-HRN1 / RJ 45 Network Jack

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ5388-Y014-HRN1
Minimum Order Quantity: 5000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Product Family: RJ45 Modular Connector OEM / ODM: Welcome
Type: RJ45 Gender: Female
Application: PCB Business Type: Manufacturer
High Light:

rj45 female jack

,

rj45 female socket


Product Description

1x4 Port Unshielded RJ45 Jack 8p8c Connector Right Angle MJ5388-Y014-HRN1


HELING supply Modular Connector to Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi and so on.

Our Modular Connector are sold to more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of Modular Connector for our customers.



As a professional ISO9001:2008 certified manufacturer, HELING is always engaged in R&D, production and marketing of Low profile / Mini / Waterproof Modular Connector alongside solutions, with emphasis on mass production and achieving the best price/quality ratio.


Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 20MΩmax

Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min

Mechanical:
Insertion force: 0.9kgf max

Retention strength: 7.7kgf min between jack and plug
Durability: 720 mating cycles minimum

Materials:

Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), or PA46 (UL94V-0)
Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel
hield: 0.20~0.25mm thickness brass with tin plated
Gold Plating: 1u" , 3u" , 6u" , 15u" , 30u" , 50u" for options.


Characteristics :

Part Number: MJ5388-Y014-HRN1
Color - Resin :  Yellow
Durability : 750 mating cycles min
Material : PBT with phosphor bronze
Temerature range: -40℃ - 70℃
RoHS compliant Yes
Performance category /
Power over Ethernet Non-PoE
PCB Thickness-Recommended 1.6mm



Our Advantage:

  1 > Customer First , Superior Quality
Customer First , Superior Quality is our culture, we always believe that our own success is inextricably linked to our finest product quality and our customer's success.

  2 > 6 Years Warranty
6 years warranty for all our Modular Connector

  3 > 24-hour on-line service
All enquiries will be replied within 24 hours in working day.


Why choose us



1) Your inquiry related to our products or prices will be replied in 24hours.


2) Well-trained and experienced staffs to answer all your inquires in fluent English


3) OEM and ODM,any your customized Modular Connector we can help you design put into product


4) Distributer ship are offered for your unique design and some our current models


5) Protection of your sales area,ideas of design and all your private information



6) Have the perfect after-sales service for all our clients


How to order

1) Choose the Modular Connector you need and send us an inquiry, we will reply in 24 hours.

2) Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.

3) Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.

4) Ship your goods by DHL/FedEx/UPS, as your request.

5) Follow-up client usage status regularly and after sales service


Product display :

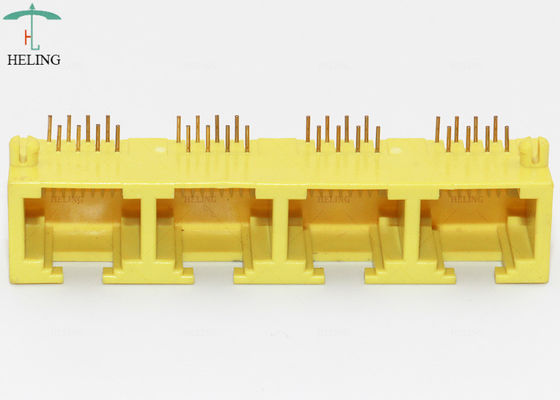

 1x4 Port RJ45 Female Connector Right Angle MJ5388-Y014-HRN1 / RJ 45 Network Jack 0
