|Place of Origin:||China|
|Certification:||ISO9001 , RoHS , UL , CE , REACH|
|Minimum Order Quantity:||3000|
|Price:||Preferential & Competitive|
|Packaging Details:||Tray / Tape & Reel as your request|
|Delivery Time:||Stock or 4 weeks|
|Payment Terms:||T / T， Paypal|
|Supply Ability:||1,000K Pieces Per Month|
|USB Standard:||USB 3.0||Type:||Type B|
|Insulater:||PBT+30% G.F. UL 94V-0||Life:||5000 Cycles|
|Port Matrix Configuration:||1x1||Application:||PCB|
|No. Of Positions:||9 Ways||Contact Plating:||Gold Plate|
type b connector,
through hole connector

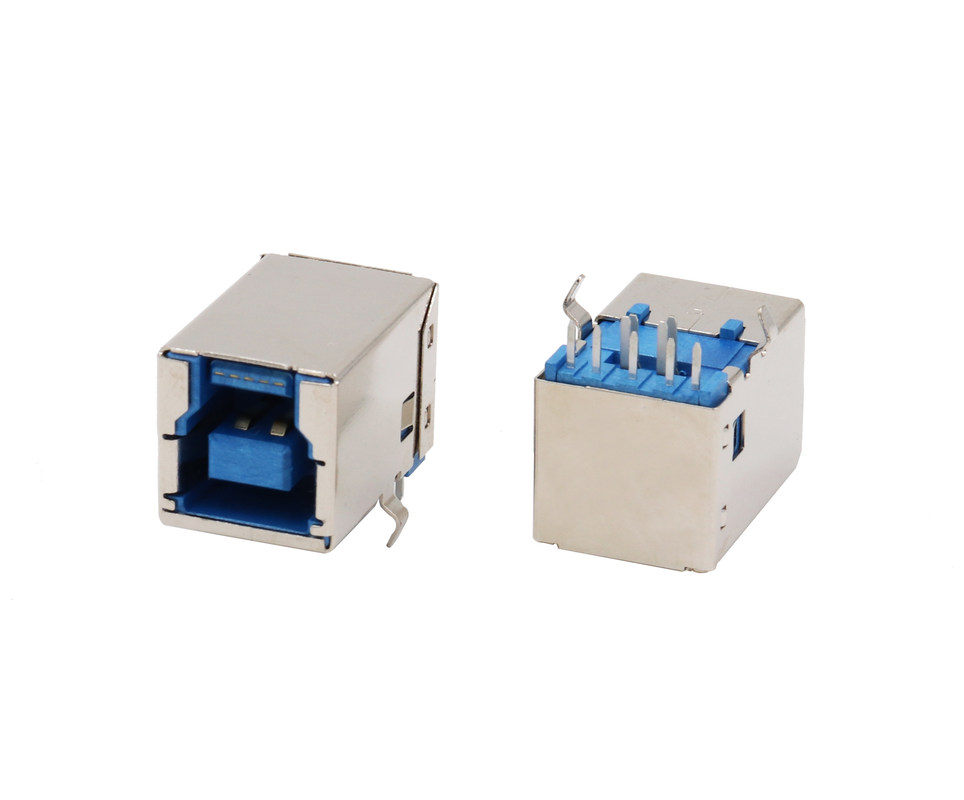

Type B USB3.0 Connector 90 Degree Shielding Thru-Hole For Printing Equipment
HELING USB 3.0 Connector meets all USB3.0 specifications, providing a reliable and faster data rates white supporting high temperature and IR-reflow process.
USB3.0 Connector has a high durability of up to 5000 mating cycles.
Heling USB3.0 Connector series offer vertical and right angle orientation, top or reverse mount, also dual-stacked version is available for additional mating requirements.
***Please Click Here To Download Our Drawings
1. Contact Current Rating:
1.8 Amperes for PIN 1 and PIN 4
0.25 Amperes for other contacts
2. Dielectric Withstanding Voltage: AC 100V (RMS)
3. Insulation Resistance: 100Megohms Mininum
4. Contact Resistance:
30mΩ Max for PIN 1 & PIN 4
50mΩ Max for other contacts
5. Mechanical Characterists:
Mating Force: 35N Maximum
Unmating Force: 10N minimum
8N After Durability
Contact: Copper Alloy
Contact: Au Plated on contact Area
Tin Plated on Solder Area
Nickel underplating over all
Shell: Nickel plated
8. Operating Temperature: -55℃ to 85℃
1 > 10 years experience
More than 10 years experience on RJ45 Female connector developing, producing and marketing; and our products are sold to more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Female Connectors for our customers.
Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi are our customers
2 > Quality guarantee
Rigorous production and quality check in each section, providing 6 years warranty for all our RJ45 Female Connectors.
3 > Responded within 24-hour
All enquiries will be replied within 24 hours in working day.
1. How long can I expect to get the sample and mass order.
Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.
2. Can you print our customized logo?
Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.
3. What is your payment terms?
Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.
4. How can I order?
1. Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.
2. Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3. Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4. Ship your goods by DHL/FedEx/UPS, as your request.
5. Follow-up client usage status regularly and after sales service
5. If quality issues happened, what should I do?
Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.
