Side Entry Right Angle RJ45 Connector , Network RJ45 90 Degree Adapter

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ5608-T011-RF1
Minimum Order Quantity: 5000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Product Name: Right Angle RJ45 Connector Shielded Shell Material: Brass
Brand Name: HELING Gender: Female
Port Configuration: 1 X 1 Entry Location: Side Entry
Latch Orientation: Tab Down Packaging Method: Tray / Tape & Reel
High Light:

right angle rj45 coupler

,

rj45 right angle adapter


Product Description

Brass Shielded Right Angle RJ45 Connector Yellow Housing PCB Jack for Network



Description:

  •     Model number:  MJ5608-T011-RF1
  •     Series: Right Angle RJ45 Jack
  •     Gender:  RJ45 Female Connector
  •     Positions/ loads of contacts : 8P8C ( RJ45 , Ethernet )
  •     Mounting type : Through hole
  •     Latch Orientation: Right Angle (Side Entry)
  •     LED indicator : None

Specfication:



Part Number:  MJ5608-T011-RF1
Product Family: Right Angle RJ45 Connector
Overview: RJ45 1x1 8P8C Right Angle RJ45 Connector Yellow Color
Description: 8 core 1x1 ports Right Angle RJ45 Jack connector, Shielded
  Operating temprature range: -40℃-70℃

General
Series: Right Angle RJ45 Connector Jack
Numbers of ports: 1x1
Orientation: Right Angle ( Side entry)
Pin type: THT solder
Positions/ Loaded contacts 8P8C
Latch: Tab up
LEDs: None
Shielded: Shielded
Jack Height: 13.4mm
Magnetic: None
Performance category:

Cat 5

Power over Ethernet(PoE): Non-PoE
Physical
Color-Resin: Yellow
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating termination: Gold Flash
Plating min- mating: 6u"/15u"/30u" optional
Net Weight: TBA
PCB: FR4
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
RoHS compliant YES, RoHS AND Halogen-Free
Electrical
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES





Documents:



*** CLICK HERE TO DOWNLOAD THE DRAWING





HELING Right Angle RJ45 Connector Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.

Our Right Angle RJ45 Connector are widely used in:

  • Internet Data Center
  • Web Servers
  • Switches Hubs
  • Work Station
  • Network Information Center
  • Mother board
  • Unmanaged Switches
  • Consumer devices



Product Images :

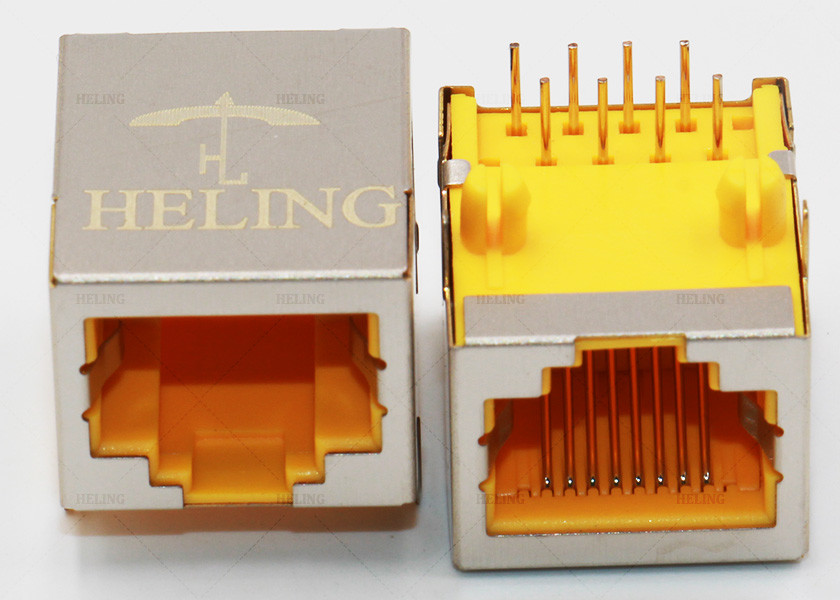

 Side Entry Right Angle RJ45 Connector , Network RJ45 90 Degree Adapter 0

Side Entry Right Angle RJ45 Connector , Network RJ45 90 Degree Adapter 1
