Single Port Integrated Magnetics RJ45 , RJ45 Connector With Integrated Magnetics

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ1A-B211-ROT018
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 300 K Pieces Per Month
Detail Information
Series: RJ45 With Integrated Magnetics Numbers Of Ports: 1
Port Matrix Configuration: 1x1 Orientation: Right Angle
Positions/Loaded Contacts: 8P8C Latch: Tab Down
Pin Type: THT Solder RoHS Compliant: Yes, RoHS And Halogen-Free
High Light:

magnetic rj45 connector

,

magnetic rj45 jack


Product Description

Single Port Integrated Magnetics RJ45 , RJ45 Connector With Integrated Magnetics

Heling operates and specializes in the provision of RJ45 with Integrated Magnetics networking connectivity alongside solutions in the field of telecom and datacom; Heling offers a broad range of RJ45 with Integrated Magnetics for your data and signal transmissions.

Our RJ45 with Integrated Magnetics are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded, with EMI Finger/LED options.

Our RJ45 with Integrated Magnetics are widely used in Communication equipment, Telephone, Network Equipment, Hub, Switch, Router, Modem, PC mainboard etc.

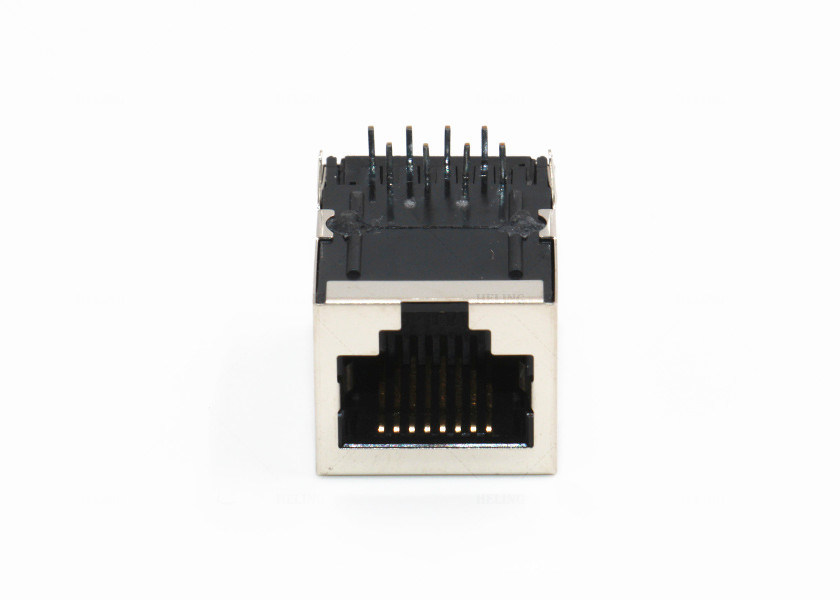

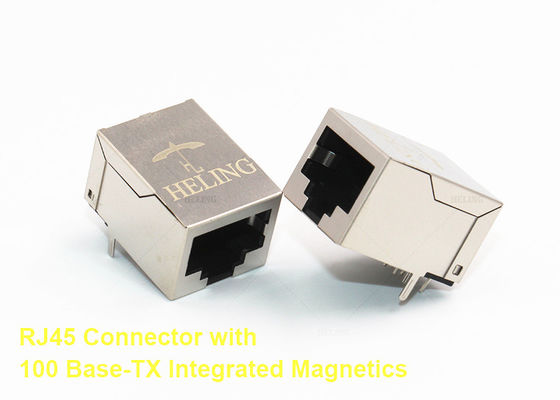

Single Port RJ45 with 100Base-T Integrated Magnetics, Right Angle, Tab Down, RoHS, MJ1A-B211-ROT018
Part Number: MJ1A-B211-ROT018
Product Family:RJ45 with Integrated Magnetics
Overview:RJ45 1x1 ports 8P8C Jacks
Description:


1x1 ports RJ45 connector, Right Angle, Tab Down,Shielded
Operating temprature range: -40℃-70℃
100 Base-T Integrated Magnetics
General
Series:RJ45 with Integrated Magnetics
Numbers of ports:1x1
Orientation:Right angle(side entry)
Pin type:THT solder
Positions/ Loaded contacts:8P8C
Latch:Tab Down
LEDs:None (Optional)
Shielded:YES
Jack Height:13.2mm
Magnetic: Yes
Performance category:100base-T
Power over Ethernet(PoE):Non-PoE
Physical
Color-Resin:Black
Durability(mating cycles max):750
MaterialMetal:Phosphor bronze
Resin:Liquid crystal polymer
Plating mating:Gold over Nickel
Plating termination:Gold Flash
Plating min- mating:1u"/3u"/6u"/15u"/30u"/50u"  optional
Net Weight:TBA
PCB:FR4
PCB locator:Yes
PCB retention:None
PCB retaining post:T-post
PCB Thickness- Recommended1.6mm
Packaging type:Tray
Temperature range:-40℃-70℃
Turns Ratio RX:1CT:1CT
Turns Ratio TX:1CT:1CT
Configuration RX:T,C
Configuration TX:T,C
RoHS compliant:YES, RoHS AND Halogen-Free
Electrical
Current rating:1.5AMPS
Voltage rating:125V AC
Insulation Resistance:500MΩ mini
Withstand voltage:1000V RMS 60Hz
Contact Resistance:50mΩ Max
Grounding to PCB:YES
Grounding to Panel:YES



Contact Details
