1 x 1 Shielded RJ45 Magnetic Jack 30 U" / 50 U" Gold Plating Contact Terminal

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ2B-B211-RSL14T001-1
Minimum Order Quantity: 5000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 300 K Pieces Per Month
Detail Information
Product Series: RJ45 Jack Magnetics Component Type: PCB Jack
Magnetics: Yes Performance Category: 100Mb
LED: Yes Green / Yellow Latch Orientation: Tab Up
Samples: Free Samples Shipping: DHL/ FedEX /UPS /TNT
High Light:

magnetic rj45 jack

,

magnetic modular jacks


Product Description

30 u" / 50 u" Gold Plating Contact Terminal Integrated Magnetics RJ45 Socket



Specification

1, Part number : MJ2B-B211-RSL14T001-1

2, Description : 1 x 1 Shielded Integrated Magnetics RJ45

                         THT solder, Right Angle mounting, Tab up RJ45

3, Component type: THT Integrated Magnetics RJ45 Jack

4, Status Indicator : Yes, Green / Yellow

5, Application : Widely used for networking products, says HUB, SWITCH, PC SYSTEM, PRINTER, SET TOP BOX AND SO ON.



Physical characteristics



Physical
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 1u"/3u"/6u"/15u"/30u"/50u" optional
Net Weight: TBA
PCB: FR4
PCB locator: None
PCB retention: None
PCB retaining post: Hooks
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃





Documents:



*** CLICK HERE TO DOWNLOAD THE DRAWING



Our Customer:



Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi etc. are our customers.





Our Products:

  • Offset/Overhangs PCB RJ45 Jack
  • 100/1000 base - T Integrated Magnetics RJ45 modular jacks
  • Low Profile SMT RJ45 Female Connector
  • Low Profile RJ45 Through Hole Connector
  • Single Port RJ45 Female Connector
  • 1xN Multi-port RJ45 Female Connector
  • 2xN Multi-port RJ45 Female Connector
  • PoE RJ45 Connector
  • Modular jacks + USB/HDMI
  • Ethernet LAN Transformer

      Welcome OEM/ODM orders.



Application:

Smart TV HUBs Switcher Networking devices
Network interface cards Telecom datacom set-top boxes and video
LED TV PCs Router Splitter
Printers Networking station IO modules Industrial PC
Internet of Things IP cameras Surveillance Access points





Our advantage:

1. More than 10 years experience in the field of RJ45 Female Connector, please provide drawings or part number, then we will reply you with our drawings and price for your confirmation.

2. 100% full inspection before shipping to guarantee good quality;

3. OEM/ODM are available;

4. Fast delivery time, good production capacity, moderate price;

5. ROHS compliant;

6. Small order are available.



FAQ :



1, How long can I expect to get the sample and mass order.



Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.



2, Can you print our customized logo?



Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.



3, What is your payment terms?



Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.



4, How can I order?



Re :

1, Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.

2, Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.

3, Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.

4, Ship your goods by DHL/FedEx/UPS, as your request.

5, Follow-up client usage status regularly and after sales service



5, If quality issues happened, what should I do?



Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.

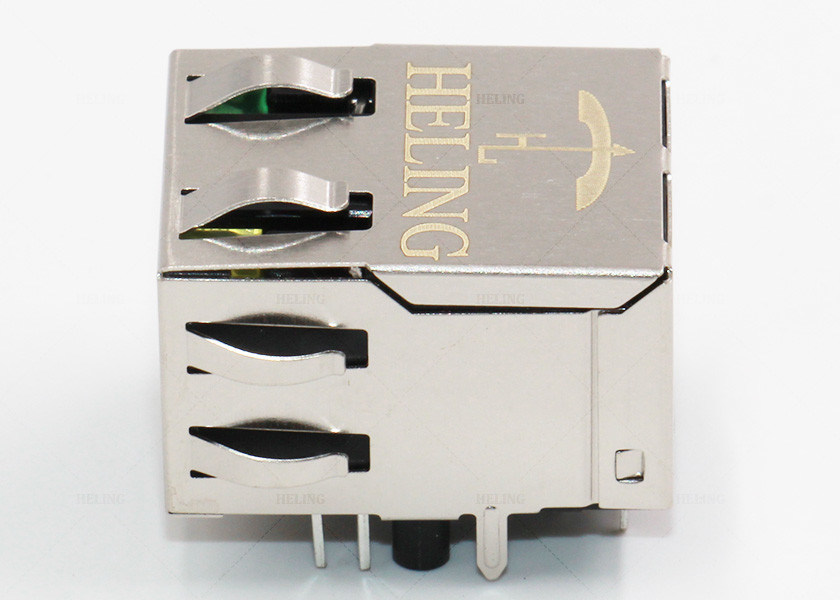

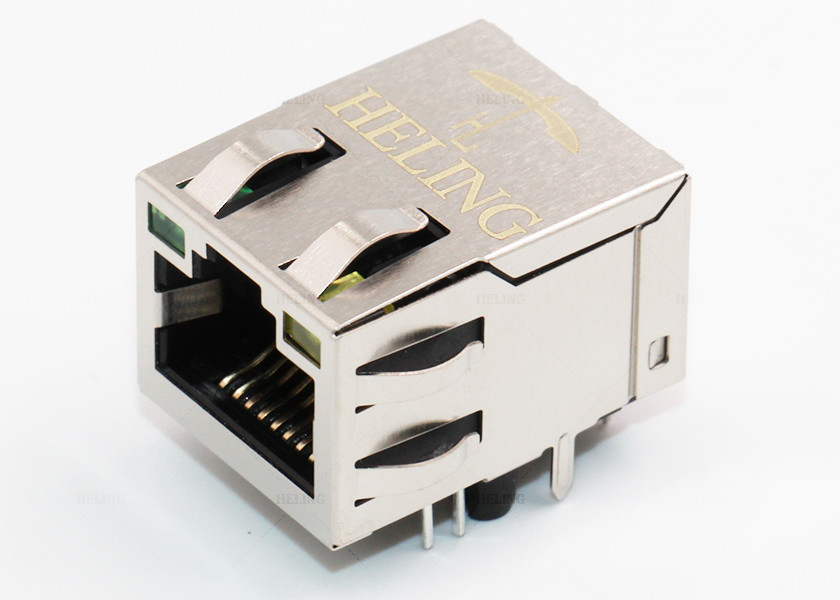

Product Images :

 1 x 1 Shielded RJ45 Magnetic Jack 30 U" / 50 U" Gold Plating Contact Terminal 0
