2.5 G / 5 G Base - T PoE RJ45 Connector , Ethernet Connector Female R / A Entry

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ5A-B211-RSL15T148-1
Minimum Order Quantity: 5000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 300 K Pieces Per Month
Detail Information
Series: PoE RJ45 Connector Keywords: PoE RJ45 Connector
Application: PCB Orientation: Right Angle
Shielded: Yes Position / Loaded Contacts: 8p8c
PCB Mounting Method: Thru-hole Usage: For Networking And Datacom Equipment
High Light:

rj45 poe magjack

,

ethernet lan rj 45 connector


Product Description

Router 2.5 G / 5 G Base - T Integrated Transformer PoE RJ45 Connector R / A Entry

Description:

  •     Model number:  MJ5A-B211-RSL15T148-1
  •     Series: PoE RJ45 Connector Jack
  •     Gender:  RJ45 Female Connector
  •     Positions/ loads of contacts : 8P8C ( RJ45 , Ethernet )
  •     Mounting type : Through hole
  •     Latch Orientation: Right Angle (Side Entry)
  •     LED indicator : Green Yellow

Specfication:


Part Number: MJ5A-B211-RSL15T148-1
Product Family:PoE RJ45 Connector
Overview:RJ45 1x1 8P8C PoE RJ45 Connector Black Housing
Description:8 core 1x1 ports PoE RJ45 Connector, Shielded
 Operating temprature range: -40℃-70℃

General
Series:PoE RJ45 Connector
Numbers of ports:1x1
Orientation:Right Angle ( Side entry)
Pin type:THT solder
Positions/ Loaded contacts8P8C
Latch:Tab up
LEDs:Green Yellow
Shielded:Shielded
Jack Height:13.5mm
Magnetic:Yes
Performance category:

1000 MB

Power over Ethernet(PoE):With PoE
Physical
Color-Resin:Black
Durability(mating cycles max):750
MaterialMetal:Phosphor bronze
Resin:Liquid crystal polymer
Plating termination:Gold Flash
Plating min- mating:6u"/15u"/30u" optional
Net Weight:TBA
PCB:FR4
PCB locator:Yes
PCB retention:None
PCB retaining post:T-post
PCB Thickness- Recommended1.6mm
Packaging type:Tray
Temperature range:-40℃-70℃
RoHS compliantYES, RoHS AND Halogen-Free
Electrical
Current rating:1.5AMPS
Voltage rating:125V AC
Insulation Resistance:500MΩ mini
Withstand voltage:1000V RMS 60Hz
Contact Resistance:50mΩ Max
Grounding to PCB:YES
Grounding to Panel:YES




HELING Right Angle RJ45 Connector Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.
Our Right Angle RJ45 Connector are widely used in:

  • Internet Data Center
  • Web Servers
  • Switches Hubs
  • Work Station
  • Network Information Center
  • Mother board
  • Unmanaged Switches
  • Consumer devices


Our Advantage:
1 > 10 years experience
More than 10 years experience on RJ45 Female connector developing, producing and marketing; and our products are sold to more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Female Connectors for our customers.

Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi etc are our customers.
2 > Quality guarantee
Rigorous production and quality check in each section, providing 6 years warranty for all our RJ45 Female Connectors.
3 > Responded within 24-hour
All enquiries will be replied within 24 hours in working day.

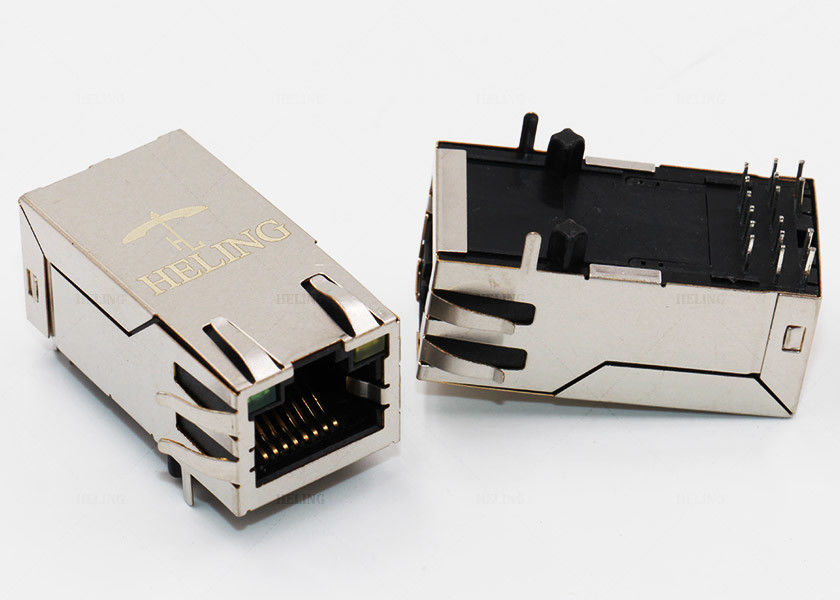

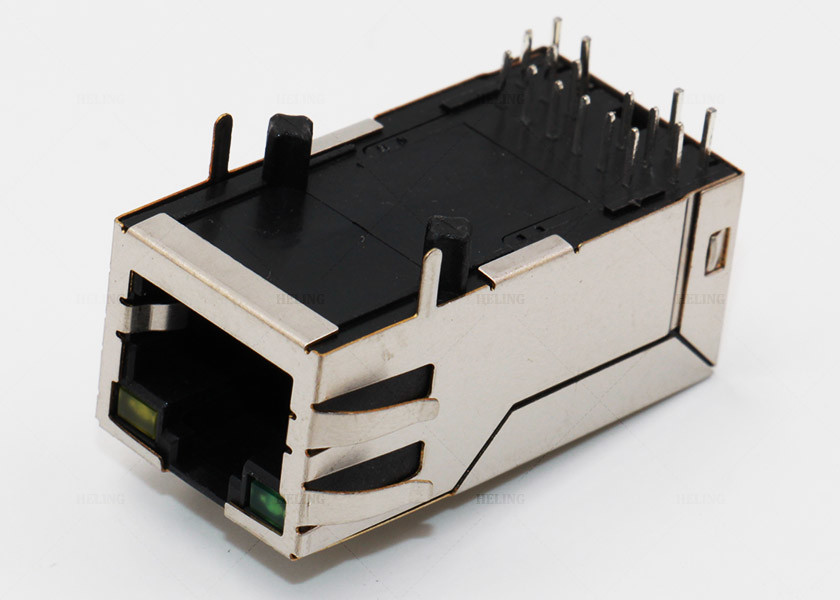

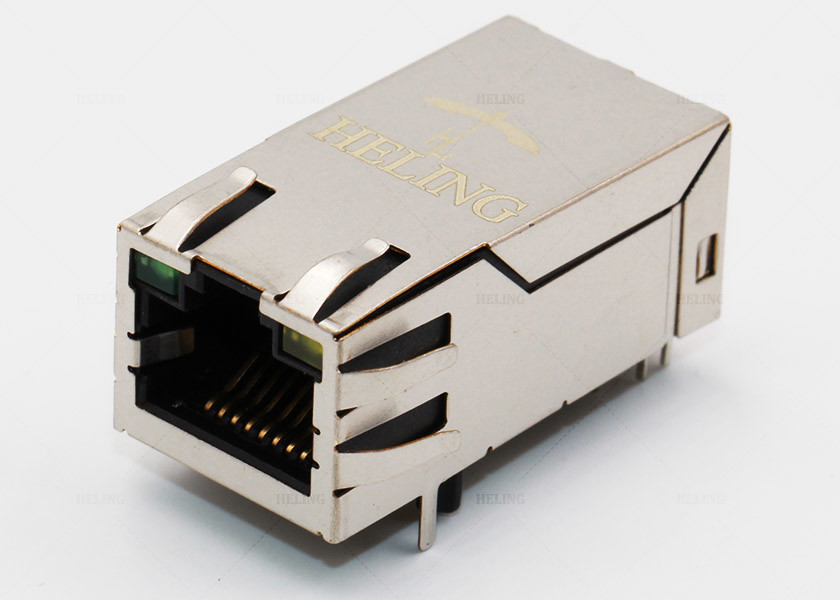

Product Images :

2.5 G / 5 G Base - T PoE RJ45 Connector , Ethernet Connector Female R / A Entry 0
