| Place of Origin: | China |
|---|---|
| Brand Name: | DGHELING |
| Certification: | ISO9001 , RoHS , UL , CE , REACH |
| Model Number: | MJ5A-B211-RSL15T148-1 |
| Minimum Order Quantity: | 2000 |
| Price: | Preferential & Competitive |
| Packaging Details: | Tray / Tape & Reel as your request |
| Delivery Time: | Stock or 4 weeks |
| Payment Terms: | T / T， Paypal |
| Supply Ability: | 300 K Pieces Per Month |
| Product Family: | PoE RJ45 Connector | Latch: | Tab Up |
|---|---|---|---|
| LED: | Yes, Green Yellow | Numbers Of Positions / Contacts: | 8P8C |
| Mounting Type: | THT | Port Configuration: | 1 X 1 |
| PoE: | With PoE | Samples: | Free |
| High Light: | poe rj45 jack,rj45 poe magjack |
||
50 u" Gold Plating Contact Terminal PoE RJ45 Connector with Surge Projection
Quick details:
Product Parameter :
| Part Number: | MJ5A-B211-RSL15T148-1 | ||||||
| Product Family: | PoE RJ45 Connector | ||||||
| Overview: | PoE PCB RJ45 Connector 1x1 8P8C Modular Jack | ||||||
| Description: | 8 core 1x1 ports Low Profile RJ45 connector, Shielded, with LED | ||||||
| Right Angle / Side Entry, Operating temprature range: -40℃-70℃ | |||||||
| General | |||||||
| Series: | PoE RJ45 Connector | ||||||
| Numbers of ports: | 1x1 | ||||||
| Orientation: | Right Angle (Side entry) | ||||||
| Pin type: | THT solder | ||||||
| Positions/ Loaded contacts | 8P8C | ||||||
| Latch: | Tab up | ||||||
| LEDs: | Green / Yellow | ||||||
| Shielded: | YES | ||||||
| Jack Height: | 13.5mm | ||||||
| Magnetic: | Yes | ||||||
| Performance category: | Cat 5 | ||||||
| Power over Ethernet(PoE): | Non-PoE | ||||||
| Physical | |||||||
| Color-Resin: | Black | ||||||
| Durability(mating cycles max): | 750 | ||||||
| Material | Metal: | Phosphor bronze | |||||
| Resin: | Liquid crystal polymer | ||||||
| Plating mating: | Gold over Nickel | ||||||
| Plating termination: | Gold Flash | ||||||
| Plating min- mating: | 3u" / 6u"/15u"/30u" optional | ||||||
| Net Weight: | TBA | ||||||
| PCB: | FR4 | ||||||
| PCB locator: | Yes | ||||||
| PCB retention: | None | ||||||
| PCB Thickness- Recommended | 1.6mm | ||||||
| Packaging type: | Tray | ||||||
| Temperature range: | -40℃-70℃ | ||||||
| RoHS compliant | YES, RoHS AND Halogen-Free | ||||||
| Electrical | |||||||
| Current rating: | 1.5AMPS | ||||||
| Voltage rating: | 125V AC | ||||||
| Insulation Resistance: | 500MΩ mini | ||||||
| Withstand voltage: | 1000V RMS 60Hz | ||||||
| Contact Resistance: | 50mΩ Max | ||||||
| Grounding to PCB: | YES | ||||||
| Grounding to Panel: | YES | ||||||
Below customized requirements are accepted:
1. With or without transformers
2. With or withour PoE function
3. Customized length of Pin
4. Customized housing color
5. Customized contact area gold plating
6. Customized LED Indicator color
7. Customized Logo printing
Our Advantage:
1 > 10 years experience
More than 10 years experience on RJ45 Female connector developing, producing and marketing; and our products are sold to more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Female Connectors for our customers.
Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi are our customers
2 > Quality guarantee
Rigorous production and quality check in each section, providing 6 years warranty for all our RJ45 Female Connectors.
3 > Responded within 24-hour
All enquiries will be replied within 24 hours in working day.
FAQ
1. How long can I expect to get the sample and mass order.
Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.
2. Can you print our customized logo?
Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.
3. What is your payment terms?
Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.
4. How can I order?
Re :
1. Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.
2. Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3. Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4. Ship your goods by DHL/FedEx/UPS, as your request.
5. Follow-up client usage status regularly and after sales service
5. If quality issues happened, what should I do?
Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.

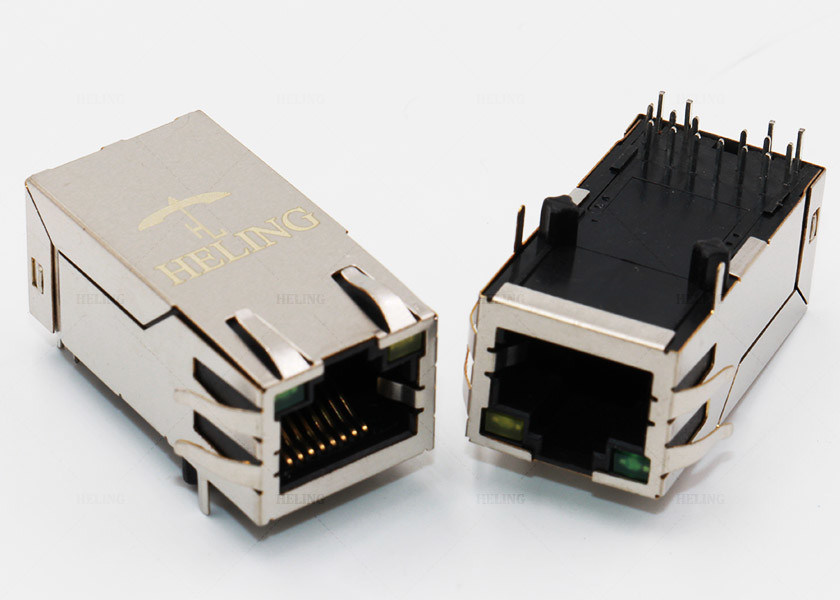

Product Image :
