8P8C R/A RJ45 PCB Connector With LED Indicator Pipe For Networking

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ5988P-B011-RL1B1
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Series: RJ45 PCB Connector Color: Customized
Product Name: RJ45 Material: ABS/PBT/PA66/PA46
Connector Type: RJ45 8P8C Port: 1 Port
Business Type: Manufacturer
High Light:

rj45 female coupler

,

rj45 female jack


Product Description

RJ45 PCB Connector, Shielded, 8P8C, R/A, THT Type, With LED Indicator Pipe for Networking





1,RJ45 PCB Connector customized requirements are accepted:



1 , with or without transformers

2 , with or withour PoE function

3 , Customized length of Pin

4 , Customized housing color

5 , Customized contact area gold plating

6 , Customized LED Indicator color

7 , Customized Logo printing


 2, RJ45 PCB Connector specification:

RJ45 PCB Connector, Shielded, 8P8C, R/A, THT Type, With LED Indicator Pipe for Networking
Part Number:  MJ5988P-B011-RL1B1
Product Family: 1 x 1 RJ45 PCB Connector
Overview:  RJ45 PCB Connector 1x1 ports 8P8C
Description:


1x1 ports RJ45 PCB Connector, R/A, THT
Operating temprature range: -40℃-70℃

General- RJ45 PCB Connector
Series: 1 x 1 RJ45 PCB Connector
Numbers of ports: 1 x 1
Orientation: RJ45 PCB Connector
Pin type: THT solder
Positions/ Loaded contacts: 8P8C
Latch: Tab up
LEDs: None
Shielded: yes
Jack Height: 12mm
Magnetic: /
Performance category: /
Power over Ethernet(PoE): Non-PoE
Physical - RJ45 PCB Connector
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 1u"/3u"/6u"/15u"/30u"/50u"  optional
Net Weight: TBA
PCB: FR4
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
Turns Ratio RX: /
Turns Ratio TX: /
Configuration RX: /
Configuration TX: /
RoHS compliant: YES, RoHS AND Halogen-Free
Electrical - RJ45 PCB Connector
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES

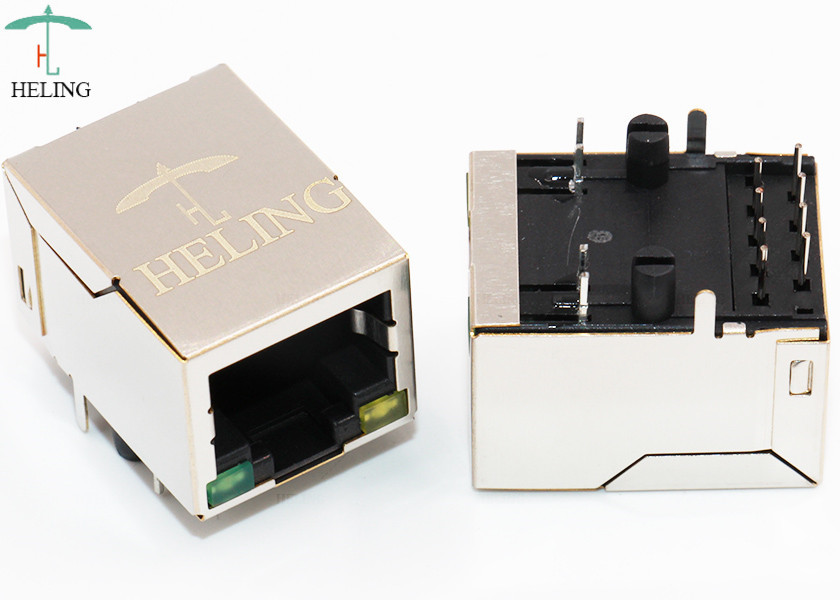

3, RJ45 PCB Connector Product Image :

8P8C R/A RJ45 PCB Connector With LED Indicator Pipe For Networking 0







4 FAQ for RJ45 PCB Connector


1, How long can I expect to get the sample and mass order.

Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.

2, Can you print our customized logo?

Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.

3, What is your payment terms?

Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.

4, How can I order?

Re :
1, Choose the RJ45 PCB Connector you need and send us an inquiry, we will reply in 24 hours.
2, Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3, Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4, Ship your goods by DHL/FedEx/UPS, as your request.
5, Follow-up client usage status regularly and after sales service

5, If quality issues happened, what should I do?

Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.



5  Product Range of RJ45 PCB Connector

  • Offset/Overhangs RJ45 PCB Connector
  • 100/1000 base - T Integrated Magnetics RJ45 PCB Connector
  • Low Profile SMT RJ45 PCB Connector
  • RJ45 PCB Connector Through Hole Connector
  • Single Port RJ45 PCB Connector
  • 1xN Multi-port RJ45 PCB Connector
  • 2xN Multi-port RJ45 PCB Connector
  • PoE RJ45 PCB Connector
  • RJ45 PCB Connector + USB/HDMI
  • RJ45 PCB Connector Ethernet LAN Transformer

Welcome OEM/ODM orders.
