|Place of Origin:||China|
|Certification:||ISO9001 , RoHS , UL , CE , REACH|
|Minimum Order Quantity:||2000|
|Price:||Preferential & Competitive|
|Packaging Details:||Tray / Tape & Reel as your request|
|Delivery Time:||Stock or 2 weeks|
|Payment Terms:||T / T， Paypal|
|Supply Ability:||1,000K Pieces Per Month|
|Series:||Vertical RJ45 Jack||Shielding:||Non-shielding|
|Place Of China:||China||Color-Resin:||Black|
|Mounting Type:||SMT||Latch Orientation:||Tab Up|
|Position / Loaded Contacts:||8p8c||Application:||PC / IP Camera / Hubs / Router|
vertical rj45 connector,
rj45 vertical connector

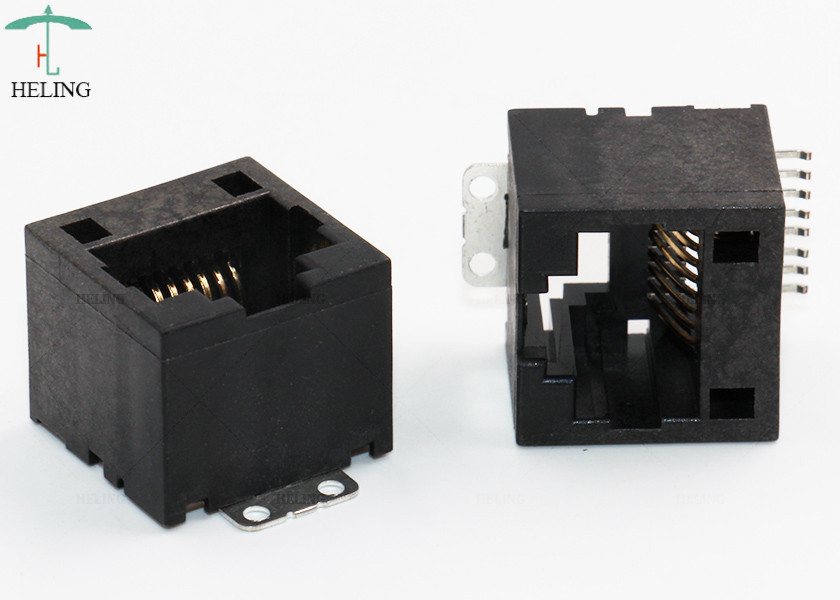

No Shielding Shell Black Housing Vertical RJ45 Jack Custom Female LAN Connector
|Product Family:||Vertical RJ45 Jack|
|Overview:||RJ45 1x1 8P8C Vertical RJ45 Jack|
|Description:||8 core 1x1 ports Vertical RJ45 Jack connector, Unshielded|
|Vertical, Operating temprature range: -40℃-70℃|
|Series:||Vertical RJ45 Jack|
|Numbers of ports:||1x1|
|Orientation:||Vertical (top entry)|
|Pin type:||SMT solder|
|Positions/ Loaded contacts||8P8C|
|Power over Ethernet(PoE):||Non-PoE|
|Durability(mating cycles max):||750|
|Resin:||Liquid crystal polymer|
|Plating mating:||Gold over Nickel|
|Plating termination:||Gold Flash|
|Plating min- mating:||6u"/15u"/30u" optional|
|PCB retaining post:||T-post|
|PCB Thickness- Recommended||1.6mm|
|Turns Ratio RX:||1CT:1CT|
|Turns Ratio TX:||1CT:1CT|
|RoHS compliant||YES, RoHS AND Halogen-Free|
|Voltage rating:||125V AC|
|Insulation Resistance:||500MΩ mini|
|Withstand voltage:||1000V RMS 60Hz|
|Contact Resistance:||50mΩ Max|
|Grounding to PCB:||YES|
|Grounding to Panel:||YES|
*** CLICK HERE TO DOWNLOAD THE DRAWING
Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi etc. are our customers.
1, How long can I expect to get the sample and mass order.
Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.
2, Can you print our customized logo?
Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.
3, What is your payment terms?
Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.
4, How can I order?
1, Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.
2, Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3, Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4, Ship your goods by DHL/FedEx/UPS, as your request.
5, Follow-up client usage status regularly and after sales service
5, If quality issues happened, what should I do?
Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.
Product Images :
