Tab Up Shielded Overhangs RJ45 Board Mount Connector Through Hole PCB Mounting

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ88-Y011-HLRVLB
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 2 weeks
Payment Terms: T / T, Paypal
Supply Ability: 2,000K Pieces Per Month
Detail Information
Connector Type: PCB Modular Jack Series: PCB RJ45 Jack
Orientation: Right Angle PCB Mounting Method: Through Hole
LED Indicator: Yes Latch Orientation: Tab Up
Samples: Free RoHS Complaint: YES, RoHS And Halogen-Free
High Light:

pcb mount rj45 connector


pcb mount rj45 jack

Product Description

Tab Up Shielded Overhangs PCB RJ45 Jack , Through Hole Mounting





  - Model Number : MJ88-Y011-HLRVLB
  - Orientation : Right Angle / Side Entry
  - Shielding :  Shielded

  - Latch direction : Tab UP

  - Numbers of positions / Contacts : 8P8C

  - LED Indicator : Single LED
Product Description

Series Offset / Overhangs PCB RJ45 Jack
Part Number MJ88-Y011-HLRVLB
Numbers of port 1 x 1
Orientatioin  Right Angle / Side Entry
Positions / Loaded contacts 8P8C
Performance Catagory Cat 5
EMI Finger None
Place of Origin China
RoHS compliant

YES, RoHS and Halogen Free

Product Application:

HELING Right Angle RJ45 Connector are widely used in network equipment, communication equipment, modem, hub, switch router , gateway, repeater, bridge, pc motherboard etc.
Our Advantage:
  1 > 10 years experience
More than 10 years experience on RJ45 Female connector developing, producing and marketing; and our products are sold to more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Female Connectors for our customers.


Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi etc are our customers.

  2 > Quality guarantee
Rigorous production and quality check in each section, providing 6 years warranty for all our RJ45 Female Connectors.
  3 > Responded within 24-hour
All enquiries will be replied within 24 hours in working day.
1. How long can I expect to get the sample and mass order.
Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.
2. Can you print our customized logo?
Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.
3. What is your payment terms?
Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.
4. How can I order?
Re :
1. Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.
2. Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3. Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4. Ship your goods by DHL/FedEx/UPS, as your request.
5. Follow-up client usage status regularly and after sales service
5. If quality issues happened, what should I do?
Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.

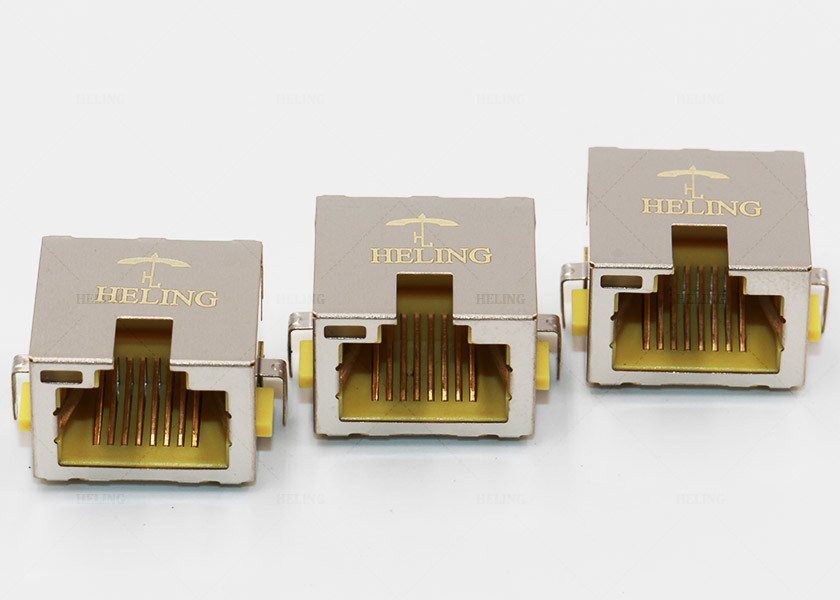

Product Image :


 Tab Up Shielded Overhangs RJ45 Board Mount Connector Through Hole PCB Mounting 0
