1.27mm Terminal Pitch 1000Base T RJ45 , Right Angle Female RJ45 Receptacle

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ6A-B211-HRL1T165-1C
Minimum Order Quantity: 2000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 300 K Pieces Per Month
Detail Information
Series: 1000Base T RJ45 Mounting Type: SMT Mounting
Orientation: Side Entry Numbers Of Positions / Contacts: 8p8c
Samples: Free LED Color: Green Yellow
Housing Color: Black Usage: For Networking And Telecom Equipment
High Light:

cat 5 1000base t


1000base t connector

Product Description

1.27 mm Terminal Pitch Right Angle 1000 Base T RJ45 Female Connector Receptacle

  •     Model number:  MJ6A-B211-HRL1T165-1C
  •     Series: 1000 Base T RJ45
  •     Gender:  RJ45 Female Connector
  •     Positions/ loads of contacts : 8P8C ( RJ45 , Ethernet )
  •     Mounting type : SMT
  •     Latch Orientation: Right Angle ( Side Entry)
  •     LED indicator : Green Yellow


Part Number: MJ6A-B211-HRL1T165-1C
Product Family:1000 Base T RJ45 Connector
Overview:RJ45 1x1 8P8C 1000 Base T RJ45 Jack with LED
Description:8 core 1x1 ports 1000 Base T RJ45 Jack connector, Brass shielded
 R / A with LED, Operating temprature range: -40℃-70℃
Series:1000 Base T RJ45 Jack
Numbers of ports:1x1
Orientation:R / A (Side entry)
Pin type:SMT solder
Positions/ Loaded contacts8P8C
Latch:Tab up
LEDs:Green / Yellow
Jack Height:13.4mm
Performance category:

1000 M

Power over Ethernet(PoE):Non-PoE
Durability(mating cycles max):750
MaterialMetal:Phosphor bronze
Resin:Liquid crystal polymer
Plating mating:Gold over Nickel
Plating termination:Gold Flash
Plating min- mating:6u"/15u"/30u" optional
Net Weight:TBA
PCB locator:Yes
PCB retention:None
PCB retaining post:T-post
PCB Thickness- Recommended1.6mm
Packaging type:Tray
Temperature range:-40℃-70℃
Turns Ratio RX:1CT:1CT
Turns Ratio TX:1CT:1CT
Configuration RX:T,C
Configuration TX:T,C
RoHS compliantYES, RoHS AND Halogen-Free
Current rating:1.5AMPS
Voltage rating:125V AC
Insulation Resistance:500MΩ mini
Withstand voltage:1000V RMS 60Hz
Contact Resistance:50mΩ Max
Grounding to PCB:YES
Grounding to Panel:YES

HELING Vertical RJ45 Jack Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.
Our vertical RJ45 Jacks are widely used in:

  • Internet Data Center
  • Web Servers
  • Switches Hubs
  • Work Station
  • Network Information Center
  • Mother board
  • Unmanaged Switches
  • Consumer devices

Product Images :

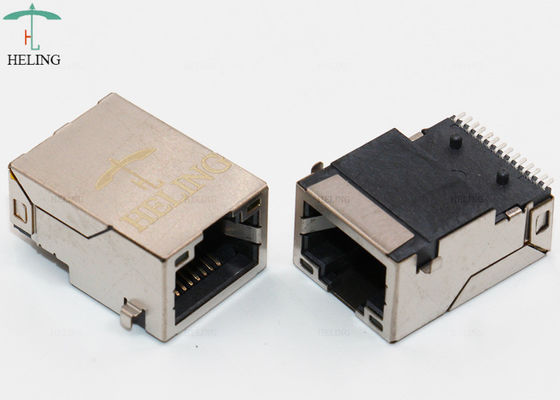

 1.27mm Terminal Pitch 1000Base T RJ45 , Right Angle Female RJ45 Receptacle 0
