8P8C Integrated Magnetics RJ45 PoE Tab UP Latch Direction RoHS Complaint

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ3B-B211-RSL05T135-1
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 300 K Pieces Per Month
Detail Information
Connector Type: PoE RJ45 Connector Series: PoE RJ45 Connector
Orientation: Right Angle PCB Mounting Method: Through Hole
LED Indicator: Yes Latch Orientation: Tab Up
Samples: Free RoHS Complaint: YES, RoHS And Halogen-Free
High Light:

rj45 poe magjack

,

ethernet lan rj 45 connector


Product Description

GRE / YEL LED Indicator Shielded PoE RJ45 Connector 8P8C with Integrated Magnetics




Description:

  - Model Number :  MJ3B-B211-RSL05T135-1

  - Port Matrix Confirguration: 1 x 1 ports
  - Orientation : Right Angle / Side Entry
  - Shielding :  Shielded

  - Latch direction : Tab UP

  - Numbers of positions / Contacts : 8P8C

  - LED Indicator : Green Yellow

Product Description

Series PoE RJ45 Connector
Part Number MJ3B-B211-RSL05T135-1
Numbers of port 1 x 1
Orientatioin Right Angle / Side Entry
Positions / Loaded contacts 8P8C
Performance Catagory Cat 5
LED Yes
EMI Finger Yes
Place of Origin China
RoHS compliant

YES, RoHS and Halogen Free



Physical
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 1u"/3u"/6u"/15u"/30u"/50u" optional
Net Weight: TBA
PCB: FR4
PCB locator: None
PCB retention: None
PCB retaining post: Hooks
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃







Product Application:


HELING Right Angle RJ45 Connector are widely used in network equipment, communication equipment, modem, hub, switch router , gateway, repeater, bridge, pc motherboard etc.

Our Advantage:

  1 > 10 years experience
More than 10 years experience on RJ45 Female connector developing, producing and marketing; and our products are sold to more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Female Connectors for our customers.



Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi etc are our customers.


  2 > Quality guarantee
Rigorous production and quality check in each section, providing 6 years warranty for all our RJ45 Female Connectors.

  3 > Responded within 24-hour
All enquiries will be replied within 24 hours in working day.

FAQ

1. How long can I expect to get the sample and mass order.

Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.

2. Can you print our customized logo?

Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.

3. What is your payment terms?

Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.

4. How can I order?

Re :
1. Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.
2. Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3. Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4. Ship your goods by DHL/FedEx/UPS, as your request.
5. Follow-up client usage status regularly and after sales service

5. If quality issues happened, what should I do?

Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.

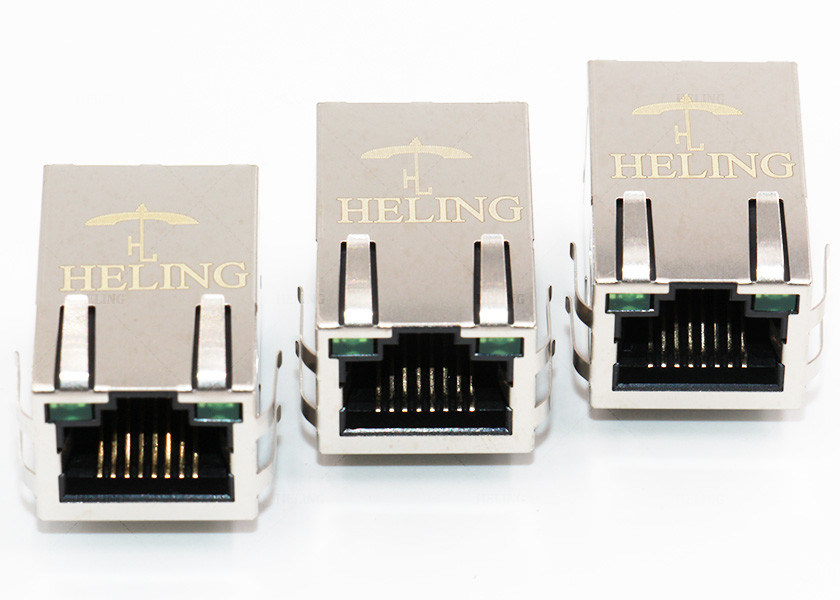

Product Image :

 8P8C Integrated Magnetics RJ45 PoE Tab UP Latch Direction RoHS Complaint 0
