Ganged 1 X 2 Ports Through Hole Network RJ45 Multiport Connector RJ45 for NAC

Basic Information
Place of Origin: China
Brand Name: HELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ562208-U012-RN2
Minimum Order Quantity: 1000
Price: Preferential & Competitive
Packaging Details: Tray as your request
Delivery Time: Stock or 1 weeks
Payment Terms: T / T, Paypal
Supply Ability: 300 K Pieces Per Month
Detail Information
Series: Rj45 Multiple Port Connectors Shielding: None
Brand Name: HELING / OEM Gender: Female
Port Configuration: 1 X 2 Entry Location: Side Entry
Latch Orientation: Tab Down Packaging Method: Tray

Product Description

Ganged 1 X 2 Ports Through Hole Network RJ45 Multiport Connector RJ45 for NAC



Description:

  •     Model number:  MJ562208-U012-RN2
  •     Series: RJ45 Multiple Port Connectors
  •     Gender:  RJ45 Female Jack
  •     Positions/ loads of contacts : 8P8C ( RJ45 , Ethernet )
  •     Mounting type : Through hole
  •     Latch Orientation: Right Angle (Side Entry)
  •     LED indicator : None

Specfication:



Part Number:  MJ562208-U012-RN2
Product Family: RJ45 Multiple Port Connectors
Overview: RJ45 1 x 2 8P8C Right Angle RJ45 Connector Blue Housing
Description: 8 core 1x2 ports Right Angle RJ45 Jack connector, Unshielded
  Operating temprature range: -40℃-70℃

General
Series: RJ45 Multiple Port Connectors
Numbers of ports: 1x2
Orientation: Right Angle ( Side entry)
Pin type: THT solder
Positions/ Loaded contacts 8P8C
Latch: Tab down
LEDs: None
Shielded: Unshielded
Jack Height: 13.4mm
Magnetic: None
Performance category:

Cat 5

Power over Ethernet(PoE): Non-PoE
Physical
Color-Resin: Blue
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating termination: Gold Flash
Plating min- mating: 6u"/15u"/30u" optional
Net Weight: TBA
PCB: FR4
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
RoHS compliant YES, RoHS AND Halogen-Free
Electrical
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES







HELING Right Angle RJ45 Connector Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.

Our Right Angle RJ45 Connector are widely used in:

  • Internet Data Center
  • Web Servers
  • Switches Hubs
  • Work Station
  • Network Information Center
  • Mother board
  • Unmanaged Switches
  • Consumer devices



Product Images :

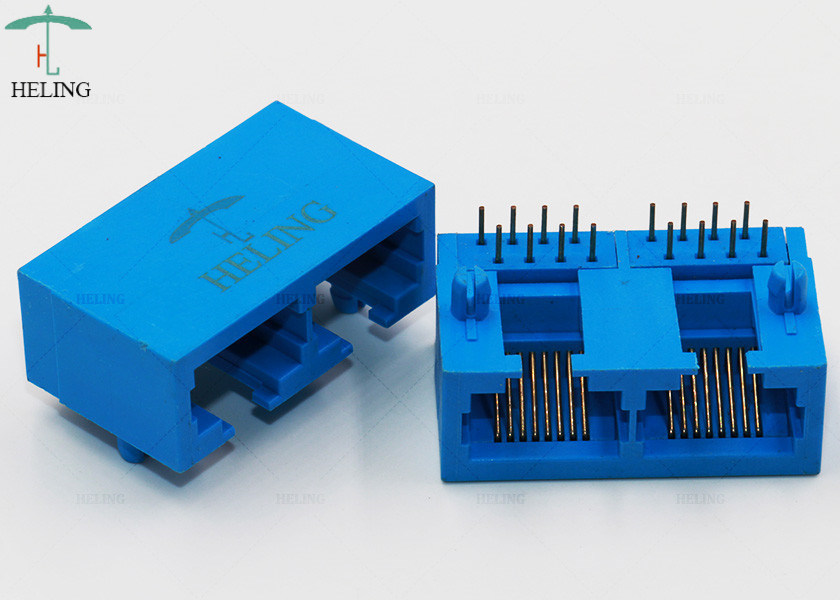

Ganged 1 X 2 Ports Through Hole Network RJ45 Multiport Connector RJ45 for NAC 0

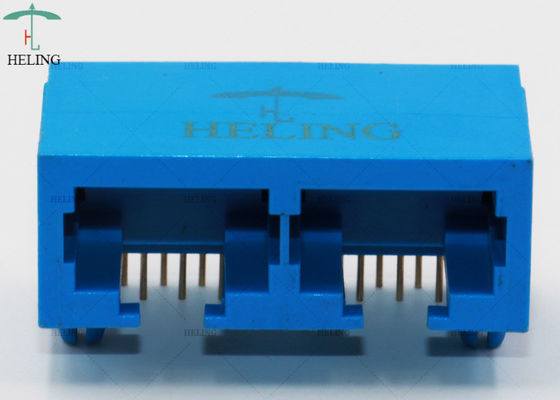

Ganged 1 X 2 Ports Through Hole Network RJ45 Multiport Connector RJ45 for NAC 1
