| Place of Origin: | China |
|---|---|
| Brand Name: | DGHELING |
| Certification: | ISO9001 , RoHS , UL , CE , REACH |
| Model Number: | MJ552188-B411-HRN1 |
| Minimum Order Quantity: | 2000 |
| Price: | Preferential & Competitive |
| Packaging Details: | Tray / Tape & Reel as your request |
| Delivery Time: | Stock or 1 weeks |
| Payment Terms: | T / T， Paypal |
| Supply Ability: | 3000 K Pieces Per Month |
| Series: | RJ45 Single Port | Numbers Of Ports: | 1 |
|---|---|---|---|
| Port Matrix Configuration: | 1x1 | Orientation: | Right Angle(Side Entry) |
| Positions/Loaded Contacts: | 8P8C | Latch: | Tab Up |
| Pin Type: | THT Solder | RoHS Compliant: | Yes, RoHS And Halogen-Free |
| Highlight: | rj45 female end,pcb jack socket |
||

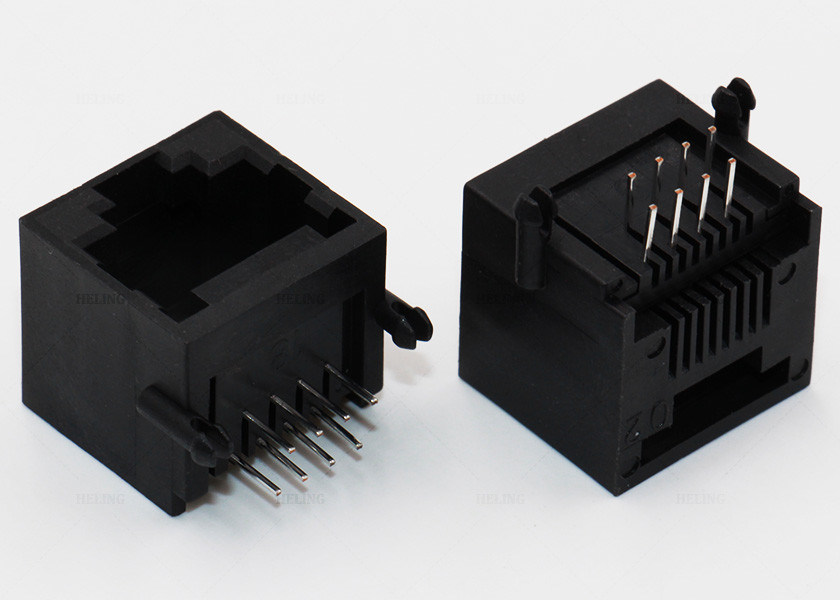

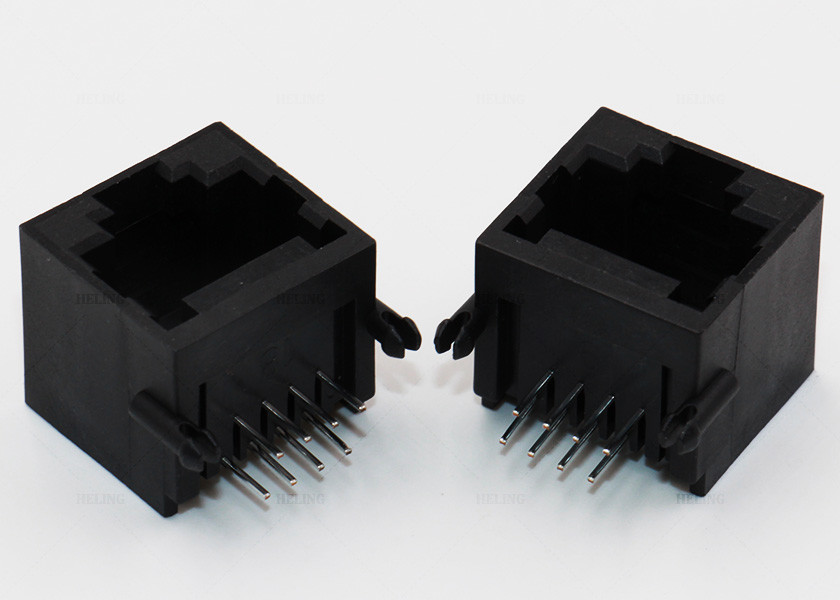

90 Degree Ethernet Connector RJ45 Single Port 8P8C Jacks
Heling operates and specializes in the provision of Single port RJ45 Connector networking connectivity alongside solutions in the field of telecom and datacom; Heling offers a broad range of Single port RJ45 Connector for your data and signal transmissions.
Our Single port RJ45 Connector are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded, with EMI Finger/LED options.
Our Single port RJ45 Connector are widely used in Communication equipment, Telephone, Network Equipment, Hub, Switch, Router, Modem, PC mainboard etc.
| 90 Degree Ethernet Connector RJ45 Single Port 8P8C Jacks | |||||||
| Part Number: | MJ552188-B411-HRN1 | ||||||
| Product Family: | RJ45 Single Port | ||||||
| Overview: | RJ45 1x1 ports 8P8C Jacks | ||||||
| Description: | 1x1 ports RJ45 connector, Side Entry, Unshielded | ||||||
| Operating temprature range: -40℃-70℃ | |||||||
| General | |||||||
| Series: | Single port RJ45 Connector | ||||||
| Numbers of ports: | 1x1 | ||||||
| Orientation: | Right Angle | ||||||
| Pin type: | THT solder | ||||||
| Positions/ Loaded contacts: | 8P8C | ||||||
| Latch: | Tab Up | ||||||
| LEDs: | None | ||||||
| Shielded: | None | ||||||
| Jack Height: | |||||||
| Magnetic: | None | ||||||
| Performance category: | / | ||||||
| Power over Ethernet(PoE): | Non-PoE | ||||||
| Physical | |||||||
| Color-Resin: | Black | ||||||
| Durability(mating cycles max): | 750 | ||||||
| Material | Metal: | Phosphor bronze | |||||
| Resin: | Liquid crystal polymer | ||||||
| Plating mating: | Gold over Nickel | ||||||
| Plating termination: | Gold Flash | ||||||
| Plating min- mating: | 1u"/3u"/6u"/15u"/30u"/50u" optional | ||||||
| Net Weight: | TBA | ||||||
| PCB: | FR4 | ||||||
| PCB locator: | Yes | ||||||
| PCB retention: | None | ||||||
| PCB retaining post: | T-post | ||||||
| PCB Thickness- Recommended | 1.6mm | ||||||
| Packaging type: | Tray | ||||||
| Temperature range: | -40℃-70℃ | ||||||
| Turns Ratio RX: | 1CT:1CT | ||||||
| Turns Ratio TX: | 1CT:1CT | ||||||
| Configuration RX: | T,C | ||||||
| Configuration TX: | T,C | ||||||
| RoHS compliant: | YES, RoHS AND Halogen-Free | ||||||
| Electrical | |||||||
| Current rating: | 1.5AMPS | ||||||
| Voltage rating: | 125V AC | ||||||
| Insulation Resistance: | 500MΩ mini | ||||||
| Withstand voltage: | 1000V RMS 60Hz | ||||||
| Contact Resistance: | 50mΩ Max | ||||||
| Grounding to PCB: | YES | ||||||
| Grounding to Panel: | YES | ||||||
