90 Degree DIP USB 3.0 Connector Through - Hole Height Over PCB 6.26mm

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: UB9NF-XXX11-YXRD003
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Product Family: USB 3.0 Brand: HELING
Form Factor: USB Cage Type: Single Port
Port Matrix Configuration: 1x1 Application: PCB
Shipping: DHL/ FedEx/ UPS /TNT OEM / ODM: Welcome
High Light:

type a connector

,

type b connector


Product Description

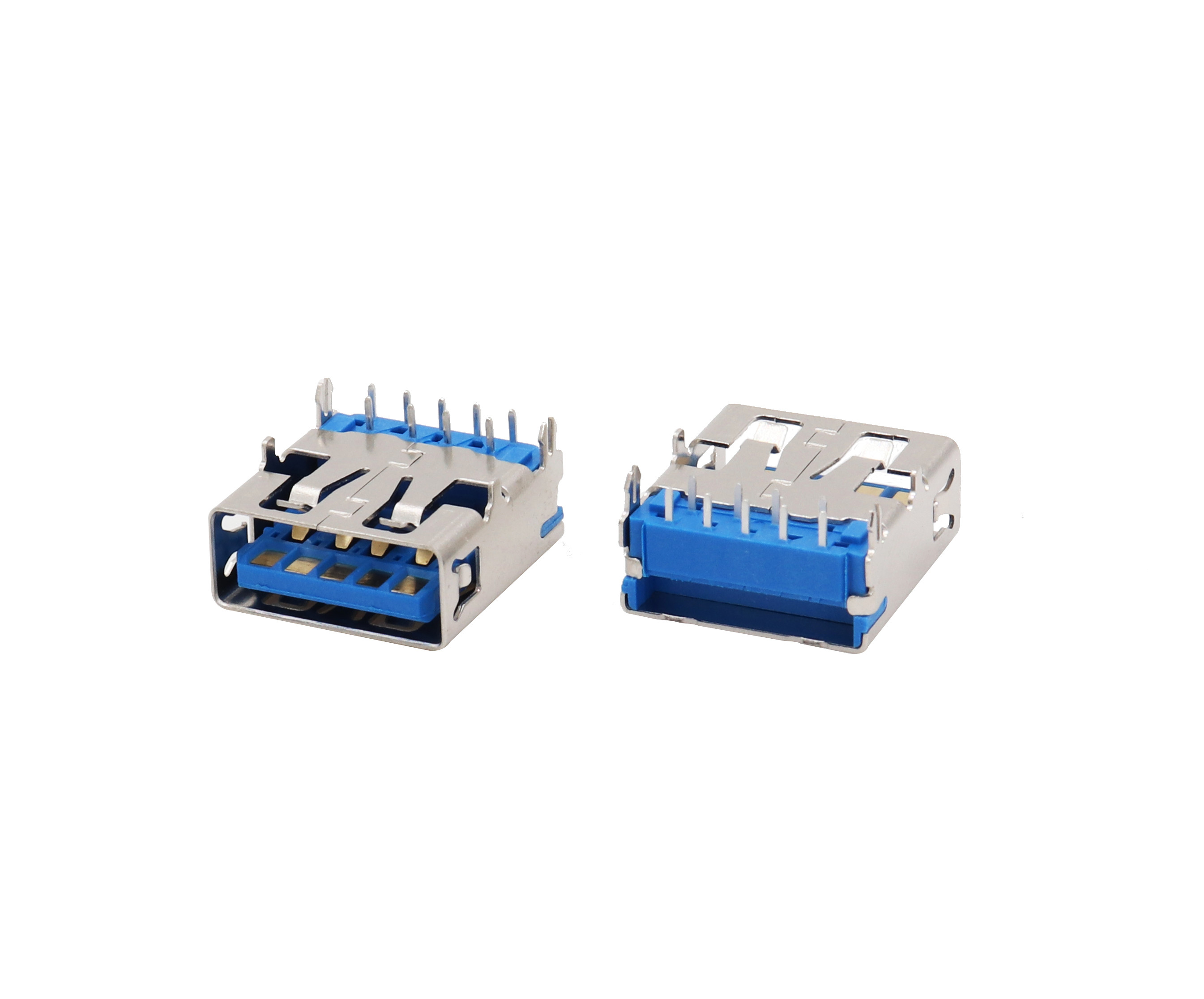

90 Degree DIP USB3.0 Connector Female Thru -Hole Height over PCB 6.26mm



Heling USB3.0 Connector Application:



Computer Cable Controller
Telecommunication Equipment Alarm Security Appliance instruments Auto
PC motherboard Comsumer Devices  Laptop
Hubs Splitters An unmanaged switch


***Please Click Here To Download Our Drawings





Quick Details:

1. Contact Current Rating:

    1.8 Amperes for PIN 1 and PIN 4

    0.25 Amperes for other contacts



2. Dielectric Withstanding Voltage: AC 100V (RMS)



3. Insulation Resistance: 100Megohms Mininum



4. Contact Resistance:

       30mΩ Max for PIN 1 & PIN 4

       50mΩ Max for other contacts



5. Mechanical Characterists:

    Mating Force: 35N Maximum

    Unmating Force: 10N minimum

                                 8N After Durability



6. Material:

       Housing: PBT

       Contact: Copper Alloy

       Shell: SUS



7. Plating:

      Contact: Au Plated on contact Area

                    Tin Plated on Solder Area

                    Nickel underplating over all

       Shell:   Nickel plated



8. Operating Temperature: -55℃ to 85℃







Our Advantage:


1 > 10 years experience
More than 10 years experience on RJ45 Female connector developing, producing and marketing; and our products are sold to more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Female Connectors for our customers.



Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi are our customers


  2 > Quality guarantee
Rigorous production and quality check in each section, providing 6 years warranty for all our RJ45 Female Connectors.

  3 > Responded within 24-hour
All enquiries will be replied within 24 hours in working day.



FAQ

1. How long can I expect to get the sample and mass order.

Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.

2. Can you print our customized logo?

Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.

3. What is your payment terms?

Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.

4, How can I order?

Re :
1. Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.
2. Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3. Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4. Ship your goods by DHL/FedEx/UPS, as your request.
5. Follow-up client usage status regularly and after sales service

5. If quality issues happened, what should I do?

Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.



Our Mission:



We provide a one-stop-solution for developers and OEMs, offering a complete service from datacom connectivity solution, to structure customization and even product branding and enclosure design. Our mission is to provide a , and so we can proudly offer our customers faster time-to-market and lower costs
