Single Port 8p8c Low Profile RJ45 Jack Latch Tab Up THT R / A 90 Degree

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ3288-B011-NRL2
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 2 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Series: Low Profile RJ45 Jack Business Type: Manufacturer
Gender: Female Keywords: Low Profile RJ45 Jack
Rj45 Connector Ocl: 350uh Min Rj45 Connector Tab Direction: Tap Up/Tap Down
Pin: 8p8c
High Light:

low profile rj45 connector


low profile cat5

Product Description

Single Port 8p8c Low Profile RJ45 Jack Latch Tab Up; THT ; R / A 90 Degree



1. Low Profile RJ45 Jack customized requirements are accepted:


1. With or without transformers

2. With or withour PoE function

3. Customized length of Pin

4. Customized housing color

5. Customized contact area gold plating

6. Customized LED Indicator color

7. Customized Logo printing

 2. Low Profile RJ45 Jack specification:

Single Port 8p8c Low Profile RJ45 Jack Latch Tab Up; THT ; R / A 90 Degree
Part Number:  MJ3288-B011-NRL2
Product Family: 1 x 1 Low Profile RJ45 Jack
Overview: Low Profile RJ45 Jack 1x1 ports 8P8C
1x1 ports RJ45 connector, Right angle, unshielded
Operating temprature range: -40℃-70℃
General- Low Profile RJ45 Jack
Series: 1 x 1 Low Profile RJ45 Jack
Numbers of ports: 1 x 1
Orientation: Right angle(side entry)
Pin type: THT solder
Positions/ Loaded contacts: 8P8C
Latch: Tab up
Shielded: YES
Jack Height: 12mm
Magnetic: None
Performance category: None
Power over Ethernet(PoE): Non-PoE
Physical - Low Profile RJ45 Jack
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 1u"/3u"/6u"/15u"/30u"/50u"  optional
Net Weight: TBA
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
Turns Ratio RX: /
Turns Ratio TX: /
Configuration RX: /
Configuration TX: /
RoHS compliant: YES, RoHS AND Halogen-Free
Electrical - Low Profile RJ45 Jack
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES

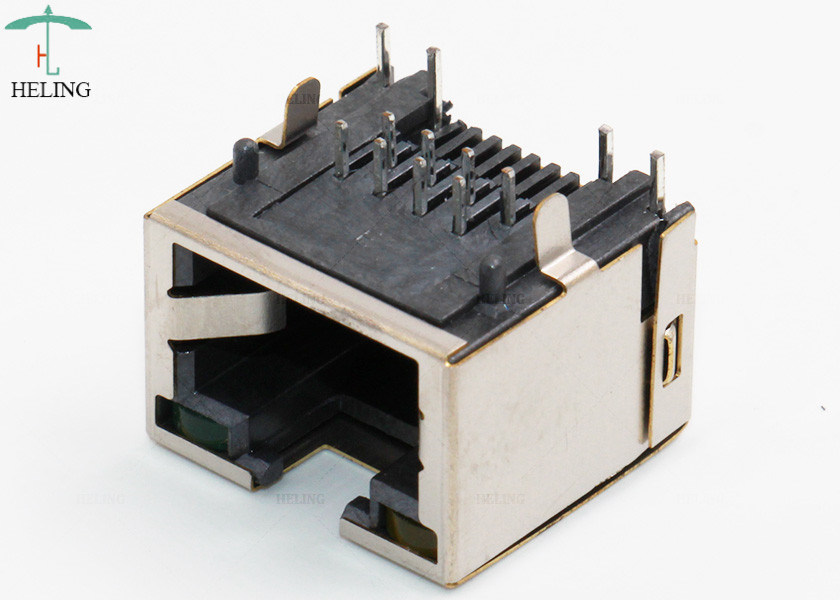

3. Low Profile RJ45 Jack Product Image :
Single Port 8p8c Low Profile RJ45 Jack Latch Tab Up THT  R / A 90 Degree 0


4 FAQ for Low Profile RJ45 Jack

1. How long can I expect to get the sample and mass order.

Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.

2. Can you print our customized logo?

Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.

3. What is your payment terms?

Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.

4. How can I order?

Re :
1. Choose the Low Profile RJ45 Jack you need and send us an inquiry, we will reply in 24 hours.
2. Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3. Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4. Ship your goods by DHL/FedEx/UPS, as your request.
5. Follow-up client usage status regularly and after sales service

5. If quality issues happened, what should I do?

Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.


5  Product Range of Low Profile RJ45 Jack

  • Offset/Overhangs Low Profile RJ45 Jack
  • 100/1000 base - T Integrated Magnetics Low Profile RJ45 Jack
  • Low Profile SMT RJ45 Modular Jack
  • Low Profile RJ45 Through Hole Connector
  • Single Port Low Profile RJ45 Jack
  • 1xN Multi-port Low Profile RJ45 Jack
  • 2xN Multi-port Low Profile RJ45 Jack
  • PoE Low Profile RJ45 Jack
  • Low Profile RJ45 Jack + USB/HDMI
  • Low Profile RJ45 Jack Ethernet LAN Transformer

Welcome OEM/ODM orders.
