2 x 2 Ports Stacked RJ45 Connectors Shielding Through Hole Type PBT Material

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ5988-B022-RS
Minimum Order Quantity: 2000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Type: Stacked RJ45 Connector Insulation Resistance: ≥500MΩ
Operating Temperature: -40℃ To 85℃ Material: ABS/PBT/PA66/LCP
High Light:

rj45 multi port jack


multiple rj45 sockets

Product Description

2 x 2 Ports Stacked RJ45 Connectors Shielding Through Hole Type Multi Port RJ45


1, Stacked RJ45 Connectors customized requirements are accepted:


1 , with or without transformers

2 , with or withour PoE function

3 , Customized length of Pin

4 , Customized housing color

5 , Customized contact area gold plating

6 , Customized LED Indicator color

7 , Customized Logo printing

 2, Stacked RJ45 Connectors specification:

2 x 2 Ports Stacked RJ45 Connectors Shielding Through Hole Type Multi Port RJ45
Part Number:  MJ5988-B022-RS
Product Family: 2 x 2 Stacked RJ45 Connectors
Overview:  Stacked RJ45 Connectors 2x2 ports
2x2 ports Stacked RJ45 Connectors, Side Entry, THT
Operating temprature range: -40℃-70℃
General- Stacked RJ45 Connectors
Series: 2 x 2 Stacked RJ45 Connectors
Numbers of ports: 2 x 2
Orientation: Side Entry Stacked RJ45 Connectors
Pin type: THT solder
Positions/ Loaded contacts: 8P8C
Latch: Tab up
LEDs: None
Shielded: Yes
Jack Height: 12mm
Magnetic: Yes
Performance category: Cat 5e
Power over Ethernet(PoE): Non-PoE
Physical - Stacked RJ45 Connectors
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 1u"/3u"/6u"/15u"/30u"/50u"  optional
Net Weight: TBA
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
Turns Ratio RX: /
Turns Ratio TX: /
Configuration RX: /
Configuration TX: /
RoHS compliant: YES, RoHS AND Halogen-Free
Electrical - Stacked RJ45 Connectors
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES

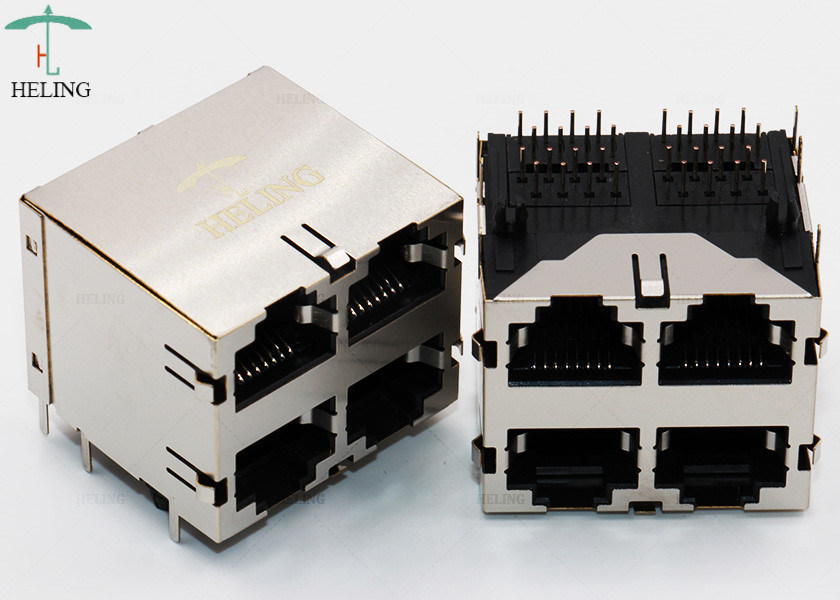

3, Magnetic RJ45 Connector Product Image :

2 x 2 Ports Stacked RJ45 Connectors Shielding Through Hole Type PBT Material 0




4 FAQ for Stacked RJ45 Connectors

1, How long can I expect to get the sample and mass order.

Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.

2, Can you print our customized logo?

Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.

3, What is your payment terms?

Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.

4, How can I order?

Re :
1, Choose the Stacked RJ45 Connectors you need and send us an inquiry, we will reply in 24 hours.
2, Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3, Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4, Ship your goods by DHL/FedEx/UPS, as your request.
5, Follow-up client usage status regularly and after sales service

5, If quality issues happened, what should I do?

Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.


5  Product Range of Stacked RJ45 Connectors

  • Offset/Overhangs Magnetic RJ45 Connector
  • 100/1000 base - T Integrated Magnetic RJ45 Connector
  • Low Profile Magnetic RJ45 Connector
  • Stacked RJ45 Connectors Through Hole Connector
  • Single Port Magnetic RJ45 Connector
  • 1xN Magnetic RJ45 Connector
  • 2xN Stacked RJ45 Connectors
  • PoE Magnetic RJ45 Connector
  • Stacked RJ45 Connectors + USB/HDMI
  • Magnetic RJ45 Connector Ethernet LAN Transformer
