|Place of Origin:||China|
|Certification:||ISO9001 , RoHS , UL , CE , REACH|
|Minimum Order Quantity:||2000|
|Price:||Preferential & Competitive|
|Packaging Details:||Tray / Tape & Reel as your request|
|Delivery Time:||Stock or 4 weeks|
|Payment Terms:||T / T， Paypal|
|Supply Ability:||1,000K Pieces Per Month|
|Product Family:||RJ45 Modular Connector||OEM / ODM:||Welcome|
rj45 multi port jack,
multiple rj45 sockets

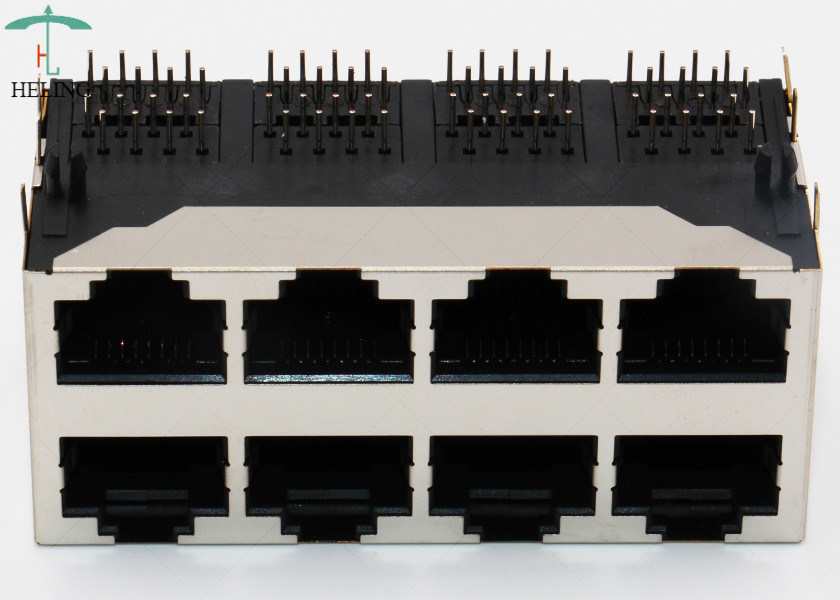

Side Entry 2x4 Ports RJ45 Jack Multiport Modular Connector Thru-hole MJ5988-B024-RF4
HELING supply Modular Connector to Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi and so on.
Our Modular Connector are sold to more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of Modular Connector for our customers.
As a professional ISO9001:2008 certified manufacturer, HELING is always engaged in R&D, production and marketing of Low profile / Mini / Waterproof Modular Connector alongside solutions, with emphasis on mass production and achieving the best price/quality ratio.
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 20MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Insertion force: 0.9kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 720 mating cycles minimum
Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), or PA46 (UL94V-0)
Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel
hield: 0.20~0.25mm thickness brass with tin plated
Gold Plating: 1u" , 3u" , 6u" , 15u" , 30u" , 50u" for options.
|Color - Resin :||Black|
|Durability :||750 mating cycles min|
|Material :||PBT with phosphor bronze|
|Temerature range:||-40℃ - 70℃|
|Power over Ethernet||Non-PoE|
1 > Customer First , Superior Quality
Customer First , Superior Quality is our culture, we always believe that our own success is inextricably linked to our finest product quality and our customer's success.
2 > 6 Years Warranty
6 years warranty for all our Modular Connector
3 > 24-hour on-line service
All enquiries will be replied within 24 hours in working day.
Why choose us
1) Your inquiry related to our products or prices will be replied in 24hours.
2) Well-trained and experienced staffs to answer all your inquires in fluent English
3) OEM and ODM,any your customized Modular Connector we can help you design put into product
4) Distributer ship are offered for your unique design and some our current models
5) Protection of your sales area,ideas of design and all your private information
6) Have the perfect after-sales service for all our clients
How to order
1) Choose the Modular Connector you need and send us an inquiry, we will reply in 24 hours.
2) Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3) Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4) Ship your goods by DHL/FedEx/UPS, as your request.
5) Follow-up client usage status regularly and after sales service
Product display :
