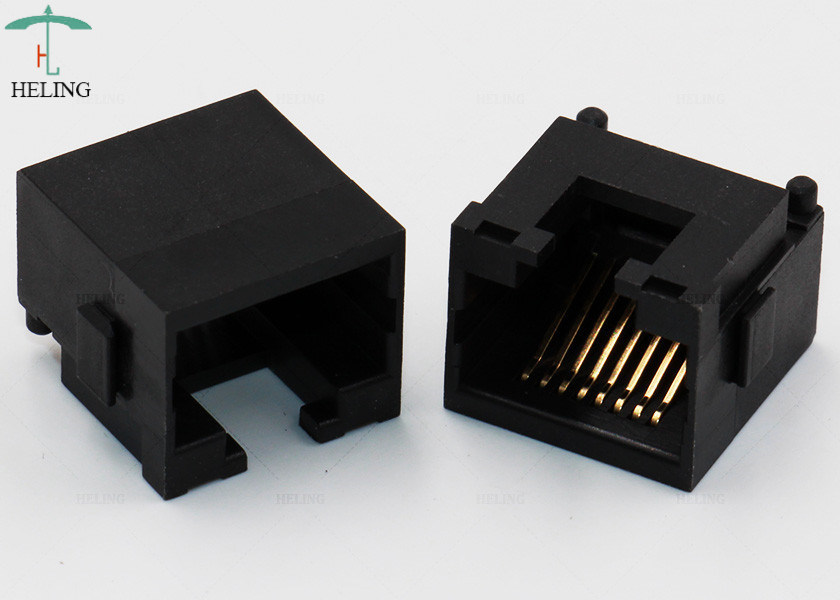

Single Port Side Entry RJ45 Lan Jack 8P8C Modular Connector SMT Type MJ88-B211-JRN2
Documents:
PLEASE CLICK HERE TO DOWNLOAD THE DRAWINGS: MJ88-BX11-JRS2.pdf
| Part Number: | MJ88-B211-JRN2 | ||||||
| Product Family: | RJ45 Lan Jack 8P8C SMT type | ||||||
| Overview: | SMT RJ45 1x1 8P8C Modular Jack | ||||||
| Description: | 8 core 1x1 ports SMT RJ45 connector, Unshielded, without LED | ||||||
| Right Angle / Side Entry, Operating temprature range: -40℃-70℃ | |||||||
| General | |||||||
| Series: | Low profile SMT RJ45 | ||||||
| Numbers of ports: | 1x1 | ||||||
| Orientation: | Right Angle (Side entry) | ||||||
| Pin type: | SMT | ||||||
| Positions/ Loaded contacts | 8P8C | ||||||
| Latch: | Tab Down | ||||||
| LEDs: | None | ||||||
| Shielded: | None | ||||||
| Jack Height: | /mm | ||||||
| Magnetic: | No | ||||||
| Performance category: | Cat 5 | ||||||
| Power over Ethernet(PoE): | Non-PoE | ||||||
| Physical | |||||||
| Color-Resin: | Black | ||||||
| Durability(mating cycles max): | 750 | ||||||
| Material | Metal: | Phosphor bronze | |||||
| Resin: | Liquid crystal polymer | ||||||
| Plating mating: | Gold over Nickel | ||||||
| Plating termination: | Gold Flash | ||||||
| Plating min- mating: | 3u" / 6u"/15u"/30u" optional | ||||||
| Net Weight: | TBA | ||||||
| PCB: | FR4 | ||||||
| PCB locator: | Yes | ||||||
| PCB retention: | None | ||||||
| PCB Thickness- Recommended | 1.6mm | ||||||
| Packaging type: | Tray | ||||||
| Temperature range: | -40℃-70℃ | ||||||
| RoHS compliant | YES, RoHS AND Halogen-Free | ||||||
| Electrical | |||||||
| Current rating: | 1.5AMPS | ||||||
| Voltage rating: | 125V AC | ||||||
| Insulation Resistance: | 500MΩ mini | ||||||
| Withstand voltage: | 1000V RMS 60Hz | ||||||
| Contact Resistance: | 50mΩ Max | ||||||
| Grounding to PCB: | YES | ||||||
| Grounding to Panel: | YES | ||||||
RJ45 Lan Jack Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 20MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
RJ45 Lan Jack Mechanical:
Insertion force: 0.9kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 720 mating cycles minimum
RJ45 Lan Jack Materials:
Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), or PA46 (UL94V-0)
Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel
hield: 0.20~0.25mm thickness brass with tin plated
Gold Plating: 1u" , 3u" , 6u" , 15u" , 30u" , 50u" for options.
HELING supply RJ45 Lan Jack to Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi and so on.
Our RJ45 Lan Jack are sold to more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Lan Jack for our customers.
As a professional ISO9001:2008 certified manufacturer, HELING is always engaged in R&D, production and marketing of Low profile / Mini / Waterproof RJ45 Lan Jack alongside solutions, with emphasis on mass production and achieving the best price/quality ratio.
Characteristics :
| Part Number: | MJ88-B211-JRN2 |
| Color - Resin : | Customized |
| Durability : | 750 mating cycles min |
| Material : | PBT with phosphor bronze |
| Temerature range: | -40℃ - 70℃ |
| RoHS compliant | Yes |
| Performance category | / |
| Power over Ethernet | Non-PoE |
| PCB Thickness-Recommended | 1.6mm |
