8 Pin 4 Port Unshielded Ganged RJ45 Female Connector With Gray Housing

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ5608-G014-HRN2
Minimum Order Quantity: 5000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Product Name: 1 X 4 Ports RJ45 Female Connector Model Number: MJ5608-G014-HRN2
Shielded: No Housing Color: Gray
Positions / Loaded Contacts: 8 Positions 8 Contacts Material: PBT
RoHS Compliant: Yes Entry Location: Side Entry
High Light:

Ganged RJ45 Female Connector

,

Unshielded RJ45 Female Connector

,

Gray Housing RJ45 Female Jack


Product Description

Unshielded Ganged RJ45 Female Connector , Gray Housing 4 Port Rj45 8 Pin Connector



Description

  •   Part Number : MJ5608-G014-HRN2



  •   Product Family : 4 Ports 1 x 4 RJ45 Female Connector



  •   Overview : 8P8C 1 x 4 Ports  Unshielded RJ45 Modular Jack

                              Right Angle ( Side Entry ), Tab down , 11.5mm Height , Cat 5



  •   Applications :    1 , Networking and telecom

                                      2 , Office and home equipment



                                      3 , Consumer Goods







Documents



*** CLICK HERE TO DOWNLOAD THE DRAWING





Physical Specification



Color-Resin: Grey
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 1u"/3u"/6u"/15u"/30u"/50u" optional
Net Weight: TBA
PCB: FR4
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃



Why Choose us?



Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi are our customers.



Our RJ45 female connector are widely used for Telecom, Networking, Security System, smart home, Multi-Media equipment and POS Terminals.


We supply RJ45 Female connectors for more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Female Connectors for our customers.



Product Range:

  • Offset/Overhangs PCB RJ45 Jack
  • 100/1000 base - T Integrated Magnetics RJ45 modular jacks
  • Low Profile SMT RJ45 Female Connector
  • Low Profile RJ45 Through Hole Connector
  • Single Port RJ45 Female Connector
  • 1xN Multi-port RJ45 Female Connector
  • 2xN Multi-port RJ45 Female Connector
  • PoE RJ45 Connector
  • Modular jacks + USB/HDMI
  • Ethernet LAN Transformer

Welcome OEM/ODM orders.


Our advantage:

  1 > Customer First , Superior Quality
Customer First , Superior Quality is our culture, we always believe that our own success is inextricably linked to our finest product quality and our customer's success.

  2 > 6 Years Warranty
6 years warranty for all our RJ45 Female Connectors.

  3 > 24-hour on-line service
All enquiries will be replied within 24 hours in working day.





How can I order ?



1, Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.



2, Confirm the drawings and order, we will send you a proforma invoice for you to make the payment(via T/T, Paypal and L/C is acceptable when total amount is more than US$10,000.)



3, Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.



4, Ship your goods by DHL/FedEx/UPS, as your request.



5, Follow-up client usage status regularly and after sales service.





FAQ:



1 , How long can I expect to get the sample and mass order.

For sample order, the delivery time is in 2-3 weeks, and for mass order, the delivery time is in 3-4 weeks.





2 , What is your payment terms?

B.30% deposit before production and 70% payment before shipment. T/T, Western Union or Paypal are acceptable. All banking charges outside China are on buyers.



3 ,  How do you ship the goods?

Usually the goods are shipped by FedEx, DHL or UPS. If you have any express account, please let us know.



4 ,  Can you do our designs?

Yes, of course. We have a professional design team and the complete production lines. Just provide the details to us, we will be happy to help you out.

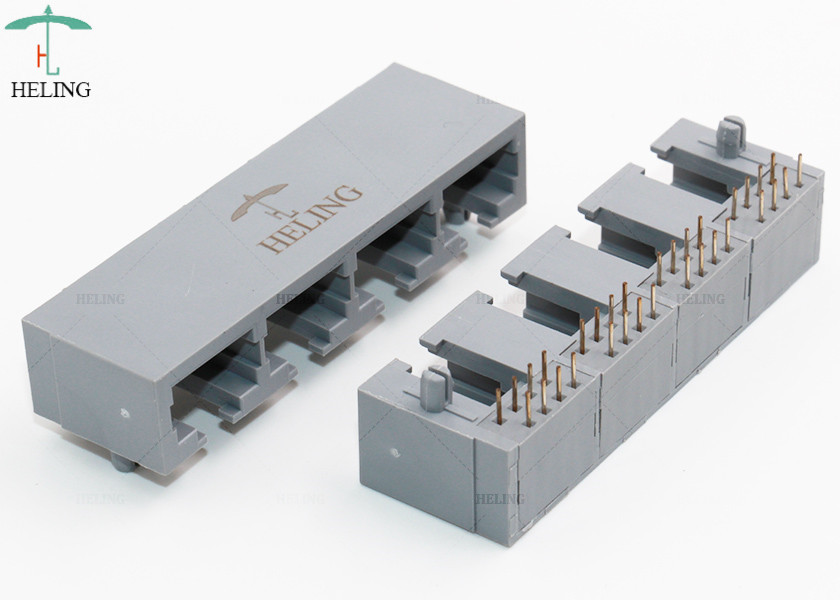

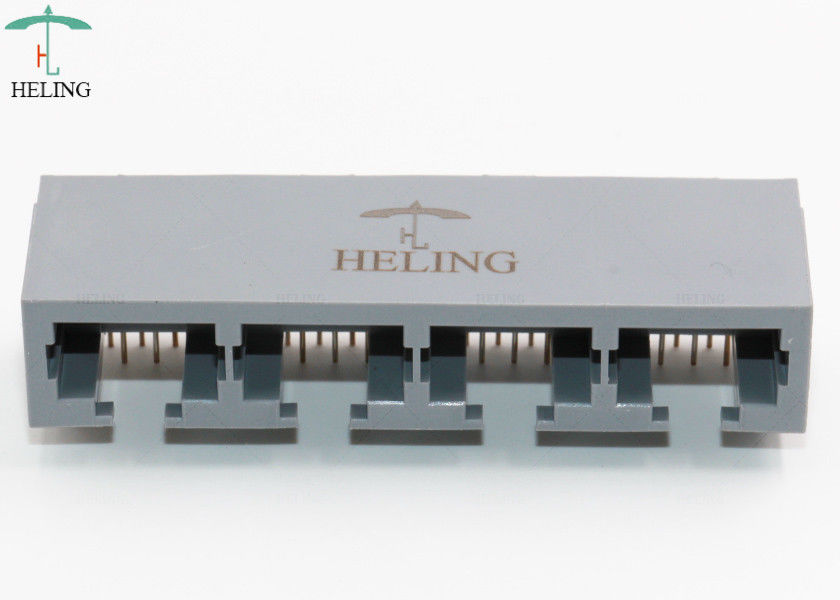

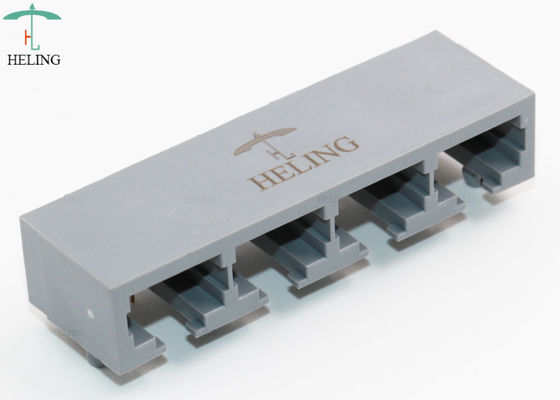

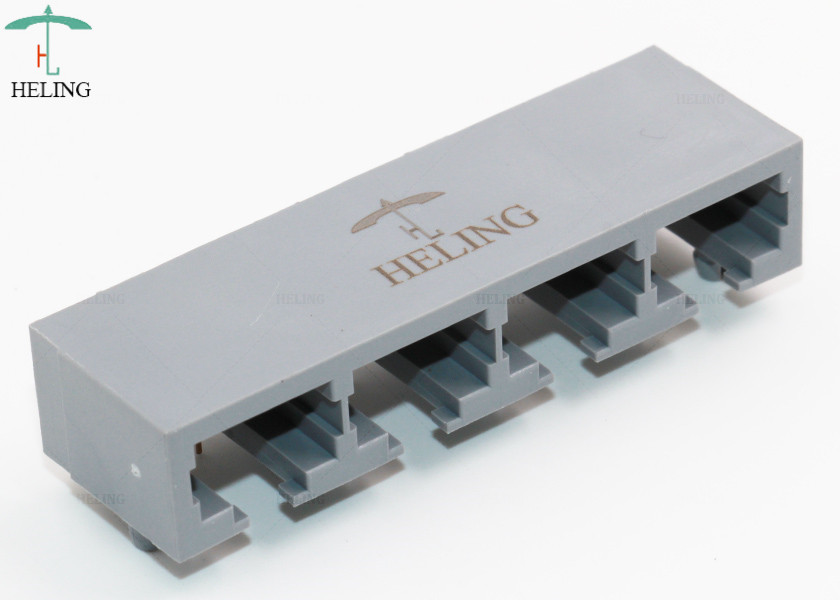

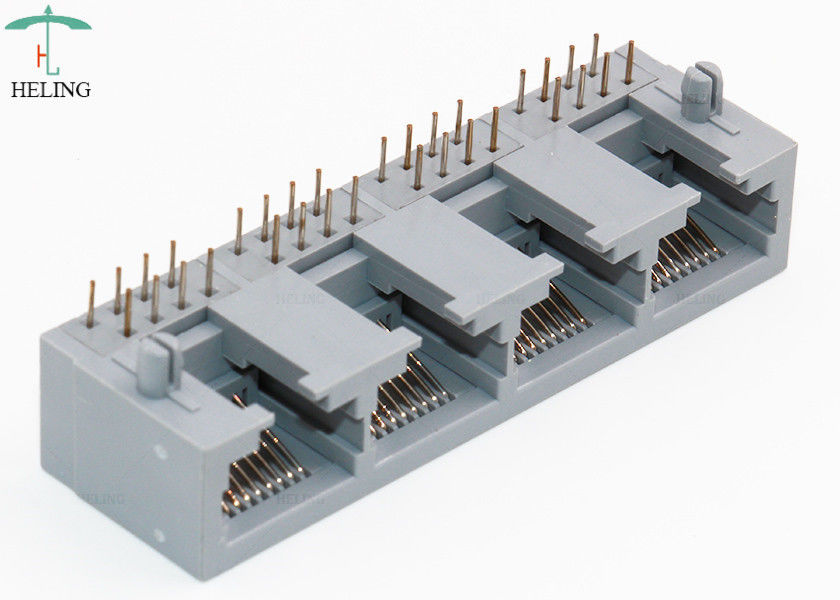

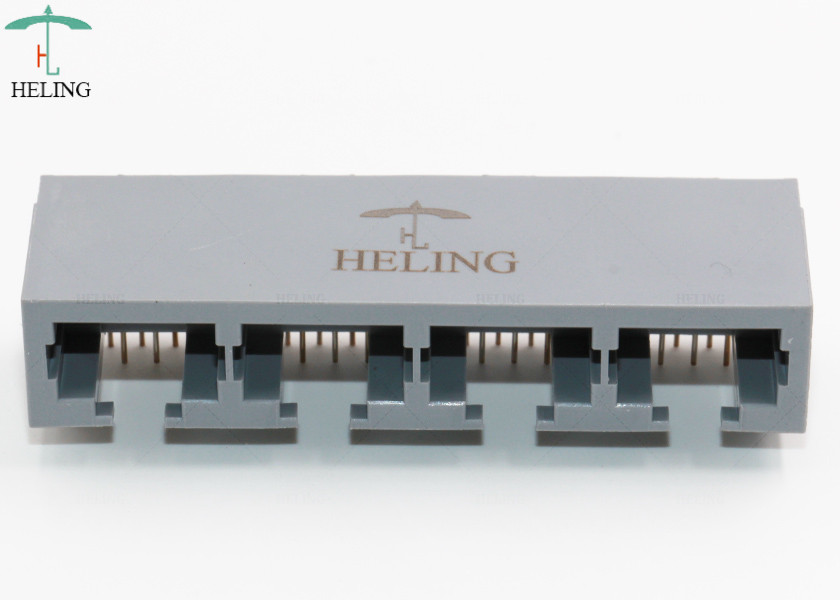

Product Image :



8 Pin 4 Port Unshielded Ganged RJ45 Female Connector With Gray Housing 0

8 Pin 4 Port Unshielded Ganged RJ45 Female Connector With Gray Housing 1

8 Pin 4 Port Unshielded Ganged RJ45 Female Connector With Gray Housing 2
