90 Degree Ethernet PoE RJ45 Jack 1 x 1 Port -40℃ - 70℃ Operating Temperature Range

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ3B-B211-RL25T017-0
Minimum Order Quantity: 5000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 300 K Pieces Per Month
Detail Information
Series: PoE RJ45 Connector Numbers Of Ports: 1
Port Matrix Configuration: 1x1 Orientation: Right Angle(Side Entry)
Positions/Loaded Contacts: 8P8C Latch: Tab Up
Pin Type: THT Solder RoHS Compliant: Yes, RoHS And Halogen-Free
High Light:

poe rj45 jack

,

rj45 poe magjack


Product Description

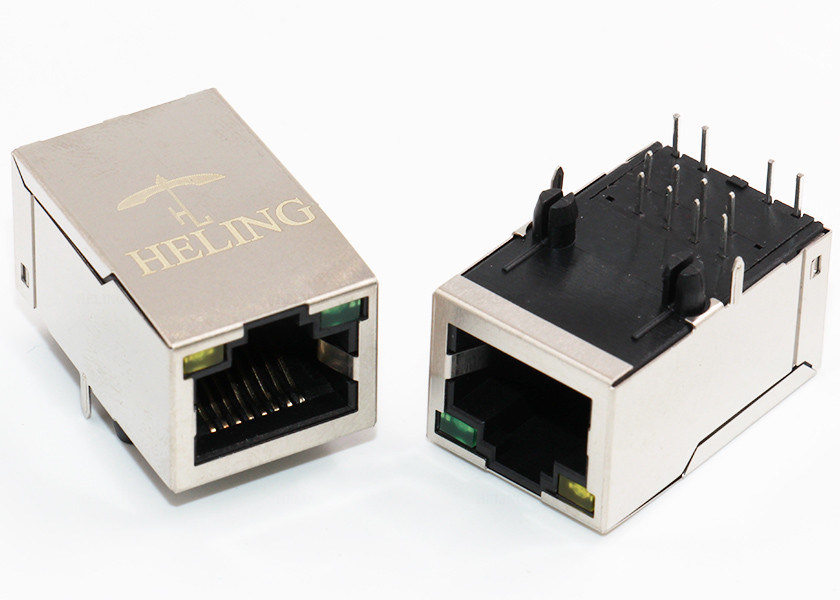

Shielded Ethernet POE RJ45 Connector Jack Right Angle with LED MJ3B-B211-RL25T017-0

Heling operates and specializes in the provision of PoE RJ45 Connector​ networking connectivity alongside solutions in the field of telecom and datacom; Heling offers a broad range of PoE RJ45 Connector​ for your data and signal transmissions.

Our PoE RJ45 Connector​ are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded, with EMI Finger/LED options.

Our PoE RJ45 Connector​ are widely used in Communication equipment, Telephone, Network Equipment, Hub, Switch, Router, Modem, PC mainboard etc.

Shielded Ethernet POE RJ45 Connector Jack Right Angle with LED MJ3B-B211-RL25T017-0
Part Number: MJ3B-B211-RL25T017-0
Product Family:PoE RJ45 Connector
Overview:RJ45 1x1 ports 8P8C Jacks
Description:


1x1 ports RJ45 connector, Top Entry,Shielded
Operating temprature range: -40℃-70℃
100 base-T integrated magnetics with PoE
General
Series:PoE RJ45 Connector
Numbers of ports:1x1
Orientation:Right Angle
Pin type:THT solder
Positions/ Loaded contacts:8P8C
Latch:Tab Up
LEDs:Yes
Shielded:YES
Jack Height:13.2mm
Magnetic:None
Performance category:/
Power over Ethernet(PoE):Non-PoE
Physical
Color-Resin:Black
Durability(mating cycles max):750
MaterialMetal:Phosphor bronze
Resin:Liquid crystal polymer
Plating mating:Gold over Nickel
Plating termination:Gold Flash
Plating min- mating:1u"/3u"/6u"/15u"/30u"/50u"  optional
Net Weight:TBA
PCB:FR4
PCB locator:Yes
PCB retention:None
PCB retaining post:T-post
PCB Thickness- Recommended1.6mm
Packaging type:Tray
Temperature range:-40℃-70℃
Turns Ratio RX:1CT:1CT
Turns Ratio TX:1CT:1CT
Configuration RX:T,C
Configuration TX:T,C
RoHS compliant:YES, RoHS AND Halogen-Free
Electrical
Current rating:1.5AMPS
Voltage rating:125V AC
Insulation Resistance:500MΩ mini
Withstand voltage:1000V RMS 60Hz
Contact Resistance:50mΩ Max
Grounding to PCB:YES
Grounding to Panel:YES
