Shielded 1000 Base - T Magnetic RJ45 Jack Tab Up With LED And EMI Finger

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ3B-B211-RSL05T135-1
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 300 K Pieces Per Month
Detail Information
Series: RJ45 Jack Female Brand Name: HELING / OEM
Gender: Female Magnetic: YES
Performance Category: 1000 Mbps Numbers Of Ports: 1
PIN Type: THT Solder Latch: Tab Up
High Light:

magnetic rj45 jack


magnetic modular jacks

Product Description

Shielded 1000 Base - T Integrated Magnetic R45 with LED and EMI Finger


HELING Integrated Magnetic RJ45 is mainly used for 100/1000 Mbps Adapter , PCMCIA Network card , Hub Switch, Network Switch, Router , Fiber Optical Transceiver, IP telephone, Set-top box, IC camera, telecom equipment , Modem, HomePNA, DSL/ADSL and so on.


Quick Details:


  •     Model number:  MJ3B-B211-RSL05T135-1
  •     Connector Type: RJ45 female connector
  •     Positions/ loads of contacts : 8P8C ( RJ45 , Ethernet )
  •     Numbers of Ports : 1 x 1
  •     Speed : 1000 Mbps
  •     PCB mounting type : Through Hole solder
  •     Latch Orientation: Right Angle



Part Number:  MJ3B-B211-RSL05T135-1
Product Family: 1000 base -t Integrated Magnetic R45
Overview: RJ45 1x1 8P8C Modular Jack with 1000 base-t integrated magnetic
Description: 8 core 1x1 ports RJ45 connector, Shielded, with LED, with EMI finger
  Right Angle, with Shield tab up, Operating temprature range: -40℃-70℃
Series: 1000 Base - T Integrated Magnetic R45
Numbers of ports: 1x1
Orientation: Right angle(side entry)
Pin type: THT solder
Positions/ Loaded contacts 8P8C
Latch: Tab up
LEDs: Yes
Shielded: YES
Jack Height: 13.4mm
Magnetic: Yes
Performance category: 1000 Mb
Power over Ethernet(PoE): Non-PoE
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 6u"/15u"/30u" optional
Net Weight: TBA
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
Turns Ratio RX: 1CT:1CT
Turns Ratio TX: 1CT:1CT
Configuration RX: T,C
Configuration TX: T,C
RoHS compliant YES, RoHS AND Halogen-Free
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES








Our Customer:


Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi etc. are our customers.



Our advantage:

1. More than 10 years experience in the field of RJ45 Female Connector, please provide drawings or part number, then we will reply you with our drawings and price for your confirmation.

2. 100% full inspection before shipping to guarantee good quality;

3. OEM/ODM are available;

4. Fast delivery time, good production capacity, moderate price;

5. ROHS compliant;

6. Small order are available.




1. How long can I expect to get the sample and mass order.


Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.


2. Can you print our customized logo?


Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.


3. What is your payment terms?


Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.


4. How can I order?


Re :

1. Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.

2. Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.

3. Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.

4. Ship your goods by DHL/FedEx/UPS, as your request.

5. Follow-up client usage status regularly and after sales service


5. If quality issues happened, what should I do?


Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.


Product Images :

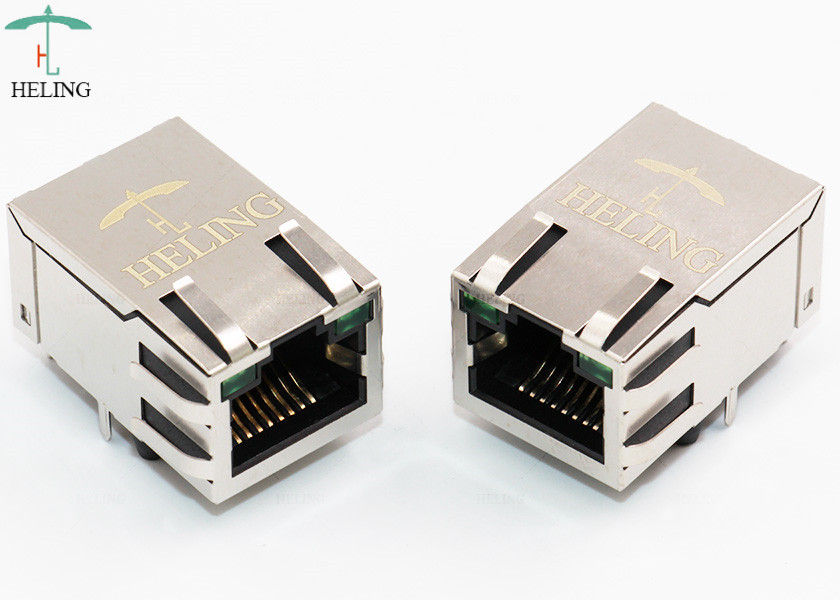

 Shielded 1000 Base - T Magnetic RJ45 Jack Tab Up With LED And EMI Finger 0

Shielded 1000 Base - T Magnetic RJ45 Jack Tab Up With LED And EMI Finger 1
