|Place of Origin:||China|
|Certification:||ISO9001 , RoHS , UL , CE , REACH|
|Minimum Order Quantity:||2000|
|Price:||Preferential & Competitive|
|Packaging Details:||Tray / Tape & Reel as your request|
|Delivery Time:||Stock or 4 weeks|
|Payment Terms:||T / T， Paypal|
|Supply Ability:||300 K Pieces Per Month|
|Product Family:||RJ45 Connector With Magnetics||Speed:||1000 Mb|
|Magnetic:||Yes||Power Over Ethernet:||Non-PoE|
|EMI Finger:||Yes||LED:||Green / Yellow|
|PIN Type:||THT Solder||Component Type:||PCB Jack + Transformer|
magnetic rj45 connector,
magnetic modular jacks

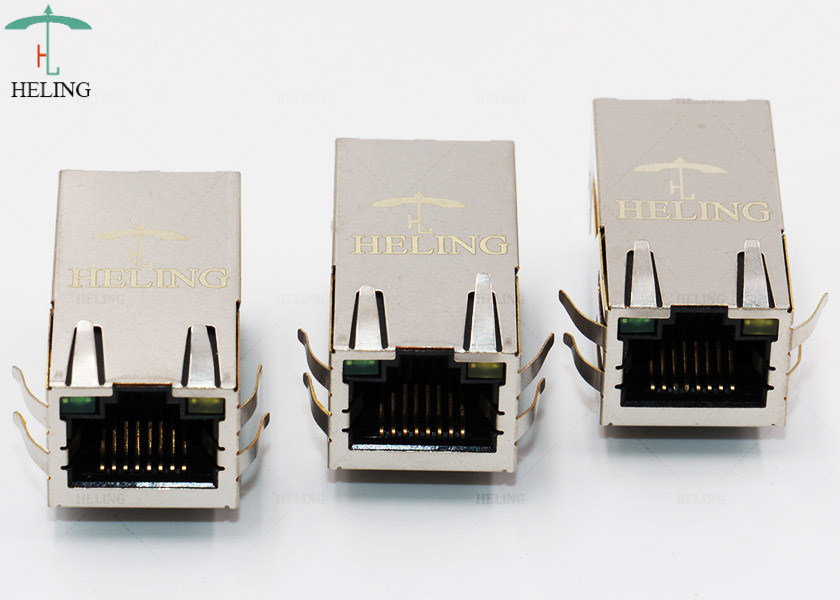

Built - In LED 2.5 G / 5 G Base - T Integrated Magnetics RJ45 PCB Jack Connector
*** CLICK HERE TO DOWNLOAD THE DRAWING
Product Parameter :
|Product Family:||Integrated Magnetics RJ45|
|Overview:||THT RJ45 1000 Base T Jack 1x1 8P8C Modular Jack|
|Description:||8 core 1x1 ports Low Profile RJ45 connector, with Shielded tabs|
|Right Angle / Side Entry, THT , Operating temprature range: -40℃-70℃|
|Series:||Integrated Magnetics RJ45|
|Numbers of ports:||1x1|
|Orientation:||Right Angle (Side entry)|
|Pin type:||THT solder|
|Positions/ Loaded contacts||8P8C|
|Performance category:||1000 BaseT|
|Power over Ethernet(PoE):||Non-PoE|
|Durability(mating cycles max):||750|
|Resin:||Liquid crystal polymer|
|Plating mating:||Gold over Nickel|
|Plating termination:||Gold Flash|
|Plating min- mating:||3u" / 6u"/15u"/30u" optional|
|PCB Thickness- Recommended||1.6mm|
|RoHS compliant||YES, RoHS AND Halogen-Free|
|Voltage rating:||125V AC|
|Insulation Resistance:||500MΩ mini|
|Withstand voltage:||1000V RMS 60Hz|
|Contact Resistance:||50mΩ Max|
|Grounding to PCB:||YES|
|Grounding to Panel:||YES|
