| Place of Origin: | China |
|---|---|
| Brand Name: | DGHELING |
| Certification: | ISO9001 , RoHS , UL , CE , REACH |
| Model Number: | MT16-YS4T01 |
| Minimum Order Quantity: | 2000 |
| Price: | Preferential & Competitive |
| Packaging Details: | Tray / Tape & Reel as your request |
| Delivery Time: | Stock or 2 weeks |
| Payment Terms: | T/T , Paypal or L/C |
| Supply Ability: | 300 K Pieces Per Month |
| Product Name: | Ethernet LAN Transformer | Numbers Of Ports: | Single Port |
|---|---|---|---|
| PCB Mounting: | SMT | Phase: | Dual |
| Coil Number: | Auto Transformer | LAN Transformer Speed: | 10/100/1000 Base-t |
| Samples: | Free | Application: | For RJ45 PCB Connector, NICs Etc |
| High Light: | lan isolation transformer,ethernet magnetic transformer |
||
2 Rows 16 Soldering Foots Ethernet LAN Transformer for PCB Magnetics RJ45
Specification
-Part number : MT16-YS4T01
-Numbers of Pins : 2 Rows 16 Soldering Pins
-Component type: SMT Surface Mounting Ethernet LAN Transformer
Our Ethernet LAN Transformer are widely used in:
Our Customer:
Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi etc. are our customers.
Our Products:
Welcome OEM/ODM orders.
Our advantage:
1. More than 10 years experience in the field of RJ45 Female Connector, please provide drawings or part number, then we will reply you with our drawings and price for your confirmation.
2. 100% full inspection before shipping to guarantee good quality;
3. OEM/ODM are available;
4. Fast delivery time, good production capacity, moderate price;
5. ROHS compliant;
6. Small order are available.
| 350uH minmum OCL with 8mA bias current | |
| 1.Current Rating | 1.5 amps |
| 2.Voltage Rating | 125vac |
| 3.Insulation Resistance | 500 MΩmin |
| 4.Contact Resistance | 30 MΩmax |
| 5.Withstanding Voltage | AC 1500V RMS 50Hz or 60Hz 1 min |
| Instertion Loss: | -1.2dB Maximum @100KHz-100MHz |
Return Loss: | -18dB Minimum @1MHz-30MHz |
| -14dB Minimum @30MHz-60MHz | |
| -12dB Minimum @60MHz-80MHz | |
| -10dB Minimum @80MHz-100MHz | |
| Common Mode Rejection: | -33dB Minimum @1MHz-100MHz |
| Cross Talk: | -33dB Minimum @1MHz-100MHz |
How can I order?
1, Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.
2, Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3, Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4, Ship your goods by DHL/FedEx/UPS, as your request.
5, Follow-up client usage status regularly and after sales service
Application:
| Smart TV | HUBs | Switcher | Networking devices |
| Network interface cards | Telecom | datacom | set-top boxes and video |
| LED TV | PCs | Router | Splitter |
| Printers | Networking station | IO modules | Industrial PC |
| Internet of Things | IP cameras | Surveillance | Access points |

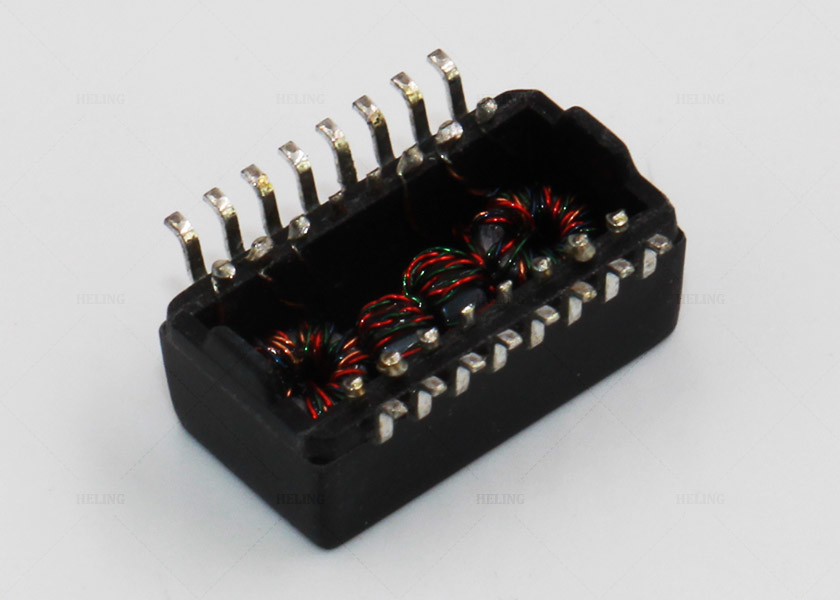

Product pictures:
