Unshielded 45 Degree RJ45 Female Connector 8P8C THT Blue Color For Telecom Equipment

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ88-U211-JLN1
Minimum Order Quantity: 2000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 2 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Product Name: 45 Degree Rj45 Lan Jacks Mounting Type: THT Mounting
Orientation: 45 Degree Positions / Contacts: 8P8C
Housing Color: Blue Shielding: Unshielded
Latch Orientation: Tab Down Usage: For Networking And Telecom Equipment
High Light:

rj45 female coupler


rj45 female jack

Product Description

Unshielded 45 Degree RJ45 Lan Jack 8P8C, THT, Blue Color for Network Applications


Quick Details:

  •     Model number:  MJ88-U211-JLN1
  •     Series: 45Degree RJ45 lan Jack
  •     Gender:  RJ45 Female Connector
  •     Positions/ loads of contacts : 8P8C ( RJ45 , Ethernet )
  •     Mounting type : Through hole
  •     Latch Orientation: 45 degree
  •     LED indicator : None



Part Number:  MJ88-U211-JLN1
Product Family: 45 Degree RJ45 lan jack
Overview: RJ45 1x1 8P8C  45 degree RJ45 Connector blue Color
Description: 8 core 1x1 ports 45 degree RJ45 Jack connector, Unshielded, Blue color
  Operating temprature range: -40℃-70℃
Series: 45 Degree RJ45 Connector Jack
Numbers of ports: 1x1
Orientation: 45 degree
Pin type: THT solder
Positions/ Loaded contacts 8P8C
Latch: Tab down
LEDs: None
Shielded: None
Jack Height:
Magnetic: None
Performance category:

Cat 5

Power over Ethernet(PoE): Non-PoE
Color-Resin: Blue
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating termination: Gold Flash
Plating min- mating: 6u"/15u"/30u" optional
Net Weight: TBA
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
RoHS compliant YES, RoHS AND Halogen-Free
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES



HELING RJ45 LAN Jack is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.

Our RJ45 LAN JACK Connector are widely used in:

  • Internet Data Center
  • Web Servers
  • Switches Hubs
  • Work Station
  • Network Information Center
  • Mother board
  • Unmanaged Switches
  • Consumer devices


Product Images :

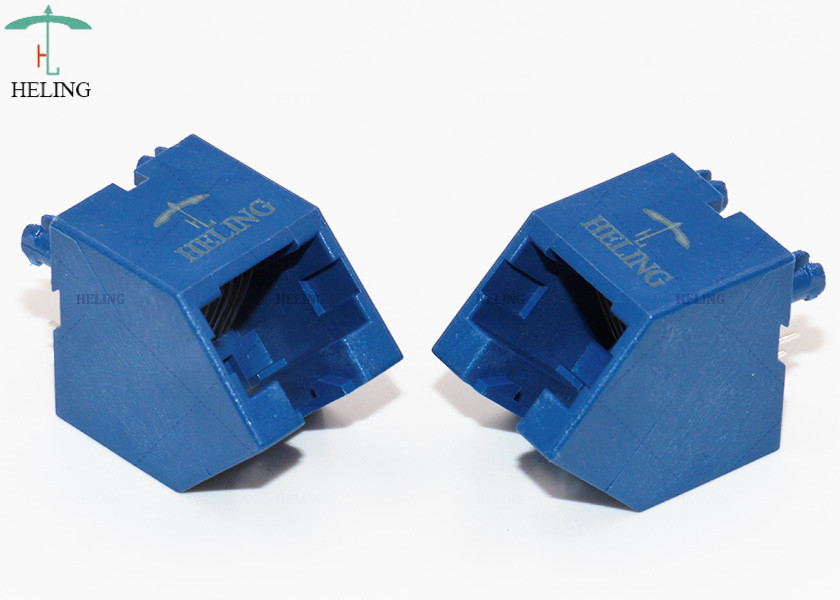

 Unshielded 45 Degree RJ45 Female Connector 8P8C THT Blue Color For Telecom Equipment 0

Unshielded 45 Degree RJ45 Female Connector 8P8C THT Blue Color For Telecom Equipment 1
