Thru - Hole PCB Mount RJ45 Lan Jack Right Angle Entry With LED / EMI Finger Tab Down

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ1A-B211-RSL13T101-1
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 2 weeks
Payment Terms: T / T, Paypal
Supply Ability: 3000 K Pieces Per Month
Detail Information
Series: RJ45 Lan Jacks Keywords: RJ45 Lan Jack
Application: PCB Orientation: Right Angle
Shielded: Yes Position / Loaded Contacts: 8p8c
Performance Catagory: 1000 M Usage: For Networking And Datacom Equipment
High Light:

rj45 female coupler


rj45 female jack

Product Description

Thru - Hole PCB Mount RJ45 Lan Jack Right Angle Entry with LED / EMI Finger Tab Down



  • Model number: MJ1A-B211-RSL13T101-1
  • Series: 1000 Base T RJ45 Jack
  • Gender: RJ45 Female Connector
  • Positions/ loads of contacts: 8P8C ( RJ45 , Ethernet )
  • Mounting type: Through hole
  • Latch Orientation: Right Angle (Side Entry)
  • LED indicator: Yes Green / Yellow




Part Number:  MJ1A-B211-RSL13T101-1
Product Family: 1000 Base T RJ45 Jack
Overview: 1000 Base T RJ45 1x1 8P8C Right Angle RJ45 Connector Black Housing
Description: 8 core 1x1 ports Right Angle 1000 Base T RJ45 Jack connector, Shielded with EMI Finger
  Operating temprature range: -40℃-70℃
Series: 1000 Base T RJ45 Jack
Numbers of ports: 1x1
Orientation: Right Angle ( Side entry)
Pin type: THT solder
Positions/ Loaded contacts 8P8C
Latch: Tab up
Shielded: Shielded
Jack Height: 13.5mm
Magnetic: Yes
Performance category:

1000 M

Power over Ethernet(PoE): Optional
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating termination: Gold Flash
Plating min- mating: 6u"/15u"/30u" optional
Net Weight: TBA
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
RoHS compliant YES, RoHS AND Halogen-Free
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES




HELING Right Angle RJ45 Connector Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.

Our Right Angle RJ45 Connector are widely used in:

  • Internet Data Center
  • Web Servers
  • Switches Hubs
  • Work Station
  • Network Information Center
  • Mother board
  • Unmanaged Switches
  • Consumer devices

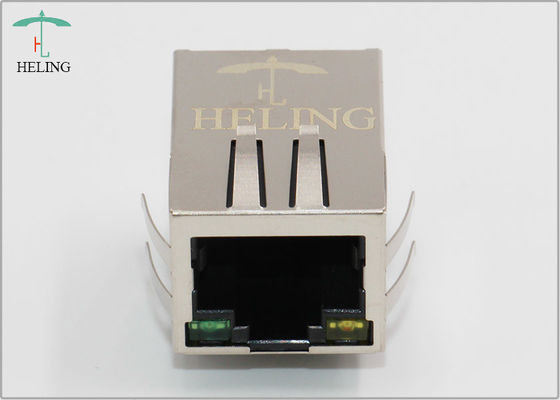

Product Images :

Thru - Hole PCB Mount RJ45 Lan Jack Right Angle Entry With LED / EMI Finger Tab Down 0
