Shielded 8P8C RJ45 Ethernet Lan Jack Tab Up For Home PNA / Router / IP Phone

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ3288-B011-HR1
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 2weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Product Name: Right Angle RJ45 Connector Mounting Type: THT Mounting
Orientation: Right Angle Positions / Contacts: 8P8C
Housing Color: White Shielding: Unshielded
Latch Orientation: Tab Up Usage: For Networking And Telecom Equipment
High Light:

rj45 female coupler


rj45 female jack

Product Description

Shielded 8P8C RJ45 Lan Jack Tab Up For Home PNA / Router /IP Phone / Modem

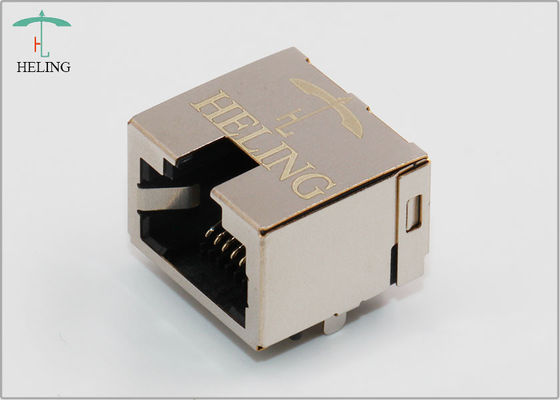

Shielded 8P8C RJ45 Ethernet Lan Jack Tab Up For Home PNA / Router / IP Phone 0

Shielded 8P8C RJ45 Ethernet Lan Jack Tab Up For Home PNA / Router / IP Phone 1



  •     Model number:  MJ3288-B011-HR1
  •     Series: Right Angle RJ45 Jack
  •     Gender:  RJ45 Female Connector
  •     Positions/ loads of contacts : 8P8C ( RJ45 , Ethernet )
  •     Mounting type : Through hole
  •     Latch Orientation: Right Angle (Side Entry)
  •     LED indicator : None



Part Number:  MJ3288-B011-HR1
Product Family: Right Angle RJ45 Connector
Overview: RJ45 1x1 8P8C Right Angle RJ45 Connector
Description: 8 core 1x1 ports Right Angle RJ45 Jack connector, shielded
  Operating temprature range: -40℃-70℃
Series: Right Angle RJ45 Connector Jack
Numbers of ports: 1x1
Orientation: Right Angle ( Side entry)
Pin type: THT solder
Positions/ Loaded contacts 8P8C
Latch: Tab up
LEDs: None
Shielded: None
Jack Height: /
Magnetic: None
Performance category:

Cat 5

Power over Ethernet(PoE): Non-PoE
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating termination: Gold Flash
Plating min- mating: 6u"/15u"/30u" optional
Net Weight: TBA
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
RoHS compliant YES, RoHS AND Halogen-Free
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES




HELING Right Angle RJ45 Connector Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.

Our Right Angle RJ45 Connector are widely used in:

  • Internet Data Center
  • Web Servers
  • Switches Hubs
  • Work Station
  • Network Information Center
  • Mother board
  • Unmanaged Switches
  • Consumer devices
