1.27 mm Terminal Pitch Vertical RJ45 Modular Jack 8P8C THT Top Entry

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ522288E-B011-PN1-L
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Series: Vertical RJ45 Jack Mounting Type: THT Mounting
Orientation: Vertical / Top Entry Numbers Of Positions / Contacts: 8p8c
Samples: Free LED Color: Green Yellow
Housing Color: Black Usage: For Networking And Telecom Equipment
High Light:

rj45 female coupler


rj45 female jack

Product Description

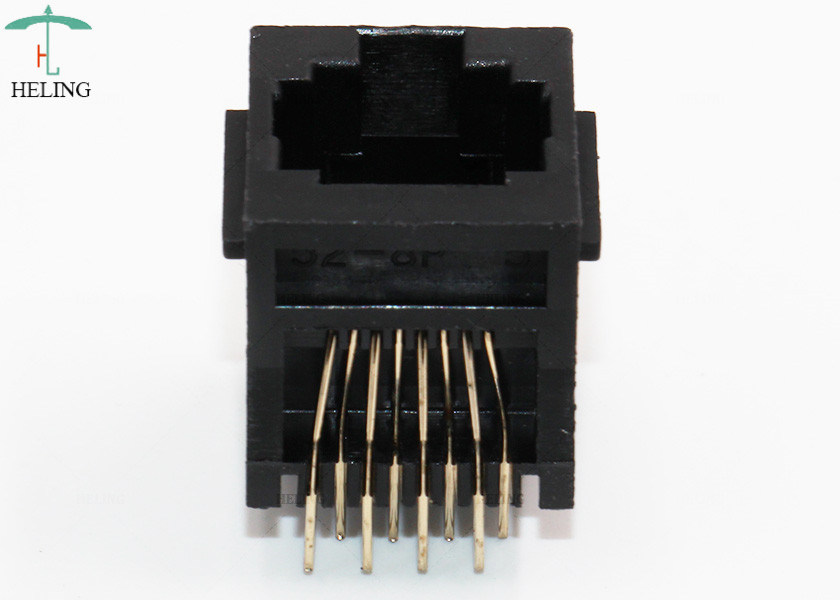

1.27 mm Terminal Pitch Vertical RJ45 Modular Jack, 8P8C, THT, Top Entry, Black

  •     Model number:  MJ522288E-B011-PN1-L
  •     Series: Vertical RJ45 Jack
  •     Gender:  RJ45 Female Connector
  •     Positions/ loads of contacts : 8P8C ( RJ45 , Ethernet )
  •     Mounting type : Through hole
  •     Latch Orientation: Vertical (Top Entry)
  •     LED indicator : Green Yellow


Part Number: MJ522288E-B011-PN1-L
Product Family:Vertical RJ45 Jack Connector
Overview:RJ45 1x1 8P8C Vertical RJ45 Jack with LED
Description:8 core 1x1 ports Vertical RJ45 Jack connector,
 Vertical, with LED, Operating temprature range: -40℃-70℃
Series:Vertical RJ45 Jack
Numbers of ports:1x1
Orientation:Vertical (top entry)
Pin type:THT solder
Positions/ Loaded contacts8P8C
Latch:Tab up
LEDs:Green / Yellow
Jack Height:/
Performance category:

Cat 5

Power over Ethernet(PoE):Non-PoE
Durability(mating cycles max):750
MaterialMetal:Phosphor bronze
Resin:Liquid crystal polymer
Plating mating:Gold over Nickel
Plating termination:Gold Flash
Plating min- mating:6u"/15u"/30u" optional
Net Weight:TBA
PCB locator:Yes
PCB retention:None
PCB retaining post:T-post
PCB Thickness- Recommended1.6mm
Packaging type:Tray
Temperature range:-40℃-70℃
Turns Ratio RX:1CT:1CT
Turns Ratio TX:1CT:1CT
Configuration RX:T,C
Configuration TX:T,C
RoHS compliantYES, RoHS AND Halogen-Free
Current rating:1.5AMPS
Voltage rating:125V AC
Insulation Resistance:500MΩ mini
Withstand voltage:1000V RMS 60Hz
Contact Resistance:50mΩ Max
Grounding to PCB:YES
Grounding to Panel:YES

 1.27 mm Terminal Pitch Vertical RJ45 Modular Jack 8P8C THT Top Entry 0
1.27 mm Terminal Pitch Vertical RJ45 Modular Jack 8P8C THT Top Entry 1
HELING Vertical RJ45 Jack Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.
Our vertical RJ45 Jacks are widely used in:

  • Internet Data Center
  • Web Servers
  • Switches Hubs
  • Work Station
  • Network Information Center
  • Mother board
  • Unmanaged Switches
  • Consumer devices
