|Place of Origin:||China|
|Certification:||ISO9001 , RoHS , UL , CE , REACH|
|Minimum Order Quantity:||5000|
|Price:||Preferential & Competitive|
|Packaging Details:||Tray / Tape & Reel as your request|
|Delivery Time:||Stock or 4 weeks|
|Payment Terms:||T / T， Paypal|
|Supply Ability:||1,000K Pieces Per Month|
|Brand Name:||HELING / OEM Is Welcome||Application:||PCB|
|Series:||RJ45 Single Port||Numbers Of Positions / Contacts:||8P8C|
|Mounting Type:||SMT||Latch:||Tab Down|
|Orientation:||Right Angle / Side Entry||Material:||LCP|
SMT RJ45 LAN Jack,
8P8C RJ45 LAN Jack,
Latch Up SMT RJ45 Jack
Latch Up 90 Degree 8P8C Single Port SMT RJ45 LAN Jack
Product Parameter :
|Product Family:||Low profile RJ45 Jack|
|Overview:||Low profile RJ45 1x1 8P8C Modular Jack offset / overhangs PCB|
|Description:||8 core 1x1 ports Low Profile RJ45 connector, Shielded, without LED|
|Right Angle / Side Entry, Operating temprature range: -40℃-70℃|
|Series:||RJ45 Single Port|
|Numbers of ports:||1x1|
|Orientation:||Right Angle (Side entry)|
|Pin type:||SMT solder|
|Positions/ Loaded contacts||8P8C|
|Performance category:||Cat 5|
|Power over Ethernet(PoE):||Non-PoE|
|Durability(mating cycles max):||750|
|Resin:||Liquid crystal polymer|
|Plating mating:||Gold over Nickel|
|Plating termination:||Gold Flash|
|Plating min- mating:||3u" / 6u"/15u"/30u" optional|
|PCB Thickness- Recommended||1.6mm|
|RoHS compliant||YES, RoHS AND Halogen-Free|
|Voltage rating:||125V AC|
|Insulation Resistance:||500MΩ mini|
|Withstand voltage:||1000V RMS 60Hz|
|Contact Resistance:||50mΩ Max|
|Grounding to PCB:||YES|
|Grounding to Panel:||YES|
Below customized requirements are accepted:
1 , with or without transformers
2 , with or withour PoE function
3 , Customized length of Pin
4 , Customized housing color
5 , Customized contact area gold plating
6 , Customized LED Indicator color
7 , Customized Logo printing
1 > 10 years experience
More than 10 years experience on RJ45 Female connector developing, producing and marketing; and our products are sold to more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Female Connectors for our customers.
Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi are our customers
2 > Quality guarantee
Rigorous production and quality check in each section, providing 6 years warranty for all our RJ45 Female Connectors.
3 > Responded within 24-hour
All enquiries will be replied within 24 hours in working day.
1, How long can I expect to get the sample and mass order.
Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.
2, Can you print our customized logo?
Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.
3, What is your payment terms?
Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.
4, How can I order?
1, Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.
2, Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3, Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4, Ship your goods by DHL/FedEx/UPS, as your request.
5, Follow-up client usage status regularly and after sales service
5, If quality issues happened, what should I do?
Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.

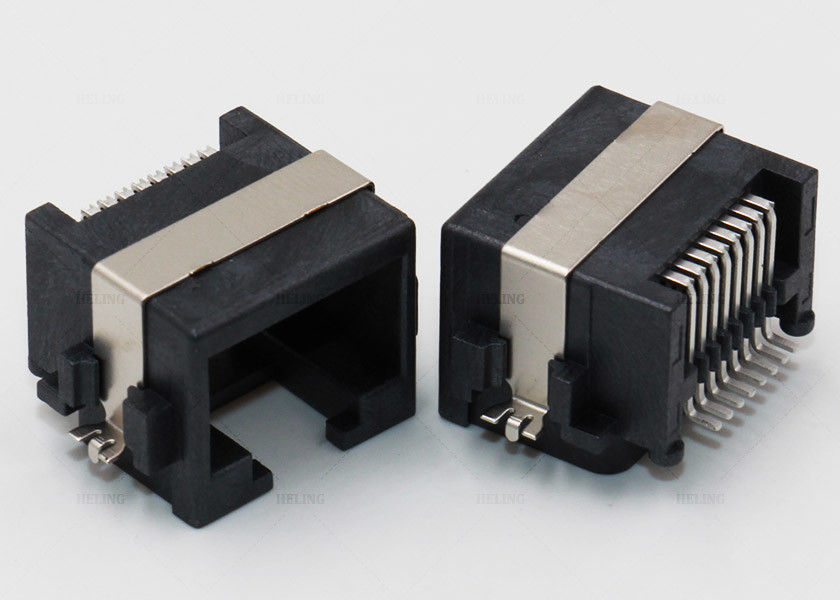

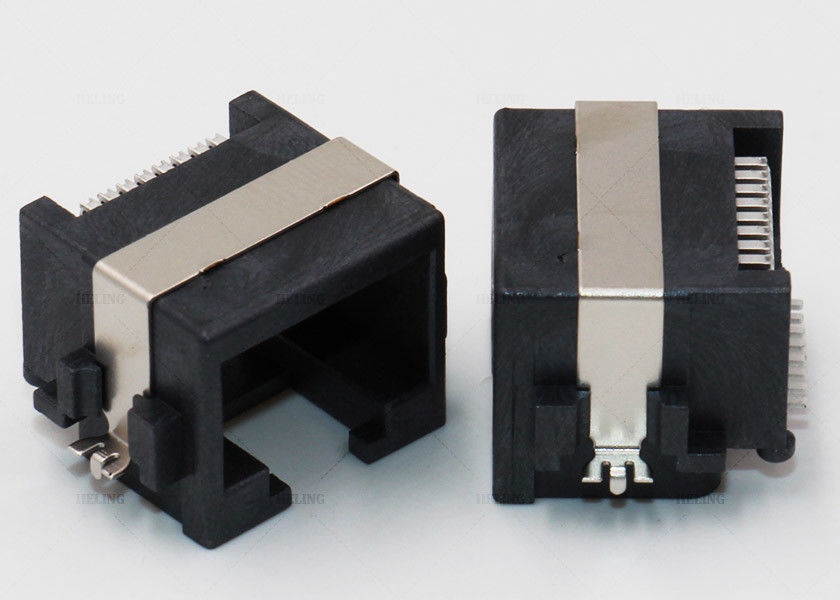

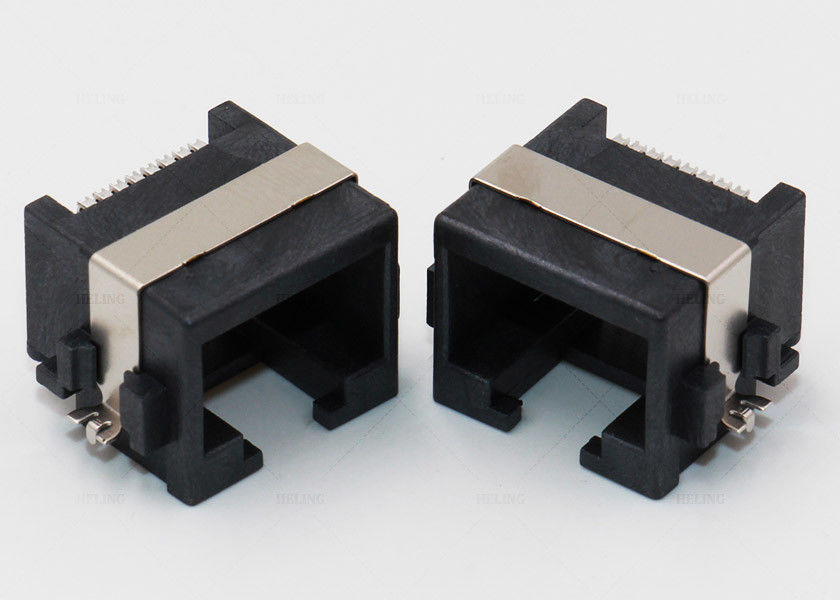

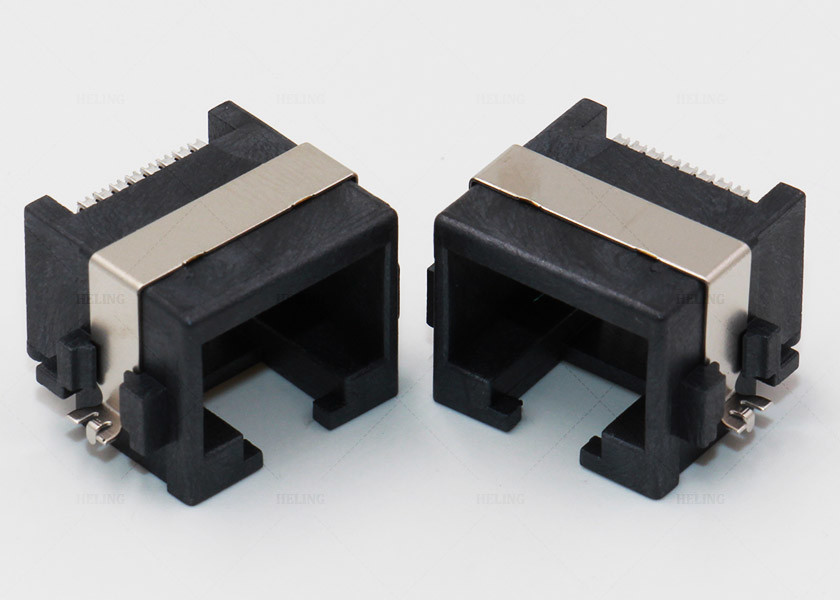

Product Image :
