Black 1000 Base T RJ45 Modular Jack MJ3288-B011-HRN1

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ3288-B011-HRN1
Minimum Order Quantity: 2000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 300 K Pieces Per Month
Detail Information
Product Family: 1000 Base T RJ45 Modular Jack Color Resin: Black
Magnetic: Yes Power Over Ethernet: Non-PoE
EMI Finger: Yes Performance Category: 1000 Mb
PIN Type: THT Solder Component Type: PCB Jack + Transformer
High Light:

1000 Base T RJ45 Modular Jack

,

MJ3288-B011-HRN1

,

Black RJ45 Modular Jack


Product Description

MJ3288-B011-HRN1



Tab Spring Cat 5 1000Base T 8P8C 1x1 One Port Modular Jack for Home PNA/ VoIP



Quick details:

  • Model Number :MJ3288-B011-HRN1
  • 8P8C one port
  • Tab up
  • LED : Green Yellow Indicator, can be changed as your request.
  • Performance Catagory : 1000 Mb
  • Thru-hole Mounting

Product Parameter :

Part Number:  MJ3288-B011-HRN1
Product Family: 1000 Base T RJ45
Overview: THT RJ45 1000 Base T Jack 1x1 8P8C Modular Jack
Description: 8 core 1x1 ports Low Profile RJ45 connector, with Shielded tabs
  Right Angle / Side Entry, THT , Operating temprature range: -40℃-70℃

General
Series: 1000 Base T RJ45
Numbers of ports: 1x1
Orientation: Right Angle (Side entry)
Pin type: THT solder
Positions/ Loaded contacts 8P8C
Latch: Tab up
LEDs: Yes
Shielded: YES
Jack Height: /
Magnetic: Yes
Performance category: 1000 BaseT
Power over Ethernet(PoE): Non-PoE
Physical
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 3u" / 6u"/15u"/30u" optional
Net Weight: TBA
PCB: FR4
PCB locator: Yes
PCB retention: None
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
RoHS compliant YES, RoHS AND Halogen-Free
Electrical
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES

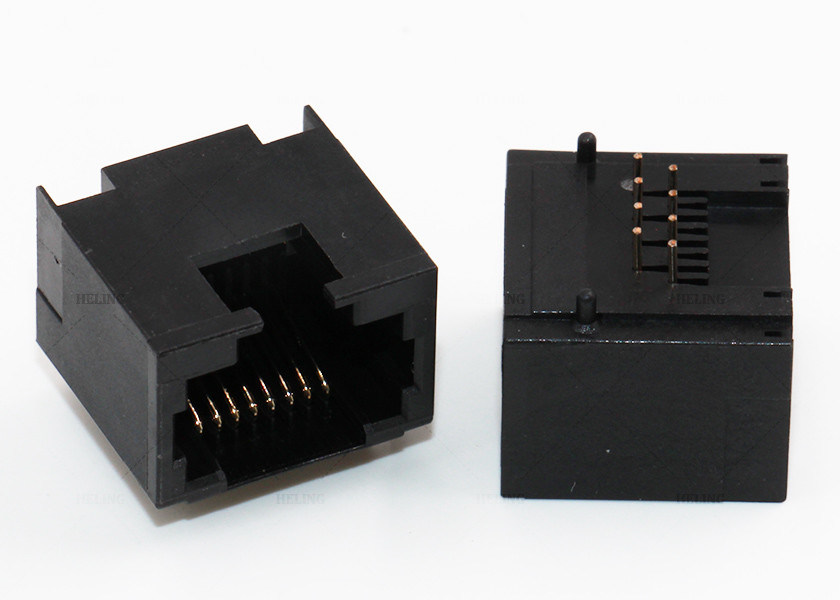

Black 1000 Base T RJ45 Modular Jack MJ3288-B011-HRN1 0

Black 1000 Base T RJ45 Modular Jack MJ3288-B011-HRN1 1




Our Advantage:


1 > 10 years experience
More than 10 years experience on RJ45 Female connector developing, producing and marketing; and our products are sold to more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Female Connectors for our customers.



Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi are our customers


  2 > Quality guarantee
Rigorous production and quality check in each section, providing 6 years warranty for all our RJ45 Female Connectors.

  3 > Responded within 24-hour
All enquiries will be replied within 24 hours in working day.



FAQ

1. How long can I expect to get the sample and mass order.

Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.

2. Can you print our customized logo?

Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.

3. What is your payment terms?

Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.

4. How can I order?

Re :
1. Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.
2. Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3. Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4. Ship your goods by DHL/FedEx/UPS, as your request.
5. Follow-up client usage status regularly and after sales service

5. If quality issues happened, what should I do?

Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.



Product Image :

Black 1000 Base T RJ45 Modular Jack MJ3288-B011-HRN1 2
