Single Port RJ45 Female Connector , Black Color Modular Rj45 Female Jack

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ3288-B011-HRN1
Minimum Order Quantity: 2000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 2 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Part Number: MJ3288-B011-HRN1 Family: RJ45 Female Panel Mount
Brand Name: HELING Latch Orientation: Tab Up
Positions / Loaded Contacts: 8 Positions 8 Contacts Material: PA 9T
RoHS Compliant: Yes Shielded: Unshielded
High Light:

rj45 female coupler


rj45 female jack

Product Description

Unshielded 8P8C RJ45 Female Connector Right Angle Single Port Modular Jack


Product Specification

  1 , Part Number : MJ3288-B011-HRN1

  2 , Overview : RJ45 1x1 8P8C Unshielded Modular Jack

  3 , Ports configuration : Single port

  4 , Port matrix configuration : 1x1

  5 , Latch Orientation : Tab up

  6 , PCB Mount orientation : Right Angle

  7 , PIN Type : THT Solder

  8 , LED Indicator : None

  9 , Shielded : Unshielded

  10 , Jack Hight : 11mm







Electrical Specification


Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES





Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi are our customers.


Our RJ45 female connector are widely used for Telecom, Networking, Security System, smart home, Multi-Media equipment and POS Terminals.

We supply RJ45 Female connectors for more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Female Connectors for our customers.


Product Range:

  • Offset/Overhangs PCB RJ45 Jack
  • 100/1000 base - T Integrated Magnetics RJ45 modular jacks
  • Low Profile SMT RJ45 Female Connector
  • Low Profile RJ45 Through Hole Connector
  • Single Port RJ45 Female Connector
  • 1xN Multi-port RJ45 Female Connector
  • 2xN Multi-port RJ45 Female Connector
  • PoE RJ45 Connector
  • Modular jacks + USB/HDMI
  • Ethernet LAN Transformer

Welcome OEM/ODM orders.

Our advantage:
  1 > Customer First , Superior Quality
Customer First , Superior Quality is our culture, we always believe that our own success is inextricably linked to our finest product quality and our customer's success.
  2 > 6 Years Warranty
6 years warranty for all our RJ45 Female Connectors.
  3 > 24-hour on-line service
All enquiries will be replied within 24 hours in working day.



1 , How long can I expect to get the sample and mass order.

For sample order, the delivery time is in 2-3 weeks, and for mass order, the delivery time is in 3-4 weeks.



2 , What is your payment terms?

B.30% deposit before production and 70% payment before shipment. T/T, Western Union or Paypal are acceptable. All banking charges outside China are on buyers.


3 ,  How do you ship the goods?

Usually the goods are shipped by FedEx, DHL or UPS. If you have any express account, please let us know.


4 ,  Can you do our designs?

Yes, of course. We have a professional design team and the complete production lines. Just provide the details to us, we will be happy to help you out.



5 , How can I order?

1, Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.

2, Confirm the drawings and order, we will send you a proforma invoice for you to make the payment(via T/T, Paypal and L/C is acceptable when total amount is more than US$10,000.)

3, Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.

4, Ship your goods by DHL/FedEx/UPS, as your request.

5, Follow-up client usage status regularly and after sales service



Product Image :

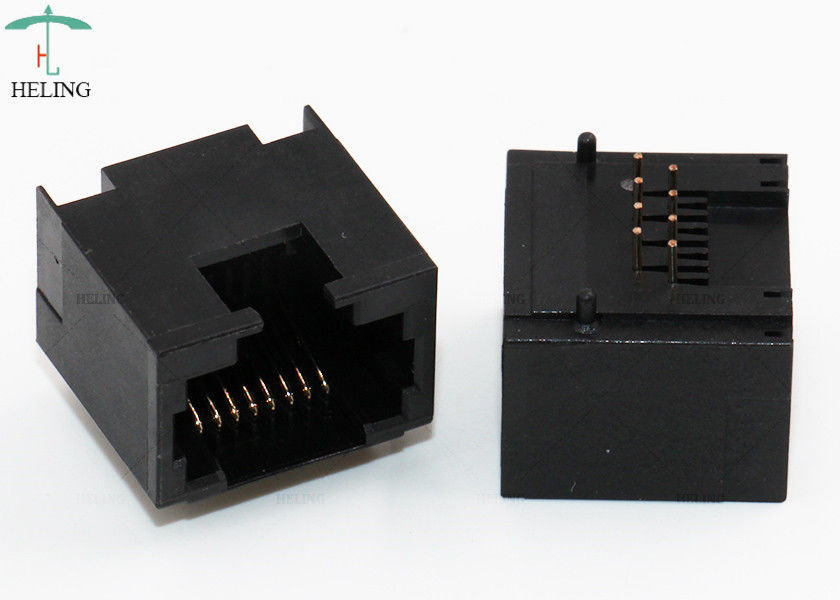

Single Port RJ45 Female Connector , Black Color Modular Rj45 Female Jack 0

Single Port RJ45 Female Connector , Black Color Modular Rj45 Female Jack 1Single Port RJ45 Female Connector , Black Color Modular Rj45 Female Jack 2
