| Place of Origin: | China |
|---|---|
| Brand Name: | DGHELING |
| Certification: | ISO9001 , RoHS , UL , CE , REACH |
| Model Number: | MJ522488-BX11-BPF1 |
| Minimum Order Quantity: | 2000 |
| Price: | Preferential & Competitive |
| Packaging Details: | Tray / Tape & Reel as your request |
| Delivery Time: | Stock or 4 weeks |
| Payment Terms: | T / T， Paypal |
| Supply Ability: | 1,000K Pieces Per Month |
| Series: | Vertical RJ45 Jack | Numbers Of Ports: | 1 |
|---|---|---|---|
| Port Matrix Configuration: | 1x1 | Orientation: | Top Entry |
| Positions/Loaded Contacts: | 8P8C | Latch: | / |
| Pin Type: | THT Solder | RoHS Compliant: | Yes, RoHS And Halogen-Free |
| Highlight: | rj45 female coupler,rj45 female jack |
||

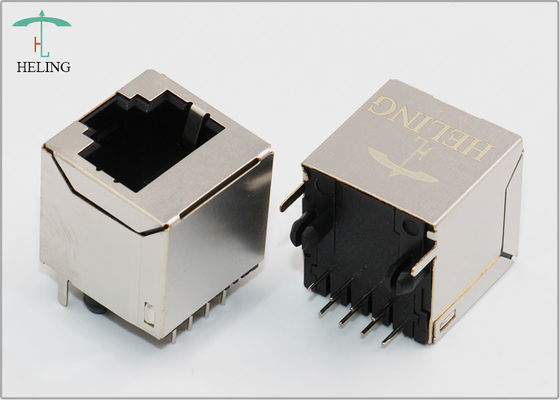

8P8C Vertical Modular Jack RJ45 THT for Internet Camera, PC Motherboard / Card
Heling operates and specializes in the provision of Vertical RJ45 Jack networking connectivity alongside solutions in the field of telecom and datacom; Heling offers a broad range of Vertical RJ45 Jack for your data and signal transmissions.
Our Vertical RJ45 Jack are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded, with EMI Finger/LED options.
Our Vertical RJ45 Jack are widely used in Communication equipment, Telephone, Network Equipment, Hub, Switch, Router, Modem, PC mainboard etc.
| Vertical RJ45 Jack Shielded Modular Jack for Telecom and Datacom Using MJ522488-B011-BPF1 | |||||||
| Part Number: | MJ522488-BX11-BPF1 | ||||||
| Product Family: | Vertical RJ45 Jack | ||||||
| Overview: | RJ45 1x1 ports 8P8C Jacks | ||||||
| Description: | 1x1 ports RJ45 connector, Top Entry,Shielded | ||||||
| Operating temprature range: -40℃-70℃ | |||||||
| General | |||||||
| Series: | Vertical RJ45 Jack | ||||||
| Numbers of ports: | 1x1 | ||||||
| Orientation: | Vertical | ||||||
| Pin type: | THT solder | ||||||
| Positions/ Loaded contacts: | 8P8C | ||||||
| Latch: | / | ||||||
| LEDs: | None | ||||||
| Shielded: | YES | ||||||
| Jack Height: | 13.2mm | ||||||
| Magnetic: | Yes | ||||||
| Performance category: | / | ||||||
| Power over Ethernet(PoE): | Non-PoE | ||||||
| Physical | |||||||
| Color-Resin: | Black | ||||||
| Durability(mating cycles max): | 750 | ||||||
| Material | Metal: | Phosphor bronze | |||||
| Resin: | Liquid crystal polymer | ||||||
| Plating mating: | Gold over Nickel | ||||||
| Plating termination: | Gold Flash | ||||||
| Plating min- mating: | 1u"/3u"/6u"/15u"/30u"/50u" optional | ||||||
| Net Weight: | TBA | ||||||
| PCB: | FR4 | ||||||
| PCB locator: | Yes | ||||||
| PCB retention: | None | ||||||
| PCB retaining post: | T-post | ||||||
| PCB Thickness- Recommended | 1.6mm | ||||||
| Packaging type: | Tray | ||||||
| Temperature range: | -40℃-70℃ | ||||||
| Turns Ratio RX: | 1CT:1CT | ||||||
| Turns Ratio TX: | 1CT:1CT | ||||||
| Configuration RX: | T,C | ||||||
| Configuration TX: | T,C | ||||||
| RoHS compliant: | YES, RoHS AND Halogen-Free | ||||||
| Electrical | |||||||
| Current rating: | 1.5AMPS | ||||||
| Voltage rating: | 125V AC | ||||||
| Insulation Resistance: | 500MΩ mini | ||||||
| Withstand voltage: | 1000V RMS 60Hz | ||||||
| Contact Resistance: | 50mΩ Max | ||||||
| Grounding to PCB: | YES | ||||||
| Grounding to Panel: | YES | ||||||
