THT / DIP Mounting Vertical 8p8c RJ45 Female Connector Replace Keystone Jack

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ522488-U011-BPF1
Minimum Order Quantity: 2000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Numbers Of Ports: 1 Port Matrix Configuration: 1x1
Positions/Loaded Contacts: 8P8C Material: ABS/PBT/PA66/PA46
Business Type: Manufacturer Number Of Contacts: 8
Shield: Yes
High Light:

rj45 female coupler


rj45 female jack

Product Description

THT / DIP Mounting Vertical Type 8p8c RJ45 Female Connector Replace Keystone Jack
- Model Number : MJ522488-U011-BPF1
- Latch directioin: Tab Up
- Orientation : Vertical
- Numbers of Ports : 1 X 1
- Shielding : Shielded
- Numbers of positions / contacts : 8P8C
Heling operates and specializes in the provision of Vertical RJ45 Jack networking connectivity alongside solutions in the field of telecom and datacom; Heling offers a broad range of Vertical RJ45 Jack for your data and signal transmissions.
Our Vertical RJ45 Jack are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded, with transformers/EMI Finger/LED options.
Our Vertical RJ45 Jack are widely used in Communication equipment, Telephone, Network Equipment, Hub, Switch, Router, Modem, PC mainboard etc.

THT / DIP Mounting Vertical RJ45 Jack Ethernet Connector for Ethernet Router
Part Number: MJ522488-U011-BPF1
Product Family:Vertical RJ45 Jack
Overview:Vertical RJ45 Jack 1x1 ports 8P8C
1x1 ports RJ45 connector, Vertical, Tab up,Shielded
Operating temprature range: -40℃-70℃
Series:Vertical RJ45 Jack
Numbers of ports:1x1
Orientation:Right angle(side entry)
Pin type:THT solder
Positions/ Loaded contacts:8P8C
Latch:Tab up
Jack Height:12mm
Performance category:None
Power over Ethernet(PoE):Non-PoE
Durability(mating cycles max):750
MaterialMetal:Phosphor bronze
Resin:Liquid crystal polymer
Plating mating:Gold over Nickel
Plating termination:Gold Flash
Plating min- mating:1u"/3u"/6u"/15u"/30u"/50u"  optional
Net Weight:TBA
PCB locator:Yes
PCB retention:None
PCB retaining post:T-post
PCB Thickness- Recommended1.6mm
Packaging type:Tray
Temperature range:-40℃-70℃
Turns Ratio RX:/
Turns Ratio TX:/
Configuration RX:/
Configuration TX:/
RoHS compliant:YES, RoHS AND Halogen-Free
Current rating:1.5AMPS
Voltage rating:125V AC
Insulation Resistance:500MΩ mini
Withstand voltage:1000V RMS 60Hz
Contact Resistance:50mΩ Max
Grounding to PCB:YES
Grounding to Panel:YES

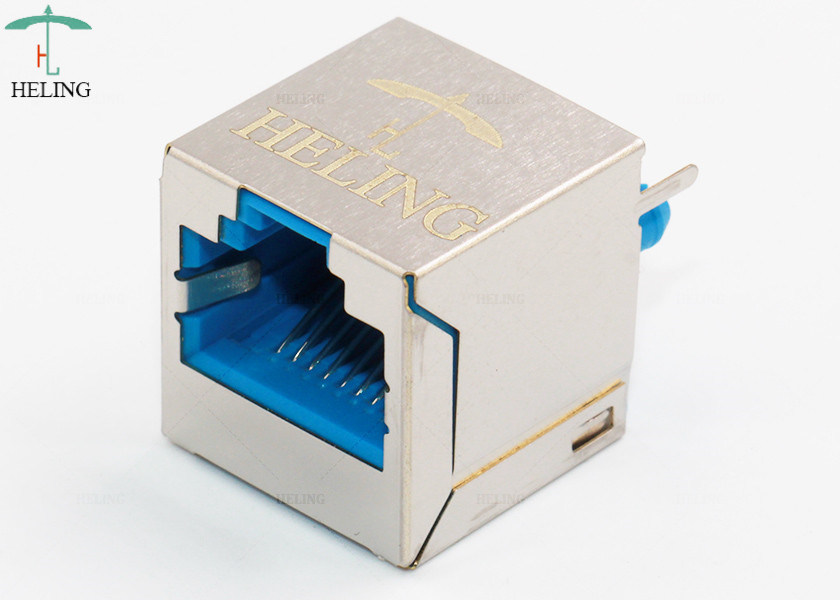

Product Image :
THT / DIP Mounting Vertical 8p8c RJ45 Female Connector Replace Keystone Jack 0
