1 X 2 Ports RJ45 Lan Jack Brass Shielded Right Angle THT Type Without LED

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ5908-B112-BRF4
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Series: RJ45 Lan Jack Gender: Female
Application: Signal Material: ABS/PBT/PA66/PA46
Connector Type: RJ45 8P8C Business Type: Manufacturer
Number Of Contacts: 8
High Light:

rj45 female coupler

,

rj45 female jack


Product Description

1 x 2 Ports RJ45 Lan Jack , Brass Shielded, Right Angle, THT Type Without LED





1, RJ45 Lan Jack customized requirements are accepted:



1. With or without transformers

2. With or withour PoE function

3. Customized length of Pin

4. Customized housing color

5. Customized contact area gold plating

6. Customized LED Indicator color

7. Customized Logo printing


 2, RJ45 Lan Jack specification:

1 x 2 Ports RJ45 Lan Jack , Brass Shielded, Right Angle, THT Type Without LED
Part Number:  MJ5908-B112-BRF4
Product Family: 1 x 2 RJ45 Lan Jack
Overview:  RJ45 Lan Jack 1x2 ports 8P8C
Description:


1x2 ports RJ45 Lan Jack, R/A, THT
Operating temprature range: -40℃-70℃

General- RJ45 Lan Jack
Series: 1 x 2 RJ45 Lan Jack
Numbers of ports: 1 x 2
Orientation: RJ45 Lan Jack
Pin type: THT solder
Positions/ Loaded contacts: 8P8C
Latch: Tab up
LEDs: None
Shielded: yes
Jack Height: 12mm
Magnetic: /
Performance category: /
Power over Ethernet(PoE): Non-PoE
Physical - RJ45 PCB Connector
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 1u"/3u"/6u"/15u"/30u"/50u"  optional
Net Weight: TBA
PCB: FR4
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
Turns Ratio RX: /
Turns Ratio TX: /
Configuration RX: /
Configuration TX: /
RoHS compliant: YES, RoHS AND Halogen-Free
Electrical - RJ45 Lan Jack
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES

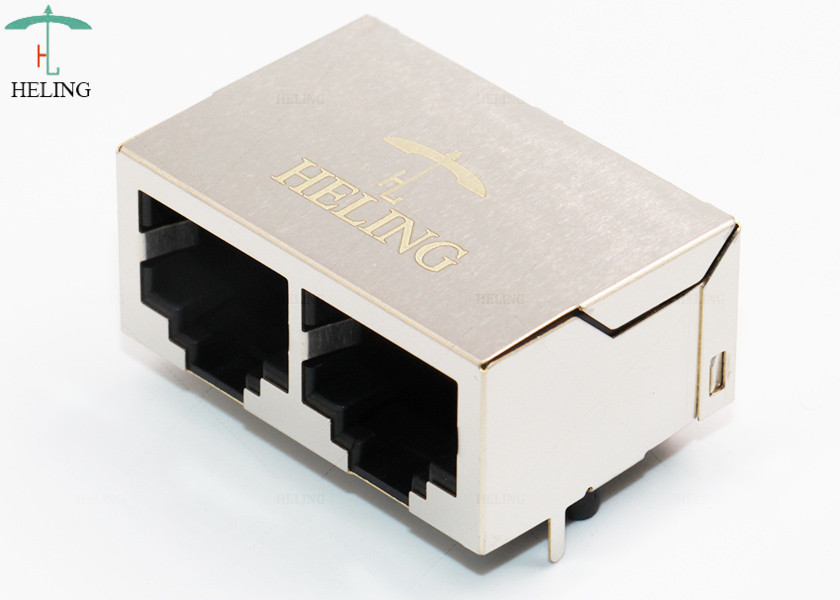

3. RJ45 Lan Jack Product Image :

1 X 2 Ports RJ45 Lan Jack Brass Shielded Right Angle THT Type Without LED 0







4 FAQ for RJ45 Lan Jack


1, How long can I expect to get the sample and mass order.

Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.

2, Can you print our customized logo?

Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.

3. What is your payment terms?

Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.

4. How can I order?

Re :
1. Choose the RJ45 Lan Jack you need and send us an inquiry, we will reply in 24 hours.
2. Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3. Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4. Ship your goods by DHL/FedEx/UPS, as your request.
5. Follow-up client usage status regularly and after sales service

5. If quality issues happened, what should I do?

Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.



5  Product Range of RJ45 Lan Jack

  • Offset/Overhangs RJ45 Lan Jack
  • 100/1000 base - T Integrated Magnetics RJ45 Lan Jack
  • Low Profile SMT RJ45 Lan Jack
  • RJ45 Lan Jack Through Hole Connector
  • Single Port RJ45 Lan Jack
  • 1xN Multi-port RJ45 Lan Jack
  • 2xN Multi-port RJ45 Lan Jack
  • PoE RJ45 Lan Jack
  • RJ45 Lan Jack + USB/HDMI
  • RJ45 Lan Jack Ethernet LAN Transformer

Welcome OEM/ODM orders.
