| Place of Origin: | China |
|---|---|
| Brand Name: | DGHELING |
| Certification: | ISO9001 , RoHS , UL , CE , REACH |
| Model Number: | MJ552100-B211-RN1 |
| Minimum Order Quantity: | 2000 |
| Price: | Preferential & Competitive |
| Packaging Details: | Tray / Tape & Reel as your request |
| Delivery Time: | Stock or 4 weeks |
| Payment Terms: | T / T， Paypal |
| Supply Ability: | 1,000K Pieces Per Month |
| Series: | 10 Pin RJ45 Connector | Gender: | Female |
|---|---|---|---|
| Pin: | 10P | Port: | 1*1/1*2/1*3/1*4/1*5/1*6/1*8 |
| Business Type: | Manufacturer | Number Of Contacts: | 10 |
| High Light: | rj45 female coupler,rj45 female jack |
||
Side Entry 10 Pin RJ45 Connector, Unshielded, Black Housing, Thru-hole Type
1. 10 Pin RJ45 Connector customized requirements are accepted:
1. With or without transformers
2. With or withour PoE function
3. Customized length of Pin
4. Customized housing color
5. Customized contact area gold plating
6. Customized LED Indicator color
7. Customized Logo printing
2. 10 Pin RJ45 Connector specification:
| Side Entry 10 Pin RJ45 Connector, Unshielded, Black Housing, Thru-hole Type | |||||||
| Part Number: | MJ552100-B211-RN1 | ||||||
| Product Family: | 1 x 1 10 Pin RJ45 Connector | ||||||
| Overview: | 10 Pin RJ45 Connector 1x1 ports 10P10C | ||||||
| Description: |
1x1 ports 10 Pin RJ45 Connector, R/A, THT | ||||||
| Operating temprature range: -40℃-70℃ | |||||||
| General- 10 Pin RJ45 Connector | |||||||
| Series: | 1 x 1 10 Pin RJ45 Connector | ||||||
| Numbers of ports: | 1 x 1 | ||||||
| Orientation: | Side Entry 10 Pin RJ45 Connector | ||||||
| Pin type: | THT solder | ||||||
| Positions/ Loaded contacts: | 10P10C | ||||||
| Latch: | Tab up | ||||||
| LEDs: | None | ||||||
| Shielded: | None | ||||||
| Jack Height: | 12mm | ||||||
| Magnetic: | / | ||||||
| Performance category: | / | ||||||
| Power over Ethernet(PoE): | Non-PoE | ||||||
| Physical - 10 Pin RJ45 Connector | |||||||
| Color-Resin: | Black | ||||||
| Durability(mating cycles max): | 750 | ||||||
| Material | Metal: | Phosphor bronze | |||||
| Resin: | Liquid crystal polymer | ||||||
| Plating mating: | Gold over Nickel | ||||||
| Plating termination: | Gold Flash | ||||||
| Plating min- mating: | 1u"/3u"/6u"/15u"/30u"/50u" optional | ||||||
| Net Weight: | TBA | ||||||
| PCB: | FR4 | ||||||
| PCB locator: | Yes | ||||||
| PCB retention: | None | ||||||
| PCB retaining post: | T-post | ||||||
| PCB Thickness- Recommended | 1.6mm | ||||||
| Packaging type: | Tray | ||||||
| Temperature range: | -40℃-70℃ | ||||||
| Turns Ratio RX: | / | ||||||
| Turns Ratio TX: | / | ||||||
| Configuration RX: | / | ||||||
| Configuration TX: | / | ||||||
| RoHS compliant: | YES, RoHS AND Halogen-Free | ||||||
| Electrical - 10 Pin RJ45 Connector | |||||||
| Current rating: | 1.5AMPS | ||||||
| Voltage rating: | 125V AC | ||||||
| Insulation Resistance: | 500MΩ mini | ||||||
| Withstand voltage: | 1000V RMS 60Hz | ||||||
| Contact Resistance: | 50mΩ Max | ||||||
| Grounding to PCB: | YES | ||||||
| Grounding to Panel: | YES | ||||||

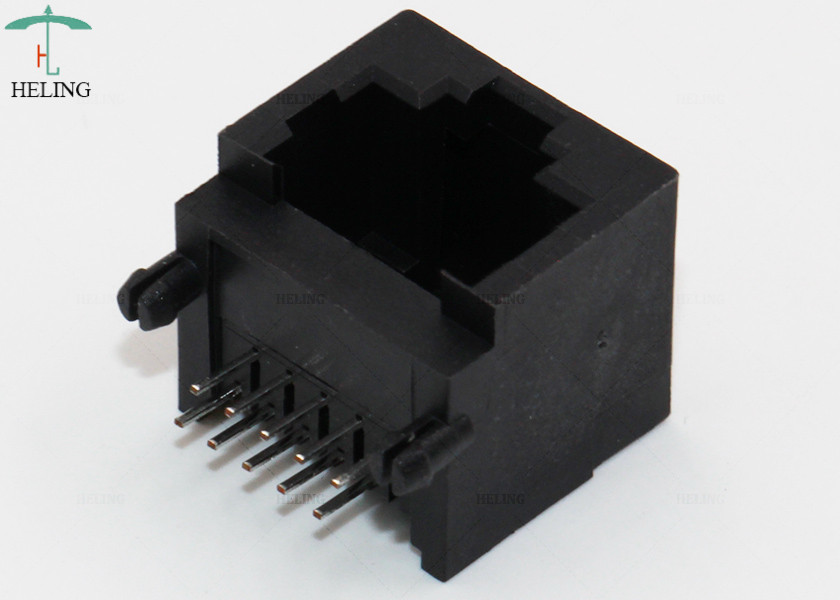

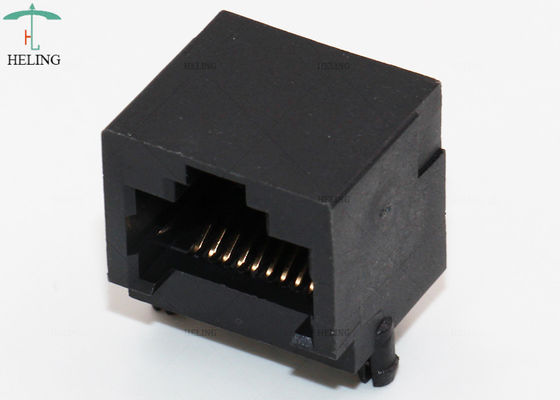

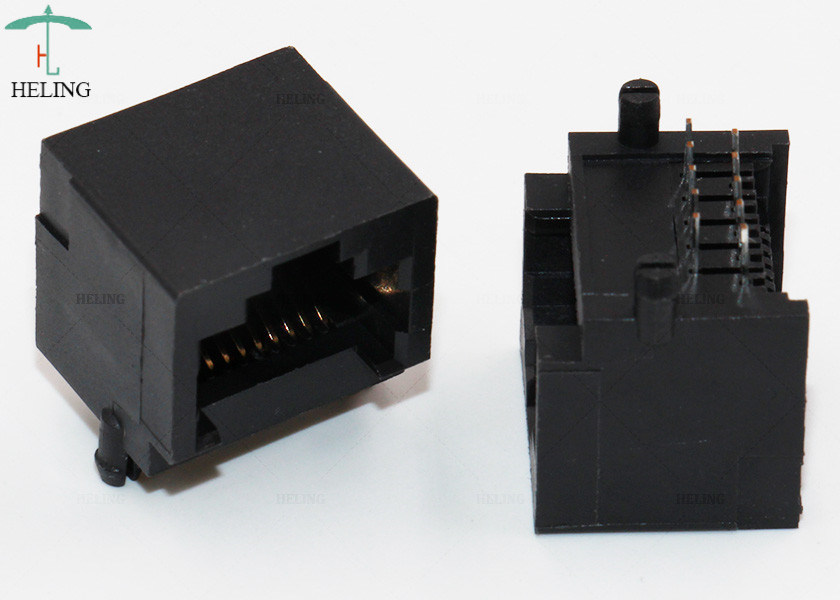

3. 10 Pin RJ45 Connector Product Image :
4 FAQ for 10 Pin RJ45 Connector
1. How long can I expect to get the sample and mass order.
Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.
2. Can you print our customized logo?
Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.
3. What is your payment terms?
Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.
4. How can I order?
Re :
1. Choose the 10 Pin RJ45 Connector you need and send us an inquiry, we will reply in 24 hours.
2. Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3. Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4. Ship your goods by DHL/FedEx/UPS, as your request.
5. Follow-up client usage status regularly and after sales service
5. If quality issues happened, what should I do?
Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.
5 Product Range of 10 Pin RJ45 Connector
Welcome OEM/ODM orders.
