Long Body 32.5mm 10P8C Integrated Magnetics RJ45 With Transformer 1000M Base - T Lan Jack R/A THT LED

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ5A-B211-RSL15T148-1
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Gender: Female Type: RJ45
Application: Neywork,Electronic Communications Led Option: Green/Yellow
Business Type: Manufacturer Rj45 Connector Speed: 10/100/1000 Base-TX
High Light:

magnetic rj45 jack


magnetic modular jacks

Product Description

Long Body 32.5mm 10P8C RJ45 with Transformer 1000M Base - T Lan Jack, R/A, THT, LED


1, RJ45 with Transformer customized requirements are accepted:


1 , with or without transformers

2 , with or withour PoE function

3 , Customized length of Pin

4 , Customized housing color

5 , Customized contact area gold plating

6 , Customized LED Indicator color

7 , Customized Logo printing

 2, RJ45 with Transformer specification:

Long Body 32.5mm 10P8C RJ45 with Transformer 1000M Base - T Lan Jack, R/A, THT, LED
Part Number:  MJ5A-B211-RSL15T148-1
Product Family: 1 x 1 RJ45 with Transformer
Overview: RJ45 with Transformer 1x1 ports
1x1 ports RJ45 with Transformer, Side Entry, THT
Operating temprature range: -40℃-70℃
General- RJ45 with Transformer
Series: 1 x 1 RJ45 with Transformer
Numbers of ports: 1 x 1
Orientation: Side Entry RJ45 with Transformer
Pin type: THT solder
Positions/ Loaded contacts: 10P8C
Latch: Tab up
Shielded: Yes
Jack Height: 12mm
Magnetic: Yes
Performance category: Cat 5e
Power over Ethernet(PoE): Non-PoE
Physical - RJ45 with Transformer
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 1u"/3u"/6u"/15u"/30u"/50u"  optional
Net Weight: TBA
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
Turns Ratio RX: /
Turns Ratio TX: /
Configuration RX: /
Configuration TX: /
RoHS compliant: YES, RoHS AND Halogen-Free
Electrical - RJ45 with Transformer
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES

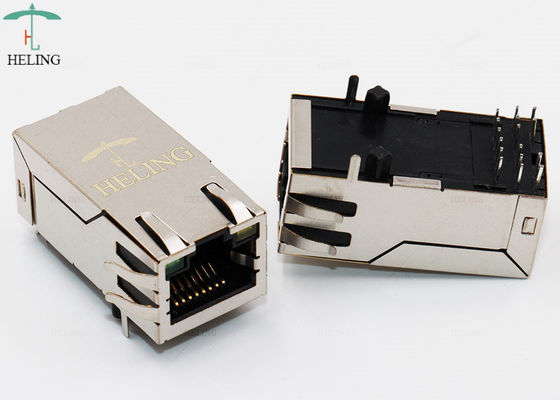

3, RJ45 with Transformer Product Image :

Long Body 32.5mm 10P8C Integrated Magnetics RJ45 With Transformer 1000M Base - T Lan Jack  R/A THT LED 0



4 FAQ for RJ45 with Transformer

1, How long can I expect to get the sample and mass order.

Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.

2, Can you print our customized logo?

Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.

3, What is your payment terms?

Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.

4, How can I order?

Re :
1, Choose the RJ45 with Transformer you need and send us an inquiry, we will reply in 24 hours.
2, Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3, Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4, Ship your goods by DHL/FedEx/UPS, as your request.
5, Follow-up client usage status regularly and after sales service

5, If quality issues happened, what should I do?

Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.


5  Product Range of RJ45 with Transformer

  • Offset/Overhangs RJ45 with Transformer
  • 100/1000 base - T Integrated RJ45 with Transformer
  • Low Profile RJ45 with Transformer
  • RJ45 with Transformer Through Hole Connector
  • Single Port RJ45 with Transformer
  • 1xN RJ45 with Transformer
  • 2xN RJ45 with Transformer
  • PoE RJ45 with Transformer
  • RJ45 with Transformer + USB/HDMI
  • RJ45 Ethernet LAN Transformer

Welcome OEM/ODM orders.
